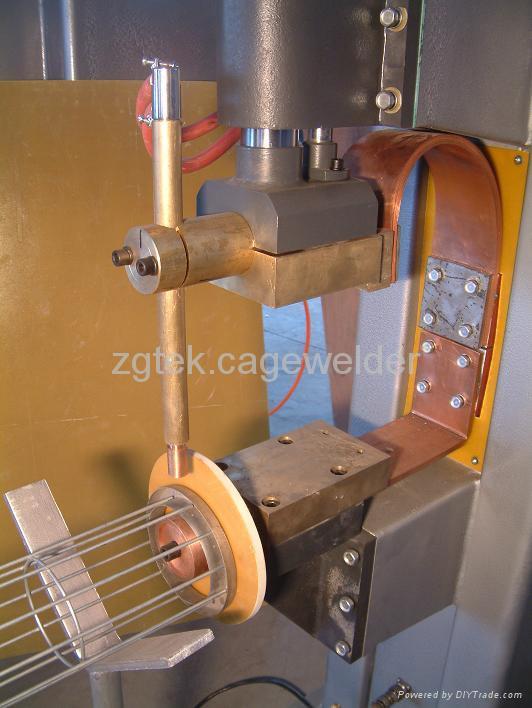

ZGTEK Top collar  welder is used to weld the top cover(cap) to filter cage body. It ask high of the welding machine so as to make the top cap horizontal.(Top cap is steel cap)

ZGTEK "Cage welding machines" is used to make filter bag cages, which used in dust
collector (baghouse) to support filter bags. We are a professional manufacturer, only focus on
manufacturing cage welding machine line. Feature: CNC control; Ring space is programmable
and cage is pulled by step motor; Ring space precision is 0.1mm; Pulling speed is 0.4m/s.

We provides leading technologies in filter bag cage welding industry, from a stand alone
machine to a whole automated line, with world class flexibility, quality and cost-efficiency.
1. The six machines are basic configuration of a cage welding line.
1) 16 or 24-vertical wires cage body welding machine DLN-24/DLN-16,
2) Ring making machine R-6-400/DQ1000K,
3) Air-operated butt welding machine UR-40,
4) Top cap welder DS-80,
5) Bottom cap welder DX-80,
6) Wire straightening machine TZ2.8-5,
2. Type of cage: Round cage, Oval (flat) cage, Star cage, Split cage, etc.
Cage size: dia.100-200mm
Steel wire of Cage: Mild steel wire, Stainless steel wire, Galvanized carbon steel wire,etc.
Steel wire thickness: 2.5-5mm
3. Requirements of one complete production line:
1) Workshop: 10m*20m
2) Power capacity: 45-50KVA
3) Workers: 5 people for a running line
4. Output
For example: Filter cage: 24 vertical wires * 6000mm Length, Ring distance: 50-200mm.
Daily output: 250pcs (10hours/day)
Annual output: 70000pcs (280days)
We have already exported our machines to Asia, US, and Europe, many customers come
back to order more lines.
For more information, please feel free to contact us.
