| Model: | CAMA-Mini100 |
|---|---|
| Brand: | CAMA |
| Origin: | Made In China |
| Category: | Security & Protection / Access Control System |
| Label: | fingerprint reader , access control , Biometric reader |
| Price: |
-
|
| Min. Order: | 10 pc |
| Live Chat: |  | Last Online:02 Mar, 2016 |

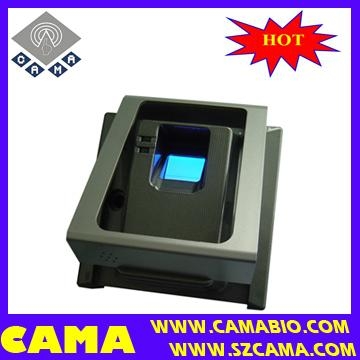

| CAMA new generation compact fingerprint access control reader features fashionable compact design, easy operation, fast verification speed and comfortable fingerprint collecting window. Optical total reflection fingerprint sensor 1:N verification and 1:1 identification function Self-learning function of the fingerprint features CPU: STM32F103RDT6（ARM 32-bit Cortex-M3）72MHz, 384KB Flash, 64KB SRAM Sensor: CMOS image sensor: HV7131, optical total reflection Scan Area: 20mm X 22mm Fingerprint image: 210 x 250 (pixel) Fingerprint capacity: 2000(extensible) FAR: < 0.001% FRR: <0.1% Identification speed: 1:1 <0.5S; 1:N (500 fingerprints) <0.9S Work Supply: DC 3.6V~7.5V Work Current: < 100mA; Standby Current: < 20μA Work temperature: -10 ℃- 60 ℃ Work humidity: 20%– 80% Dimensions of reader: 86*86*36mm Dimensions of access control: 105*83*25mm |
