Model: | K1 |
---|---|
Brand: | TOP |
Origin: | Made In China |
Category: | Industrial Supplies / Tools / Hand Tools |
Label: | semi rotary pump , hand wing pump , semi rotary handpump |
Price: |
US $1
/ pc
|
Min. Order: | 100 pc |
Live Chat: | Last Online:11 May, 2018 |
Model | K00 | K0 | K1 | K2 | K3 | K4 | K5 | K7 |
Size In Inches | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/4" | 1-1/2" | 2" |
Weight(kg) | 3.2 | 5.1 | 6.1 | 8.8 | 11.5 | 12.6 | 16 | 32 |
Weight(Lbs) | 7.0 | 11.2 | 13.4 | 19.4 | 25.4 | 27.8 | 35.3 | 70.5 |
Double Strokes(per min) | 80 | 65 | 60 | 55 | 50 | 50 | 45 | 40 |
Capacity(LPM) | 7.5 | 11.5 | 17.25 | 22.5 | 29 | 43.25 | 53.5 | 90 |
Capacity(GPM) | 1.65 | 2.5 | 3.75 | 5 | 6.5 | 9.5 | 11.75 | 19.8 |
Delivery(Max m) | 25 | 25 | 25 | 25 | 22 | 22 | 20 | 15 |
Delivery(Head Feet) | 82 | 82 | 82 | 82 | 72 | 72 | 66 | 49 |
Suction Distance(m) | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
Pieces Per Cases | 30 | 30 | 25 | 15 | 10 | 8 | 6 | 3 |
G.W.KGS/Case | 117 | 174 | 174 | 153 | 136 | 122 | 117 | 117 |
N.W.KGS/Case | 96 | 153 | 153 | 132 | 115 | 101 | 96 | 96 |
Packing Size(cm) | 100*46*46 | 100*46*46 | 100*46*46 | 100*46*46 | 100*46*46 | 100*46*46 | 100*46*46 | 100*46*46 |

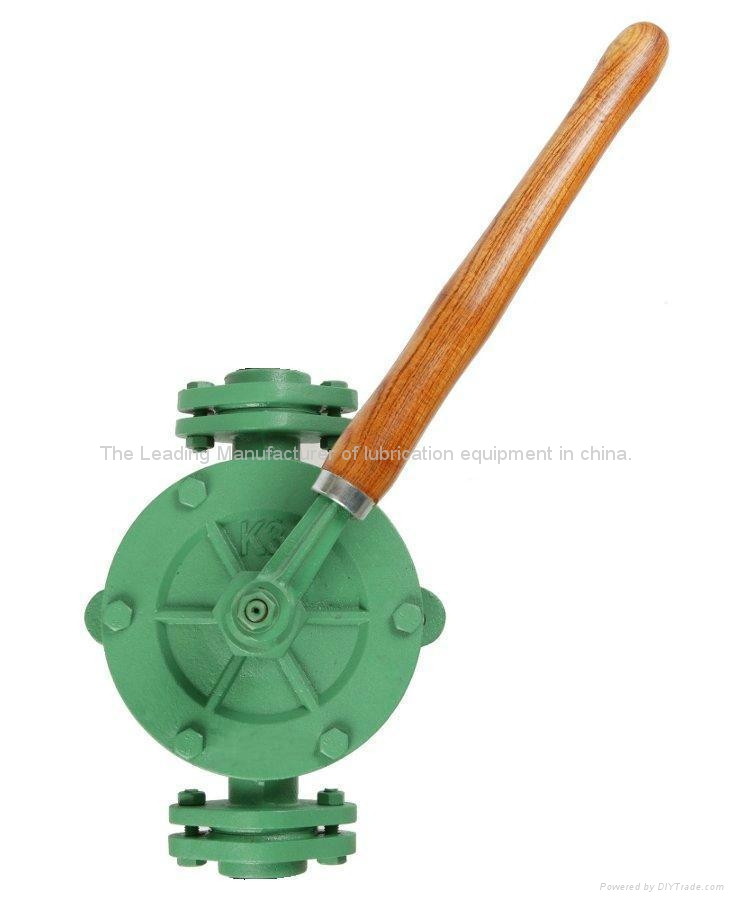

Semi Rotary Pump
The 'K' Pump incorporates many original technical features which make it the best of its type.
1.Reinforced inlet, discharge and lugs - prevent breakage even if subjected to rough treatment.
2.The tapered internal body - this unique technological advantage assures automatic settlement of the wings in the body and guarantees smooth efficient operation even after years of usage.
3.A frost plug - allows water to be drained if there is a risk of frost.
Thorough quality control - each pump is individually tested to a suction lift of 7m of water and 20m of delivery head.
