Multi-Purpose Machine SHHQ400(SHHQ400/1)
Product Description
Multi-Purpose Machine |
|
Model |
SHHQ400(SHHQ400/1) |
TURNING |
|
Swing over bed |
φ420mm |
Distance between centers |
400mm |
Max. longitudinal travel |
380mm |
Max. cross travel |
120mm |
Taper of spindle |
M.T.3 |
Spindle hole |
φ20mm |
Step of spindle speed |
3 |
Range of spindle speed |
500,900,1600r.p.m |
Barrel travel |
70mm |
Taper of center |
M.T.3 |
DRILLING & MILLING |
|
Max. drilling capacity |
φ15mm |
Worktable size (L*W) |
200×150mm² |
Max. end mill capacity |
φ20mm |
Max. face capacity |
φ63mm |
Spindle travel |
85mm |
Headstock travel of up and down |
HQ400/1:80mm |
Spindle taper |
M.T.3 |
Step of spindle speed |
6 |
Range of spindle speed |
375-1600r.p.m |
Swivel angle of headstock |
±360° |
MOTOR |
|
Motor power |
0.55Kw |
Voltage/Frequency |
As customers’ requirement |
SHIPMENT DATA |
|
Packing size |
1030×580×1070mm |
N. weight/G. weight |
155kg/185kg |
Loading amount |
44pcs/20’container |

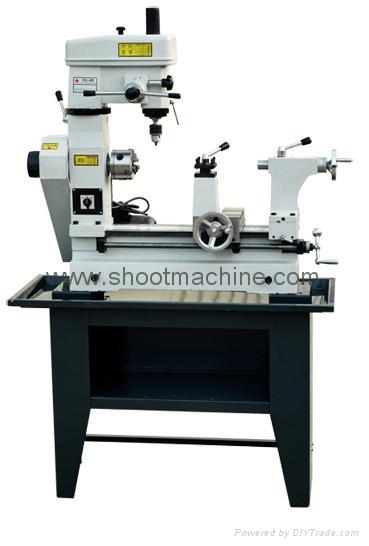

Product Image
Img 1
