Full Servo Baby Diaper Machine

Model:JWC-NK550-SV
Brand:JWC
Origin:Made In China
Category:Industrial Supplies / Paper Machinery
Label:BABY DIAPER MACHINE , BABY DIAPER , DIAPER MACHINE
Price: -
Min. Order:-
Inquire Now Add to Basket

Member Information

Detail

Jiangsu JWC Machinery co.Ltd

Biz MemberJiang Su - China
Live Chat:点击这里给我发消息Last Online:14 Oct, 2020

Product Description


Specifications:MODEL JWC-NK550-SV
Designed speed 280M/min
Stable speed 550pcs/min
Qualified rate 98.5% (qualified products to gross output products within 7.5 hours)
Efficiency ≥85%(actual output to standard output within 7.5 hours)
Installation capacity 280KW (including glue applicators)
Practical capacity 220KW (including glue applicators)
breaker 600A
Electricity 3 phase 4 lines 380v±5%,50HZ(ground)
Cable 3×120 mm2+1×50 mm2+1×25 mm2
Air compressor >0.6Mpa, 2.2 m3/min, 22kw(for reference)
Total weight 80T
Noise <85db (A)
Machine size 32×8m×3.5m
Working size 36m×12m×4m
Product size S, M, L, XL, XXL
Product length 580mm(XXL) 540mm(XL) 500mm(L) 450mm(M) 390mm(S)
Container 4×40HQ+1×20GP
Advantages:1.Sawmill crushing machine can crush untreated pulp, half-treated pulp and treated pulp. Pulp feeding is controlled by convertible frequency.
2.Upper sanitary paper supplied, center auto-unwinding, constant tension control and automatic feeding
3.Cotton core formed by double net wheels
4.SAP adding device and quantity can be adjusted. Controlled by convertible frequency
5.Knurling and compacting core device are provided
6.Down sanitary paper supplied by cutting and transferring, constant tension control, center auto-unwinding and automatic feeding
7.Cotton core is cut down
8.Standing cuff, constant tension control auto-wind and automatic feeding, deviation rectifying guide
9.Back sheet film supplied, center auto-unwinding, constant tension control and automatic feeding, deviation rectifying guide
10.Frontal waist tape supplied, shut down and transferring
11.Elastic supplied and auto-unwinding
12.Surface absorbing cotton core, back sheet compound and compacted
13.End and side sealed by hot pressure
14. Side elastic embossing
15. Right and left elastic band supplied, center auto-unwinding, constant tension control and automatic feeding
16. Elastic right and left band embossing
17. Right and left waist tape supplied, cut down and transferring
18. Right and left elastic band cut down and transferring
19. Products are folded longitudinally and compacted
20. Products are cut finally
21. Products are rejected automatically
22. Products are tri-folded
23. Products are output
24. Driving system
25. Pneumatic system
26. PLC controlling system
27.Touchable screen
Payment Details:T/T,T/C,D/P
Min Order:1set
Ship Date:40-100 days
Standard Met:ce

Product Image

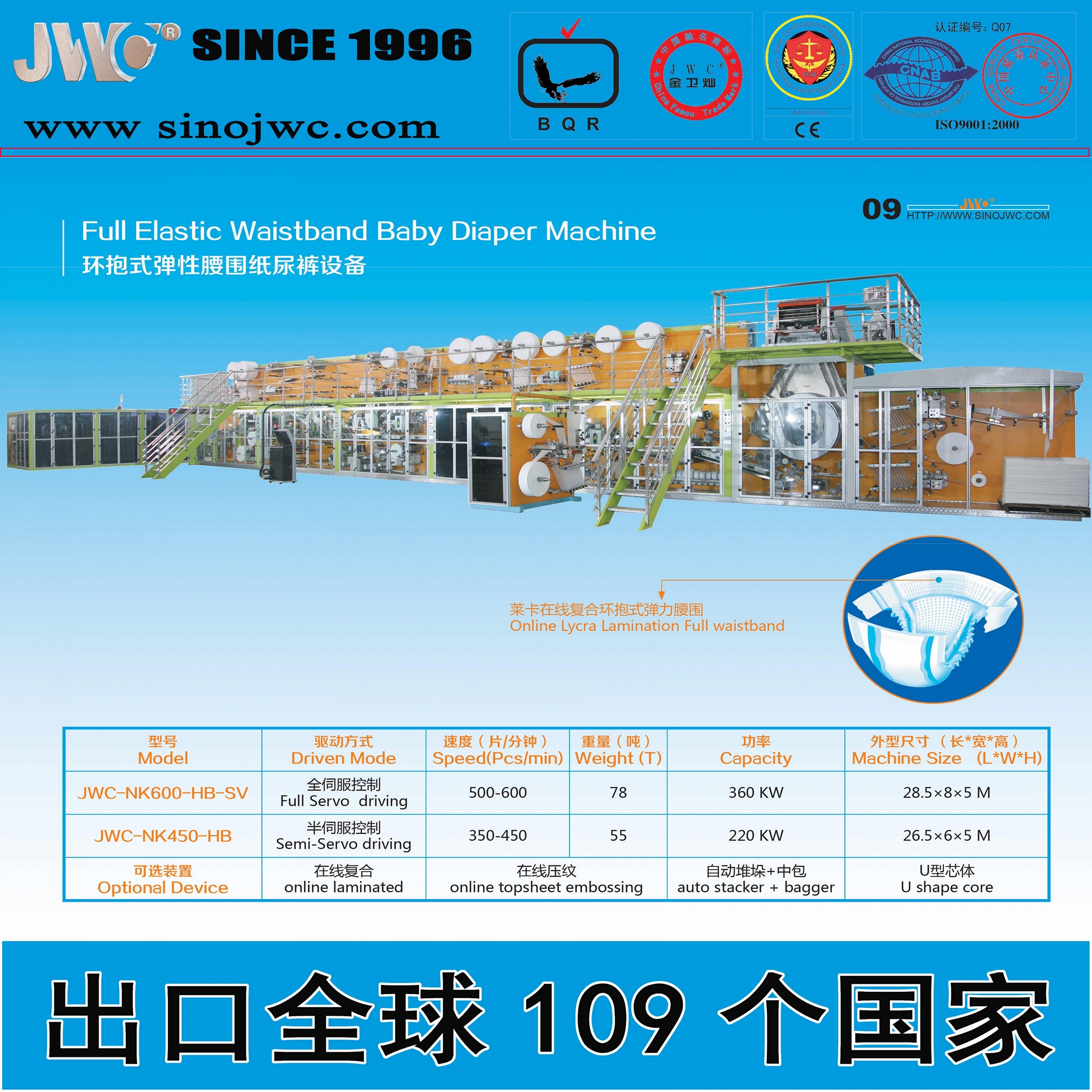

Full Servo Baby Diaper Machine 1
