24VAC 10Amp 18 Channel metal boxed CCTV power supply / Camera Box Power24VAC10A18P
Description:
24VAC10A18P:1 in 18 Out 24VAC 10Amp Boxed CCTV Power Supply
The CCTV power supply is primarily designed for WUF-GV, PTZ and camera of CCTV system. It’s also used for access, building/house control, intrude alarm and other light-current. It is for desktop or wall-mounted installation.
Features:
ￚ Power up to 18 CCTV CCTV surveillance cameras
ￚ 24 Volts AC
ￚ 10 Amp total output
ￚ Max output current up to 1.1 Amp/Channel
ￚ 18 individually PTC auto-reset fuses protected outputs
ￚ Integral surge protection
ￚ Individual LED power indication
ￚ Individual PTC reset-able fuses
ￚ Internal On/off safety power switch with LED indicator

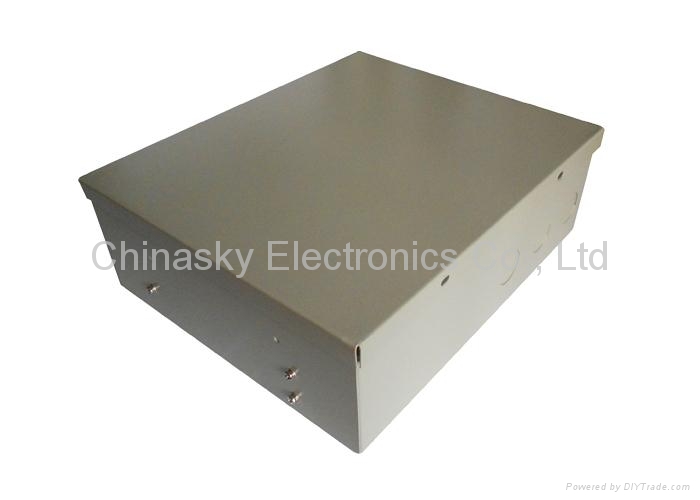

ￚ Beige metal housing
Technical specifications:
|
Model |
24VAC10A18P |
|
|
Power |
240W |
|
|
Metal Case Dimension |
28×20.8×8.7cm |
|
|
Net Weight |
4.52kgs |
|
|
Input |
Input Voltage |
110/220VAC |
|
Input Voltage Frequency |
50Hz-60Hz |
|
|
Output |
24VAC±5% |
|
|
Output Current |
10A, 18 channels for 18 sets load |
|
|
Fuse |
Type /Rating |
PTC 1.1A/60V |
|
|
Over Current Protection |
When over current occurs, the corresponding channel output will automatically switch to self-protection status, and the other channels output will work normally. When the fault is cleared, it will switch back to normal. |
|
Short-circuit Protection |
When short-circuit occurs, the individual PTC fuse will break the circuit. When the fault is cleared, it will switch back to normal automatically. |
|
|
Circumstances |
Working Temperature |
0℃-+40℃ |
|
Storage Temperature |
-20℃-+85℃ |
|
|
RH |
5%-95% |
|
|
Heat Release |
Natural heat dissipation |
|
|
Connection |
Input |
Three-pin socket |
|
Output |
18 channels output |
|
Competitive Advantages:
ￚ This is one of the best 24VAC CCTV power supply boxes on the market for security cameras.
ￚ We replace the cheap "glass fuse" with "PTC" Reset Fuses which will Auto Reset after you fix the short. You don't have to run around town try to find the replacement fuses. All you have to do is to fix the shorts.
ￚ The red light shorts indicator helps you to know which camera is not working.
ￚ Dependable and long lasting
ￚ Warranty: 2 years
