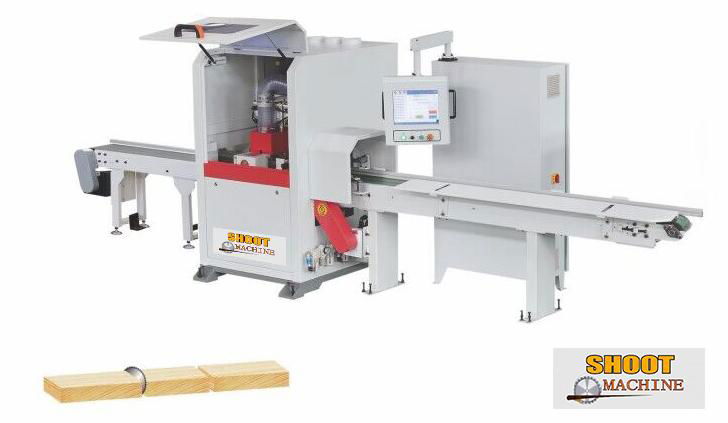

Optimal saw optimization mode,SH-S200
Product Description

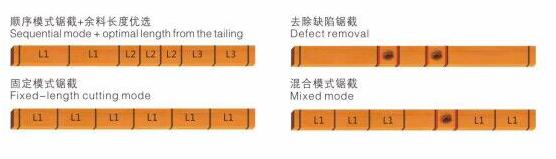

| Optimal saw optimization mode |
| Fixed Length: 1) Saw according to list size |
| Fixed length + drawing line: 1) After sawing and drawing line + single fixed length size; 2) In order to save wood, you can choose to combine the fixed length wood less than 150mm, which is suitable for finger joint panel use. |
| Defect sawing: only sawing where the wood is drawn |
| Model |
SH-S200 |
| Working width |
20-200mm |
| Working thickness |
12-80mm |
| Max.cuting size |
120x80mm |
| Length of feeding work table |
3000mm |
| Nomber of feeding work table |
3000mm |
| Width of work table |
300mm |
| Min ingoing length |
400mm |
| Feeding table width |
80m/min |
| The number of feeding wheels of the main engine |
6 groups |
| Saw blade motor power |
455mm |
| Saw shaft speed |
3500r/min |
| Saw blade motor power |
5.5kw |
| Sawing up and down movement frequency |
2-4 times/1 second |
| Lift motor power |
3kw |
| Feed motor power |
3kw |
| Out feed motor power |
0.75kw |
| Pressing wheel lift motor power |
0.18kw |
| Total power |
12.43KW |
| Air Tolerance |
1000NL/min |
| Air Pressure |
0.6mpa |
| Diameter of dust extrance |
Ф140mm/x3 |
| Exhaust speed |
30m/s |
| Weight |
1500KG |
| Dimensions |
7000x1200x1800mm |
Product Image
Img 1
Img 2
