| Model: | DB010BR |
|---|---|
| Brand: | - |
| Origin: | Made In China |
| Category: | Construction & Decoration / Door & Window Hardware / Bolt |
| Label: | flush bolt , manual door bolt , lever extension bolt |
| Price: |
US $4.3
/ pc
|
| Min. Order: | 200 pc |
| Live Chat: | Last Online:13 May, 2024 |

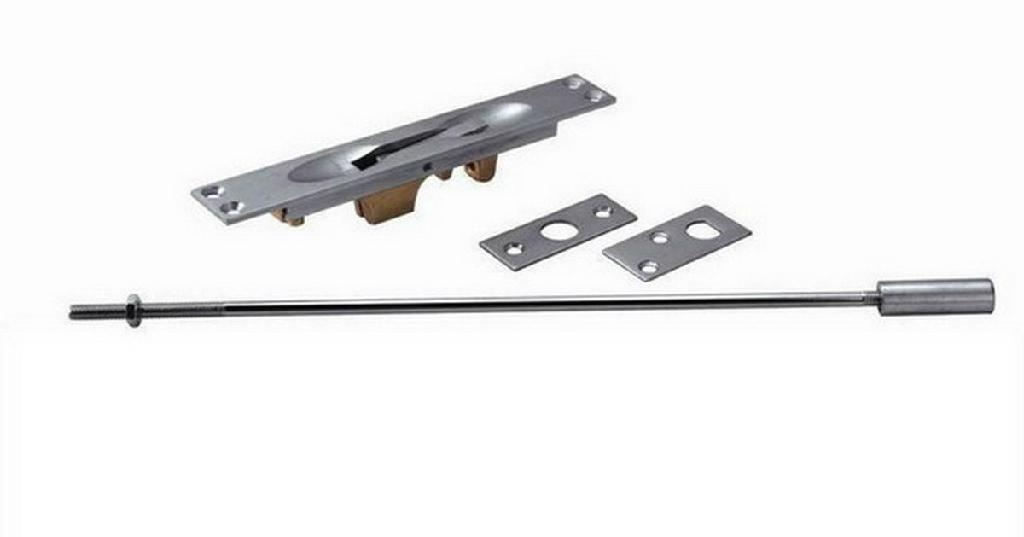

Solid Extension Flush Bolt
Material: Solid brass, with chrome plated steel/stainless steel rod, SS304/brass strike plate, brass head, and steel head available on request.
Size: Panel face 1" (25.4mm) x 6-3/4" (171.5 mm or 172 mm),
Bolt-1/2" (12.7 mm)
Rod Backset -3/4" (19mm)
Keeper - 1" x 2 1/4" (25.4 x 57.2 mm)
Guide - 7/8" x 2 1/4" (22.2 x 57.2 mm)
Standard extension rod length - 12" or 300mm, 8", 10" and others on request.
Finish: satin chrome (US26D) and satin brass are standard, others on request.
Application: metal doors, wood doors, fire-rated.
OEM and customized request is welcome.
Note: Length measured from center of operative lever to end of bolt when in retracted position. Galaxy Hardware keeps rights of change of any details including sizes without notice previously, please inquiry with our sales person before orders.
