| Model: | YW110/196/358 |
|---|---|
| Brand: | Zhongke Meiling |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Refrigeration & Freezers |
| Label: | Deep freezer , Ultra low freezer , Medical freezer |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:07 Jun, 2017 |

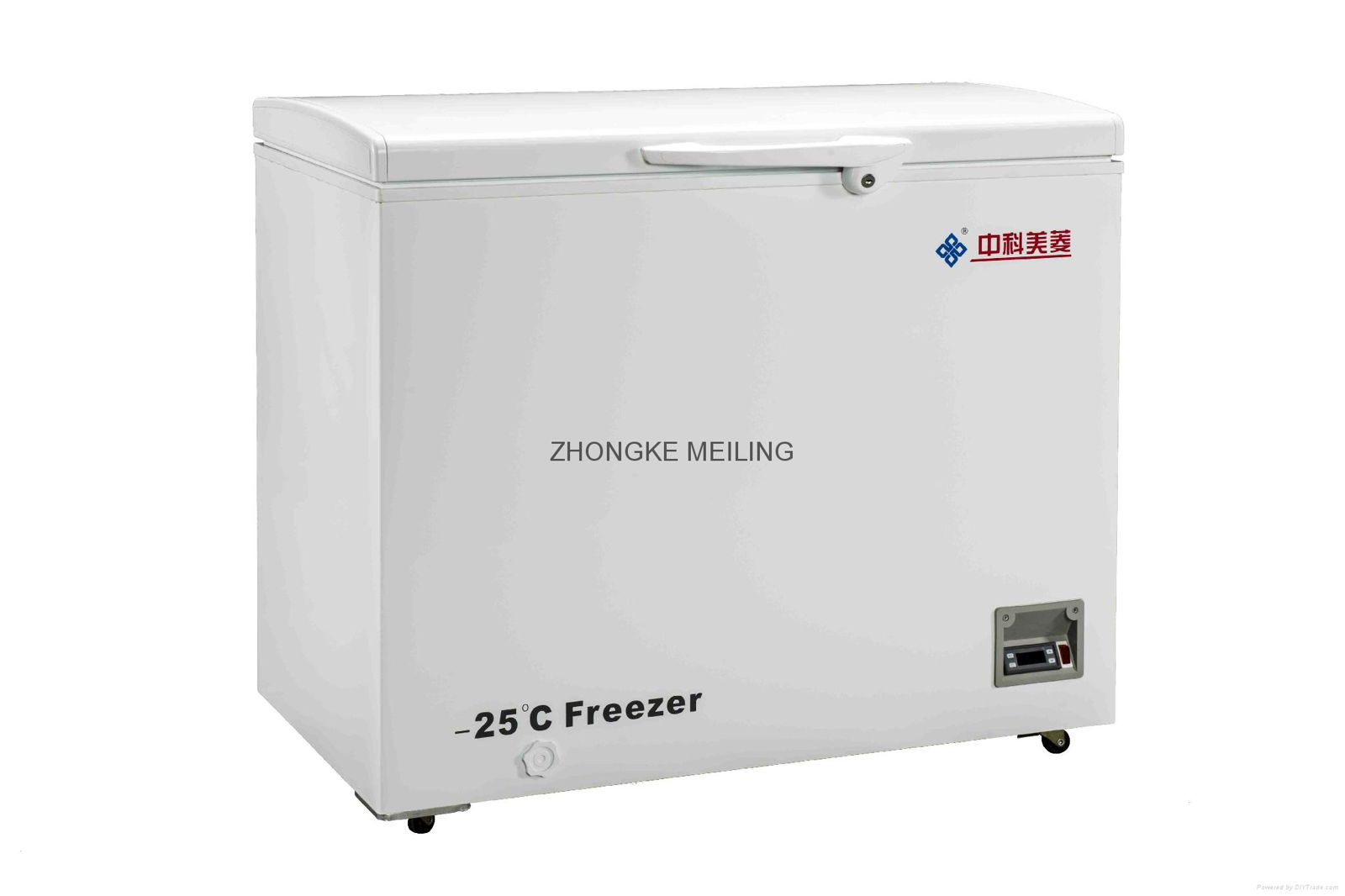

-10°C~-25°C Chest freezer
DW-YW110/166/196/226/358/508
The Medical Freezer offers effective storage of ice floe, plasma, reagent and other goods which need to be frozen. It is suitable for hospitals, clinics, sanitation and anti-epidemic stations, blood banks, university laboratories, restaurants and bars.
l Microprocessor controller, temperature range: from -10°C to -25°C, can be set freely.
l LCD display, to make clear the temperature information.
l Perfect audible/visual alarm.
l Chest type, out body is painted steel board.
l 4 units Caster provided for easy handing
l Top door with lock.
Technical data
| Model | DW-YW110A | DW-YW166A | DW-YW196A | DW-YW226A | DW-YW358A | DW-YW508A |
| Storage volume | 110L | 166L | 196L | 226L | 358L | 508L |
| Temperature Rating | -25°C adjustable | |||||
| Electrical Power | 220V,50/ 60HZ, 110V,50/60HZ | |||||
| Refrigerating System | International famous compressor and Germany EBM fan motor. | |||||
| Input Power | 120W | 140W | 145W | 166W | 183W | 275W |
| Average Power | 60W | 70W | 72.5W | 83W | 91.5W | 137.5W |
| Refrigerant | R134A | |||||
| Controller | Microprocessor Control with LED Displayer | |||||
| Alarms | High/ low temperature alarm, Door open alarm, Sensor failure alarm, Power failure alarm | |||||
| Accessories | Remote alarm system | |||||
| Certificate | ISO, TUV | ISO, TUV | ISO, TUV | ISO, TUV | ISO, TUV | ISO, TUV |
| External Size(cm) | 55*59*86 | 88*61*84 | 104*56*93 | 116*60*98 | 120*70*94 | 159*84*86 |
| Package Size(cm) | 63*64*90 | 99*59*100 | 18*60*110 | 118*66*112 | 127*76*113 | 165*86*107 |
| Net Weight(KGS) | 35 | 38 | 40 | 43 | 60 | 71 |
| Gross Weight(KGS) | 42 | 45 | 48 | 52 | 70 | 83 |
| 20" container | 60 | 36 | 30 | 24 | 24 | 18 |
| 40" container | 120 | 72 | 60 | 48 | 48 | 36 |
