Product features

1. General compact single phase filter with rapid terminals, bolts or connection type to choose from Easy to install;

2. High cost performance, a variety of circuit structure change, can match with different load design. Have a variety of shapes, circuit diagram and parts

Parameters matching, for customers to choose, it is suitable for current 1 a - 200 - a;

3. Suitable for switching power supply, UPS, banknote counter, embroidery machine, oiling machine, engraving machine, controller, industrial computer,

Scientific analysis instrument and other power electronic equipment and frequency conversion equipment.

The product description

Technical parameters:

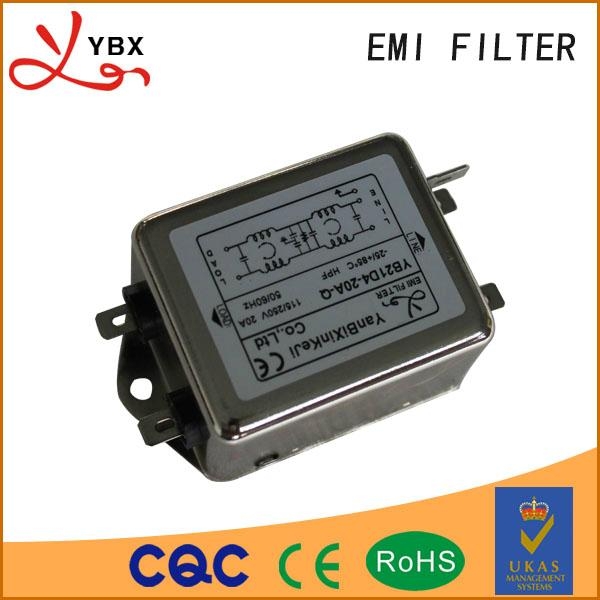

Type power supply filter

Model YB - D

Low pass filter filtering technology

Nominal center frequency 10 k - 30 MHZ

60-90 db insertion loss

The input impedance of 50 Ω

Rated voltage 110/220 125/250 vac vac

Rated current 3 a 6 a 10 a 15 a 20 a

Temperature range 25/85/21

Working frequency 50/60 hz

High pressure rating: line to line 1450 VDC

High pressure rating: line of 2250 VDC or 2000 vac

Maximum leakage current 115 vac / 60 hz 0.4 mA Max. 250 vac / 60 hz 0.8 mA Max

Minimum quantity of 80 PCS

The price

5-15 working days of delivery cycle
