Product Description
AC SERVER DRIVER --GTAS-50A SPECIFICATION:
>Input power: Single or 3pH AC220V, -15-+10%, 50/60Hz
>Operating temperature: 0-40deg (no freezing), bellow 80%RH (no dewing)
>Storage/delivery temperature/humidity: -40-50deg, bellow 80%RH (no dewing)
>Atmosphere environment: 86-106kPa
>Control mode: 1. Position control 2. Speed control 3. Torque control 4. JOG running
>Control input: 1. Servo ready output 2. Servo alarm output 3. Positioning finish output/speed reach to output
>Position control: Input mode: 1. Pulse + Sign 2. CCW pulse/CW pulse 3.2pH A/B perpendicular pulse
>Electric gear: 1-32767/1-32767
>Feedback pulse: 2500 lines/rpm
>Speed control: 4 kinds of internal speed
>Acceleration function: Parameter setting 1-10000Ms/1000r/min
>Monitor function: Revolution, current position, instruction pulse accumulation, position deviation, motor torque, motor current, linear speed, rotor absolute position, instruction pulse frequency, running status, input output terminal signal etc.

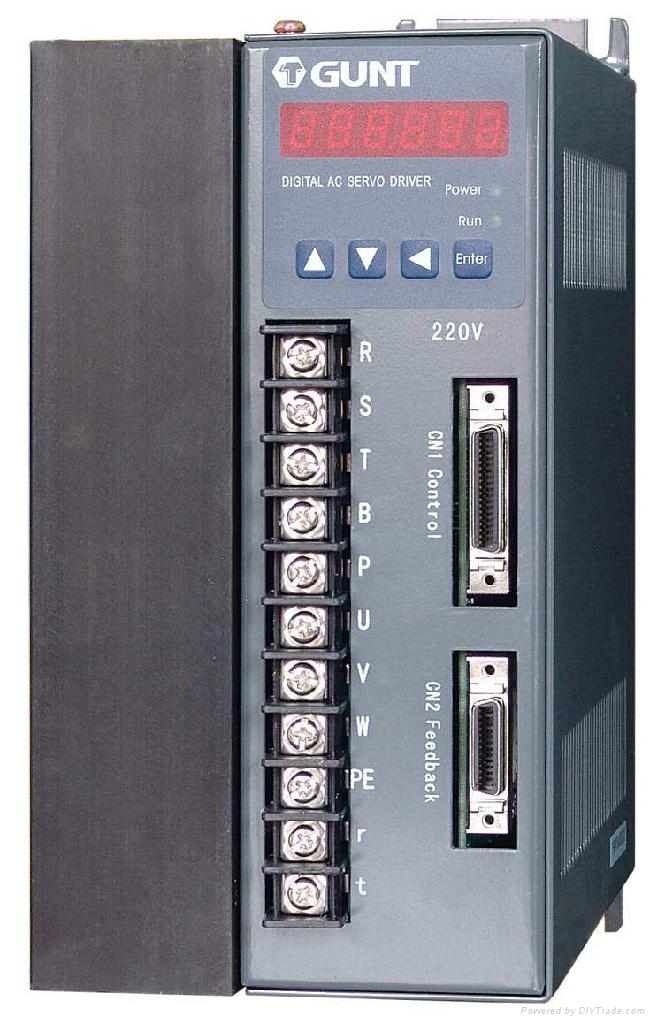

Product Image
Img 1
