High Gain GPS Embedded Antenna 1
  • High Gain GPS Embedded Antenna 1

High Gain GPS Embedded Antenna

Model:BY-GPS-18
Brand:Beyondoor
Origin:Made In China
Category:Electronics & Electricity / Telecommunication & Broadcasting / GPS
Label:GPS antenna , Antenna GPS , Aerial
Price: -
Min. Order:-
Inquire Now Add to Basket

Member Information

Detail

Jiaxing Beyondoor Electronics Co., Ltd.

Biz MemberChina
Live Chat:
Last Online:20 Oct, 2023

Product Description

(i)Dielectric Antenna
Center FrequencyMHz):1575.42±3
VSWR:1.5:1
BandwidthMHz):±5
ImpedanceΩ):50
Peak Gain >5dBi Based on 7cm×7cm ground plane
Gain Coverage >-4dBi at –90°<0<+90°(over 75% Volume)
Polarization:RHCP
(ii)LNA/Filter
LNA Gain(Without Cable):28 dBi Typical
Noise FiguredB):1.5
Filter Out Band Attenuation (f0=1575.42 MHz)
7dB Min f0+/-20MHz ;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
VSWR <2.0
DC VoltageV):2.7/3.0/3.3/5.0/ 3.0 to 5.0 etc.
DC CurrentmA):11 Max
(iii)Mechanical
Weightgram)<80
Size(mm):36x36x7.5
Cable Length(cm):5-20
Connector:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
(iv)Environmental
Working Temp:-40℃~+85℃
Storage Temp:-45℃~+100℃
Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis

----------------------------------------------------------------------------------------

JIAXING BEYONDOOR ELECTRONICS CO.,LTD
Address: #101, Weiyi West Road, Dongzha  Economic Zone ,Jiaxing 314000,Zhejiang,China
Website:www.beyondoor.com
E-MAIL: frank@beyondoor.com
MSN:firstgps@hotmail.com
SKYPE NAME:beyondoorgps


Product Image

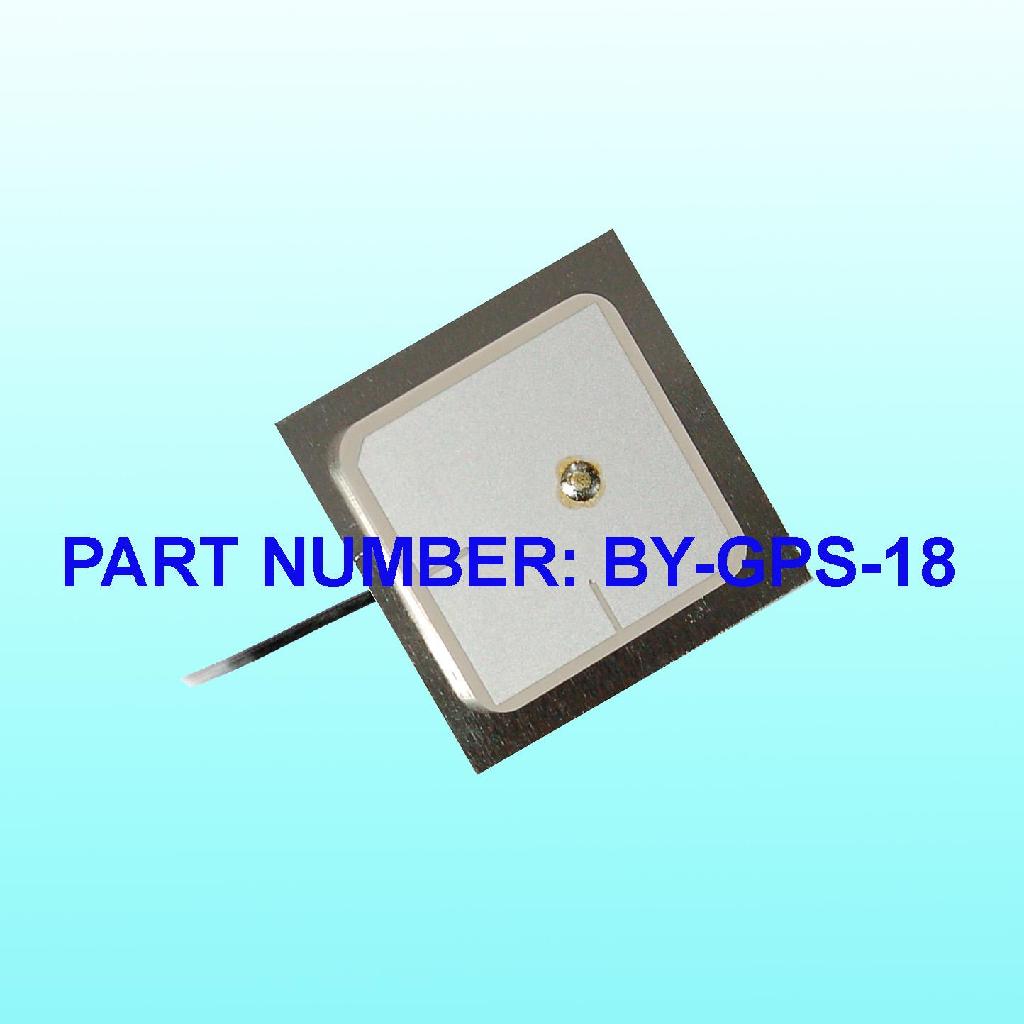

High Gain GPS Embedded Antenna 1
