| Model: | CR0131 |
|---|---|
| Brand: | Nfc Pass |
| Origin: | Made In China |
| Category: | Security & Protection / Access Control System |
| Label: | 13.56M module , ICode module , 14443A module |
| Price: |
US $15
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:13 Aug, 2019 |
|
NAME |

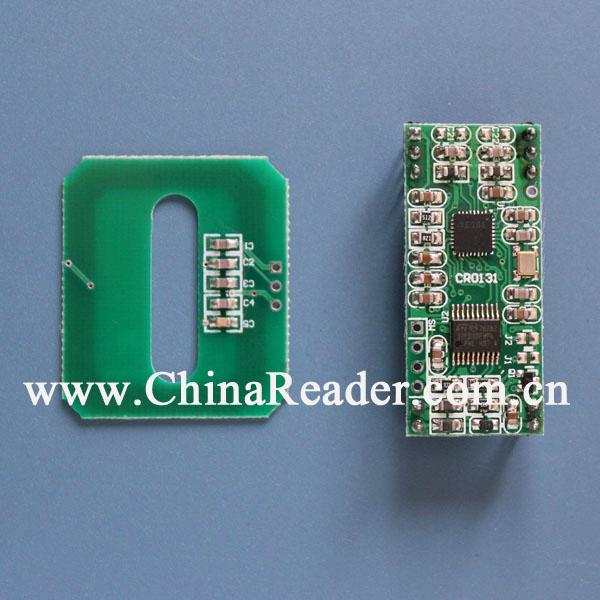

CR0131 series Proximity Reader Module |
|||
|
Weight |
12g |
|||
|
Dimensions |
42*18(mm) |
|||
|
Temperature |
-20 － +85C |
|||
|
Interface |
COMS UART |
|||
|
Read Range |
up to 10cm |
|||
|
Frequency |
13.56MHz |
|||
|
SUPPORT |
ISO14443A/B,ISO15693 |
|||
|
|
MIFARE® 1K , MIFARE® 4K , MIFARE Ultralight® , MIFARE® DESFire® , MIFARE® ro,SHC1102,SHC1104,SLE66R35,SR176,SRIX4K,AT88RF020,SLE66CL160S,SAMSUNG K8,SAMSUNG V8,I.CODE SLI,Tag IT,SRF55V01P,SRF55V02P,SRF55V10P ISO14443B contactless CPU card | |||
|
Power Requirement |
DC4.5 - 5.5V ,70ma - 120ma |
|||
|
ISP/IAP |
ISP/IAP Updata Firmware |
|||
|
|
|
|||
|
CR0131A |
CR0131B |
CR0131D |
CR0131E |
|
|
ISO14443A |
√ |
|
√ |
|
|
ISO14443B |
√ |
|
|
|
|
ISO15693 |
|
√ |
√ |
|
OEM ODM
Customized Productoin ;
