| Model: | SH6132TZG |
|---|---|
| Brand: | SHOOT |
| Origin: | Made In China |
| Category: | Industrial Supplies / Tools / Woodworking |
| Label: | sliding table saw , panel saw , cutting wood machine |
| Price: |
US $1800
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:09 Apr, 2024 |
|

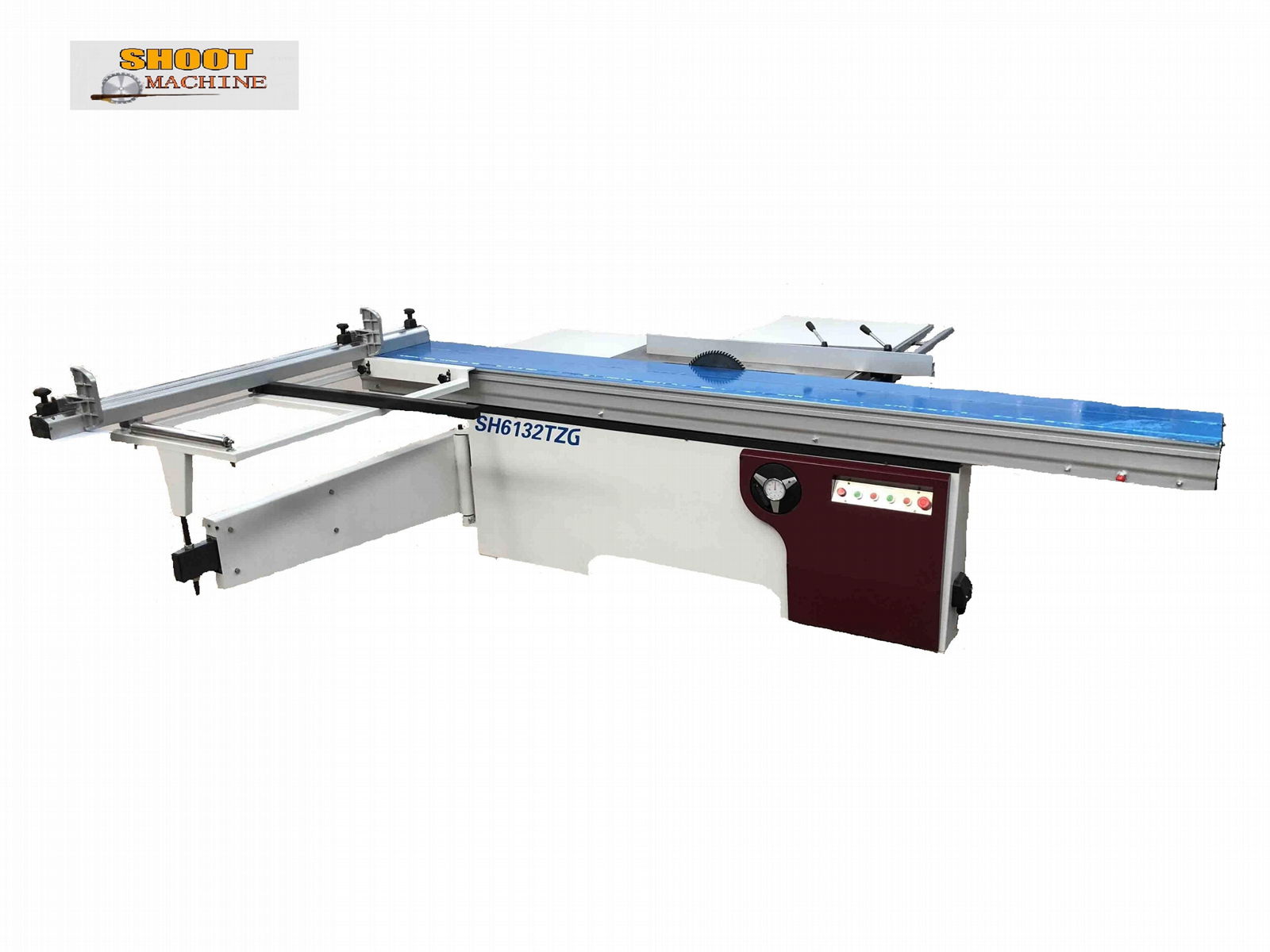

Precision Panel Saw Machine |
|
| Model |
SH6132TZG |
|
Slide worktable max distance |
3200X375mm |
| Max processing length | 2800mm |
| Max processing thickness | 70mm |
| Main saw blade dimension | Φ160×9×Φ25.4mm |
| The dimension of the main saw blade | Φ300×Φ30mm |
| The dimension of the scriber | Φ150×2.2×Φ25.4mm |
| The speed of the cutter(Main Saw Blade) | 4000、5000r/min |
| The speed of the scriber | 7300r/min |
| Motor power of cutter | 4kw(5.5HP)380V/ 1.1kw 220V(Single-phase) |
| Motor power of scriber | 0.75kw(1HP)380V/1.1kw 220V (Single-phase) |
| Weight of machine | 800kg |
| Overall dimension(L×W×H) | 2900×3080×1150mm |
| Dust-collecting mouth external diameter | Φ100(4")mm |
| Note: | |
| Rotary speed of cutter spindle | 4000 r/min |
| (fits aluminum plastic board processing) | |
| Rotary speed of cutter spindle | 5000 r/min
|
| (fits wooden products processing) | |
