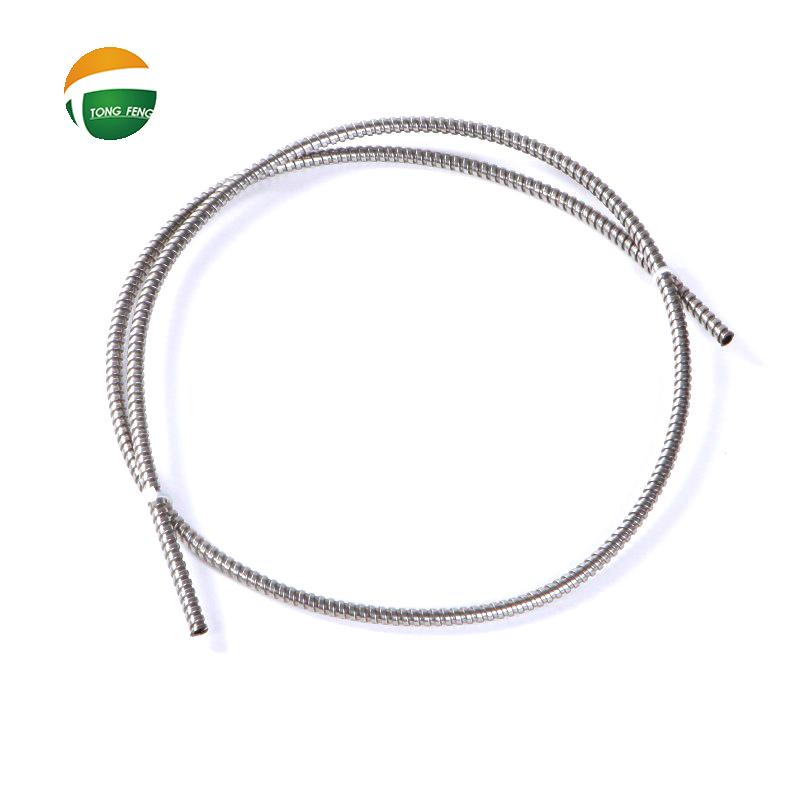

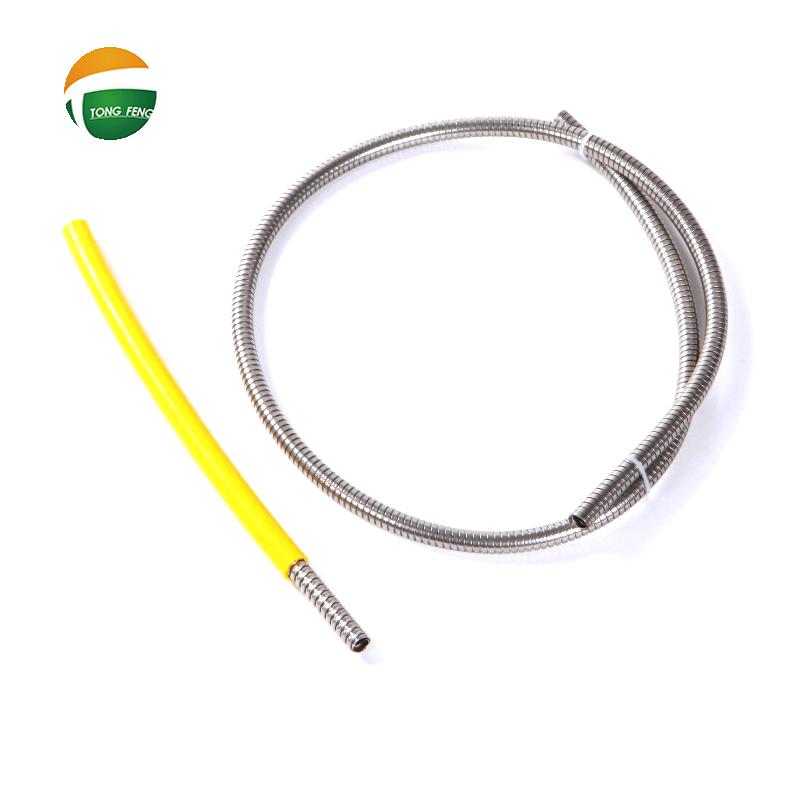

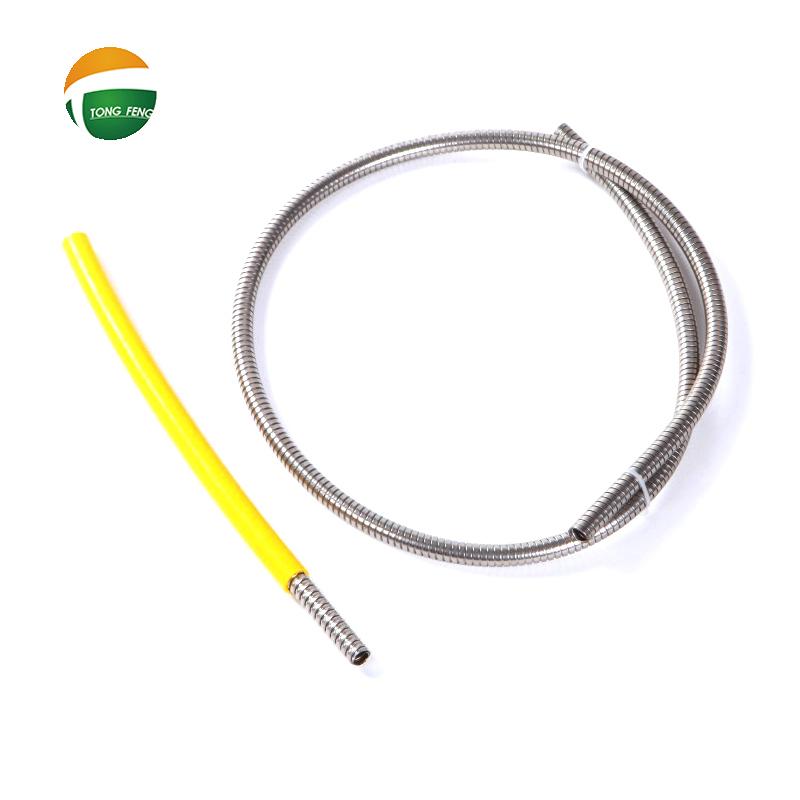

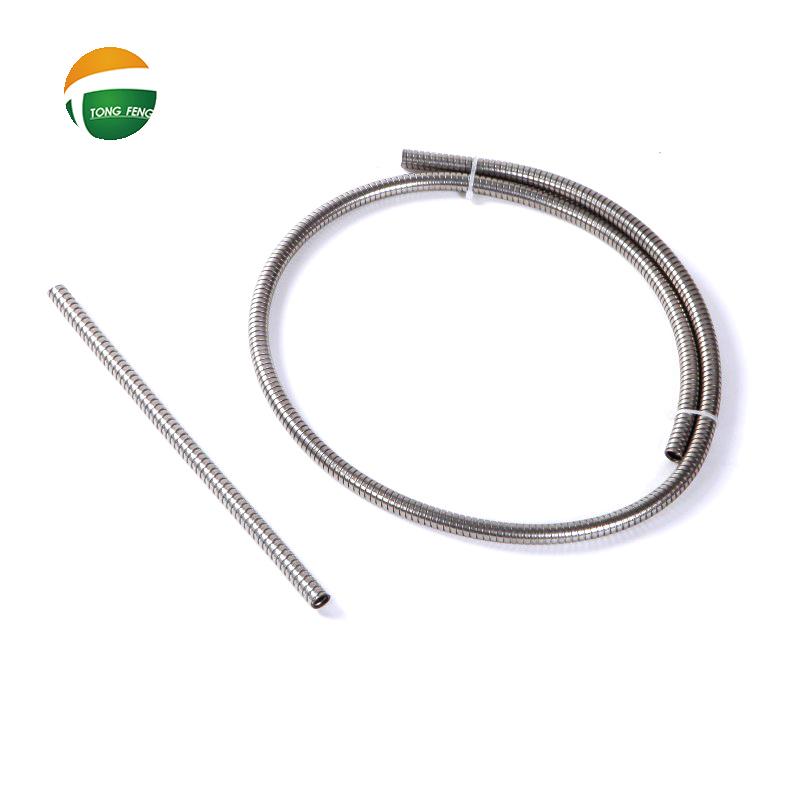

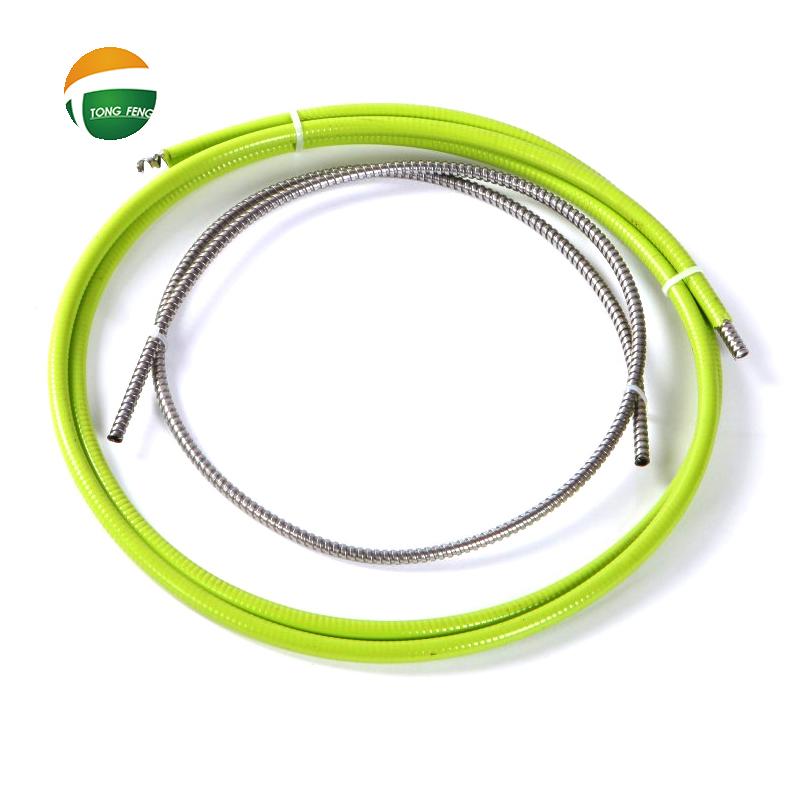

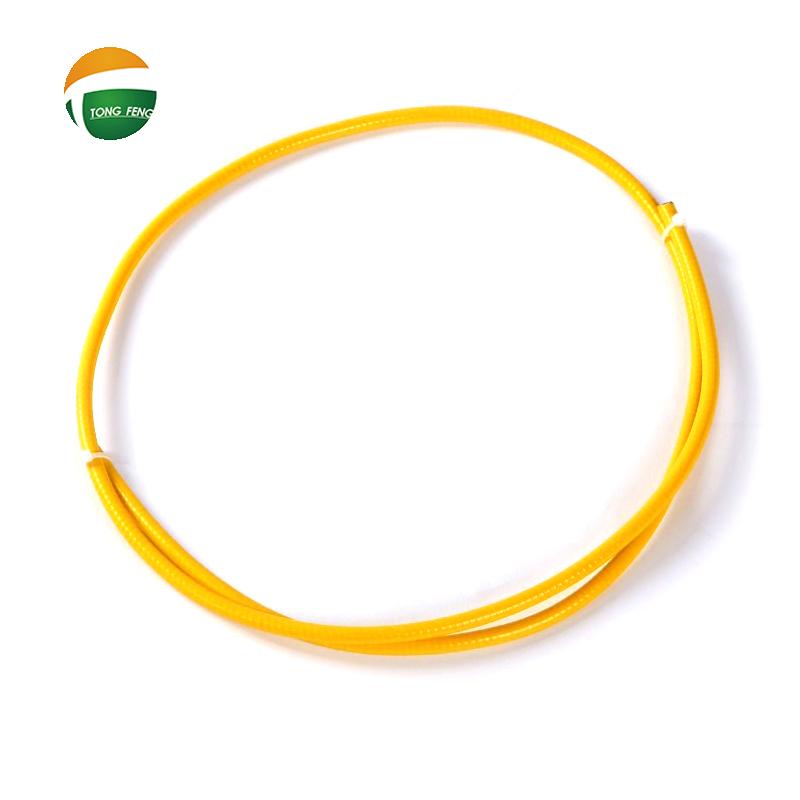

Small ID Sensors Wirings Protection Flexible Metal Conduit

Model:6mm-15mm
Brand:tongfeng flexible stainless steel conduit
Origin:Made In China
Category:Construction & Decoration / Pipe, Tube & Parts / Pipe Fittings
Label:flexible conduit , stainless steel , metal conduit
Price: US $2.5 / m
Min. Order:200 m
Inquire Now Add to Basket

Member Information

Detail

CiXi TongFeng Flexible Metal Conduit Factory

Biz MemberZhe Jiang - China
Live Chat:点击这里给我发消息Last Online:11 Jun, 2024

Product Description

TongFengflex manufactures unique tubing that is relied on in numerous industries. The tubing is produced by helical coiling of a cold-rolled metal strip onto a spindle, with the helical coils being linked with each other by means of a special type of strip profile. Basic materials for the strip are stainless steel. However, other metals are also available.
Applications:Instrumentation tubing is used by manufacturers of various industries, such as Process & Control Instrumentation, Measuring & Controlling Devices, Analytical Instruments, Medical Instruments and many others with specific applications including temperature measuring, wiring conduit or armor cable and protective casing.
Instrumentation tubing is made in two configurations, or constructions, commonly called SquareLok and InterLok, and is often abbreviated as SL and FI.
Technical Data: SquareLok Style (SL)
SquareLok tubing is produced from a continuous metal strip, and is held in position by locking one leg of one profile over the leg of the adjacent profile.
Size
Inside Diameter
Outside Diameter
Coiling Diameter
Weight
Breaking Load Min
TongFengflex Part Number
5/32”
0.156”
0.235”
1.80”
0.030 lb/ft
145 lbs.
SL-SS-0025
3/16”
0.188”
0.266”
1.80”
0.033lb/ft
150 lbs.
SL-SS-003
7/32”
0.218”
0.303”
1.80”
0.040 lb/ft
155 lbs.
SL-SS-0035
1/4”
0.250”
0.329”
2.0”
0.041 lb/ft
190 lbs.
SL-SS-004
9/32”
0.282”
0.375”
2.0”
0.048 lb/ft
200 lbs.
SL-SS-0045
5/16”
0.313”
0.410”
2.0”
0.055 lb/ft
200 lbs.
SL-SS-005
3/8”
0.375”
0.500”
2.0”
0.088 lb/ft
225 lbs.
SL-SS-006
1/2”
0.500”
0.625”
2.5”
0.106 lb/ft
250 lbs.
SL-SS-008

 Fully InterLok Style (FI) InterLok metal strip and the edges of the strip are completely interlocked with each other.  This offers increased crush protection, and higher axial strength.
Size
Inside Diameter
Outside Diameter
Coiling Diameter
Weight
Breaking Load Min
TongFengflexPart Number
3/16”
0.188”
0.266”
2.0”
0.041 lb/ft
190 lbs.
FI-SS-003
7/32”
0.218”
0.303”
2.0”
0.045 lb/ft
200 lbs.
FI-SS-0035
1/4”
0.250”
0.329”
2.0”
0.046 lb/ft
250 lbs.
FI-SS-004
