Germicidal Ultraviolet UVC T5 LAMP WITH CERAMIC BASE

Germicidal Ultraviolet UVC T5 LAMP WITH CERAMIC BASE 1

Model:	KC-UVC-GT5
Brand:	KCHAIN OR OEM
Origin:	Made In China
Category:	Consumer Electronics & Lighting / Lighting / Bulb & Lamp
Label:	lamp , uv ozone lamp , uvc lamp
Price:	-
Min. Order:	500 pc

Inquire Now Add to Basket

Member Information

KCHAIN ENTERPRISES LIMITED

Free MemberZhe Jiang - China

Live Chat:

Last Online:19 Mar, 2020

Product Description

Model	Tube diameter	BF-BF	Arc legth	Power	Current	Voltage at 50/60Hz	Voltage at High Freq	UV Output		Rated Life
	Tube diameter	BF-BF	Arc legth	Power	Current	Voltage at 50/60Hz	Voltage at High Freq	at 254nm		Standard Life Version	Long Life Version
	mm	mm	mm	W	mA	V	V	µW/cm2	W	h	h
Instant Start Lamps
K10T5L	15	357	277	17	425	51	42	57	5.7	9,000	13,000
K10T5VH	15	357	277	17	425	51	42	57	5.7	9,000	13,000
KSL692T5L	15	692	612	32	425	94	77	95	11	9,000	13,000
KSL692T5VH	15	692	612	32	425	94	77	95	11	9,000	13,000
K36T5L	15	843	762	41	425	120	98	130	15	9,000	13,000
K36T5VH	15	843	762	41	425	120	98	130	15	9,000	13,000
K48T5L	15	1,148	1,067	55	425	165	135	170	21	9,000	13,000
K48T5VH	15	1,148	1,067	55	425	165	135	170	21	9,000	13,000
K64T5L	15	1,554	1,474	75	425	220	179	220	31	9,000	13,000
K64T5VH	15	1,554	1,474	75	425	220	179	220	31	9,000	13,000
K67T5L	15	1,630	1,550	79	425	231	189	225	32.5	9,000	13,000
K67T5VH	15	1,630	1,550	79	425	231	189	225	32.5	9,000	13,000
Cold Catode Lamps
782L10	15	357	221	15	90	180	165	22	2.8	17,500	NA
782VH10	15	357	221	15	90	180	165	22	2.8	17,500	NA
782L20	15	611	475	22	90	270	240	45	5.5	17,500	NA
782VH20	15	611	475	22	90	270	240	45	5.5	17,500	NA
782L30	15	865	729	28	90	350	310	63	8.3	17,500	NA
782VH30	15	865	729	28	90	350	310	63	8.3	17,500	NA

Product Image

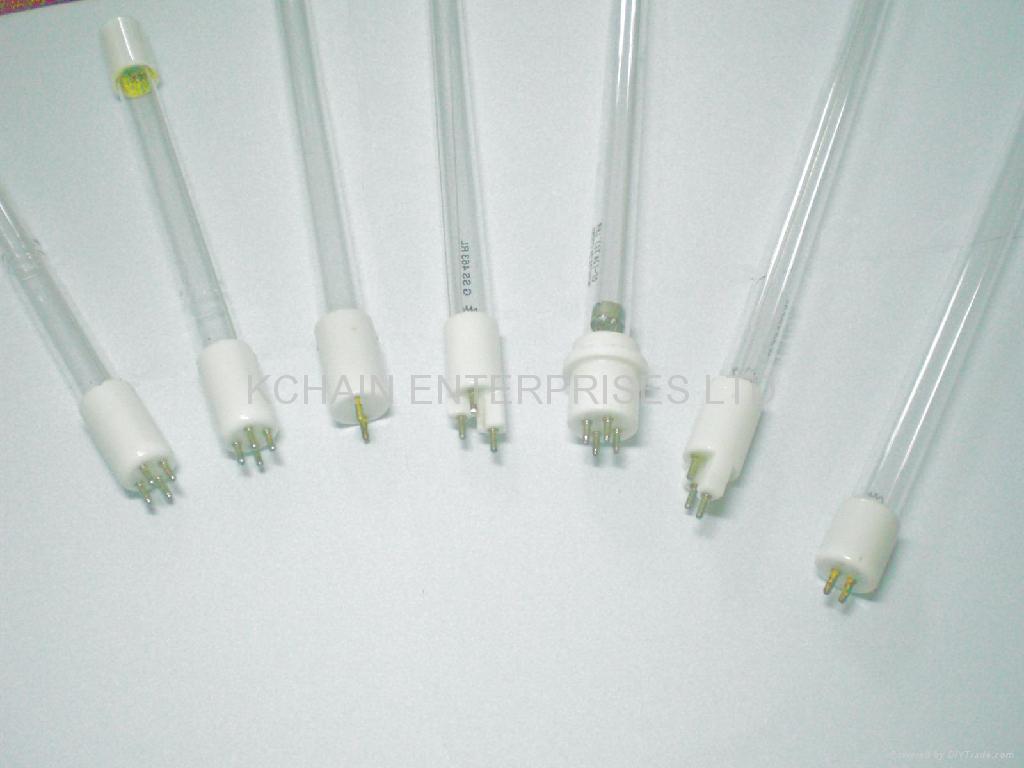

Img 1

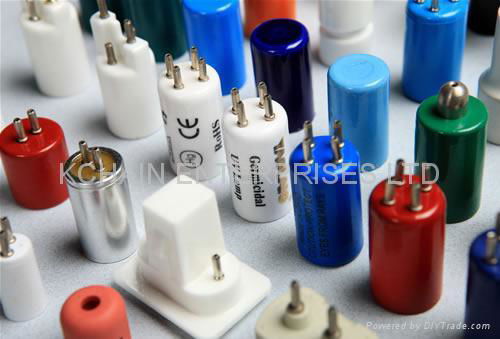

Img 2

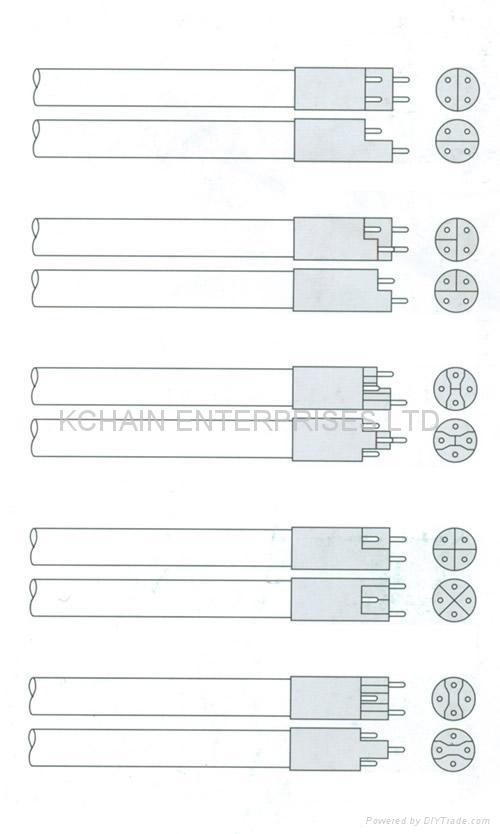

Img 3
