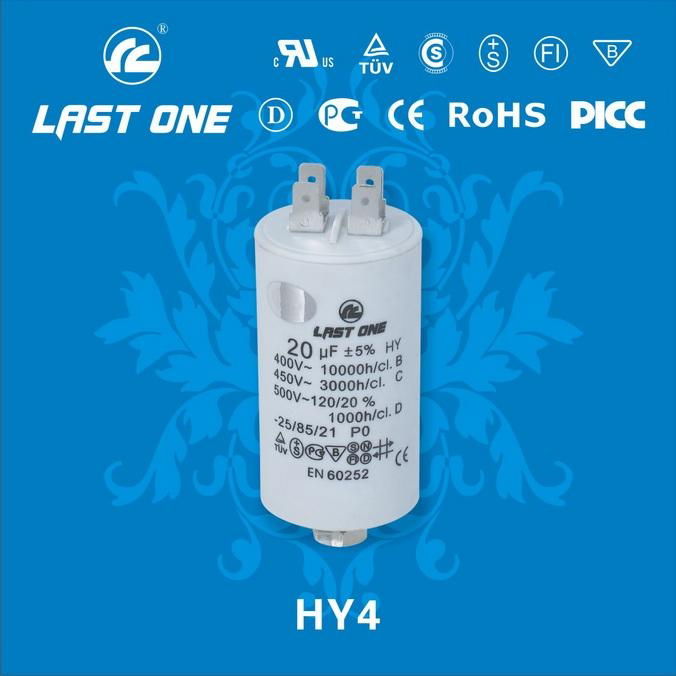

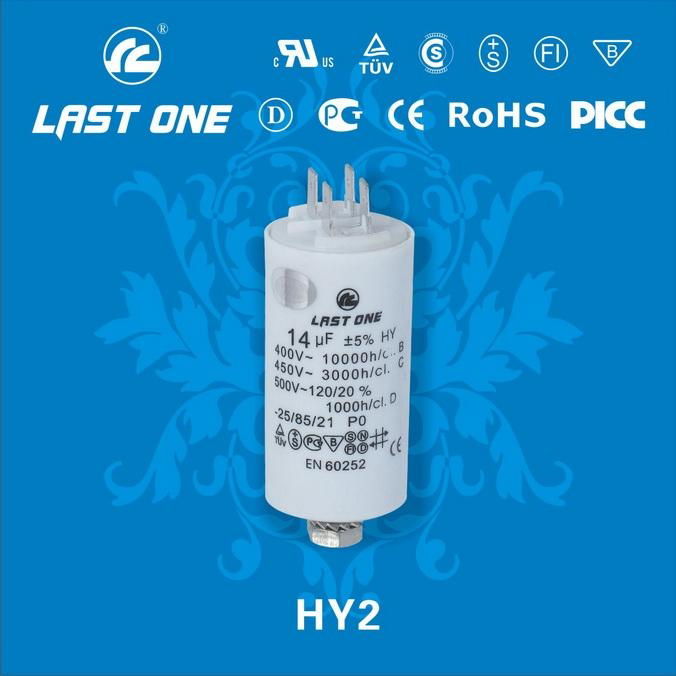

Applications: start and runing of single phase motors in alternating current usage

Manufacturing:
1) Self-healing metallized polypropylene film capacitor
2) Non inductive winding
3) Wound capacitor elements fully immersed into resin
4) Self-extinguishing plastic case

Executions:
1) Flat bottom-metal fixing stud: M8 x 12
2) Faston terminal: 0.8 x 6.35 single or double
3) Standard distance: P = 13.2mm±0.5
4) Unipolar cable to bipolar cable
5) Discharge resistance plastic cover

Technical characteristics:
1) Range: 1 - 120uf
2) Rated voltage Vn: 400V AC
3) Rated frequency: 50Hz / 60Hz
4) Capacitance tolerance: ±5%, ±10%
5) Climatic category: -25 ~ +85°
6) Dissipation factor (at 50 - 100Hz and 20°): ≤0.002
7) Test voltage between armatures: 2.15 x Vn for 2s
8) Test voltage terminals and case: 2.5kV AC for 1s
9) Reference standard: EN60252
