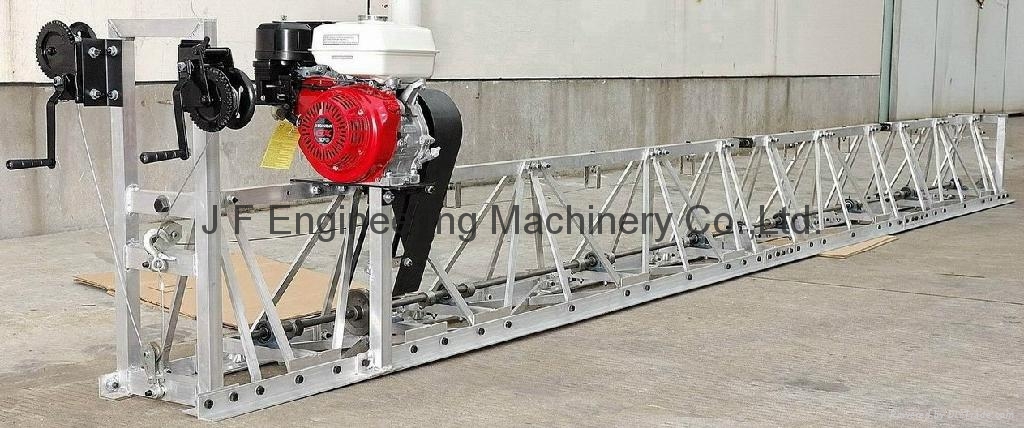

Truss Screed
It sets up and cleaned in roughly half the time of other screeds. This item has three main parts: The Truss sections, The Engine Drive Kits, and The Winch Kits.  The truss sections consist of  three sections that can be put together to meet the length of the demands. The things need to consider then is choose what engine and what type of winch. Please assemble the three sections to the cart separately.

Vibratory Truss Screed Functions

• Used to level up and compact consolidate the concrete road surface.
• Can be applied for concrete road, storage, factory, bridge and etc, which requires high standard level smooth.

Vibratory Truss Screed Main Advantages

• High quality special aluminum alloy frame structure, high strengthen, wear-resisting, firm and durable.
• Light weight, easy operation. Approximately 20kg per meter.
• Can walk on some different tracks, such as wood, metal, stone.
• It is combined by first-section, middle-section and the end-section. The length can be added from 3 to 20 meters.
• Every section can be knocked down and assembled easily by using common
  tools like spanners and ect.
• According to the concrete paving requirements, adjust the T bolt to form level,
  arc, or concave working surfaces.
• The winch assembly, T-Bolt and the quality transferring shaft are similar to world top quality.
• Honda or Robin or other quality gasoline powered  power supply.

Vibratory Truss Screed
1.Operating width ≤ 20m
2.Thickness ≤ 250mm
3.Concrete Slump≥ 4
4.Concrete granular≤40mm
5.Wacker technology
