Specification:

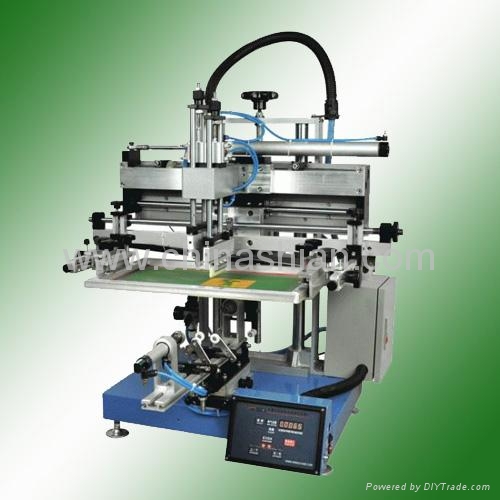

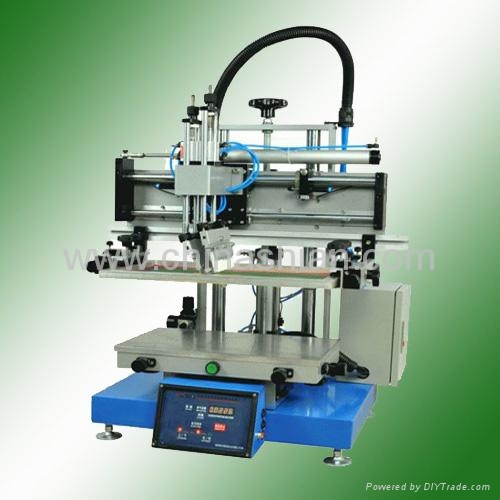

1. Name: flat screen printing machine vacuum table
2. Model: HC-2030C
3. Speed: 1200times/hr
4. Max printing area: 200*300mm
5. Power: 220V/110V 50-60Hz   50W
6. Air presssure: 5-7bar
7. demension: 68*77*87cm
8. Net weight: 120kg

Function introduction:

1. SCM IC coordinate light touching panel to complile action programming

2. Auto 4-digit counter built-in, counting printing quantity

3. Airframe adopts coin alloy, and metal coating surface

4. Distyle vertical constructure, high precision, steady operation

5. The transeversa stroke can be adjusted, spacing by Taiwan electronic switch

6. The angle of scraper and ink covering blades can be adjusted randomly

7. Installing scraper constant pressure equipment to make sure pressure is steady when printing

8. You can regulate work-table back and forth or right and left, and then fastening it

9. You can regulate screen frame back and forth, right and left or level orientatio

10. Vacuum stainless steel worktable, it can absorb kinds of film products

11. Installing CEC oil buffer on up and down, left and righ to avoid printing shocken

12. The machine is running fastly, steably and lower noise.

13. Action model option: Fully automatic semi-automatic manual

14. Start-up method: Panel foot switches

15. Scraper pressure controller: By pressure regulating Valve

16. Vertical driving style: Pneumatic

17. Transeversa driving style: Pneumatic

18. Maxium printing area: 200*300mm

19. Transeversa stroke: 350MM

20. Vertical stroke: 160MM

21. Worktable size: 250*450mm.
