| Model: | SH-25135 |
|---|---|
| Brand: | SHOOT |
| Origin: | Made In China |
| Category: | Industrial Supplies / Forest Machinery |
| Label: | windows machining , door machining cent , Door windows center |
| Price: |
US $32000
/ pc
|
| Min. Order: | 1 pc |
| Last Online:20 Aug, 2025 |
| Wood Door and Window Machining Center | |
| Feature | |
| Modular input, automatic machining,eficient and stable, abor saving and material saving | |
| Model | SH-25135 |
| External dimension | 4400*1610*1740mm |
| Material size | 2500*300*50mm |
| Processing tenon length | <50mm |
| Processing shape width | <35mm |
| Weight | 2500kg |
| Voltage/Frequency/Power | 380v / 50Hz / 16.5Kw |
| Suction port | Φ100*4 |
| Movement speed | 30m/min |
| Movement speed | 10m/min |
| Repeatability of positioning | ±0.1 |
| Air pressure | 0.5~0.8Mpa, with a diameter of 10 trachea |
| Spindle parameters | Max：12000 rpm/φ30， External economy<φ 90 |
| Spindle parameters | Max：6000 rpm/φ20， External economy<φ 200 |
| Spindle parameters | Max：12000rpm/ER25(4-16mm) |
| Lubricating oil | Hv32 |
| Control system | Independently develop control system
(without third-party service), support customization and free function upgrading. |
| Computer configuration | Windows industrial control interaction system. |
| Main Accessories | Describe |
| Customized controller, independently developed control system | High stability and powerful functionality |
| Brand servo drive system
(X.Z.Axis) (Y-axis with brake) |
High precision and stability |
| Brand screw and guide rail | High transmission accuracy and durability |
| Brand frequency converter | Heavy duty frequency converter |

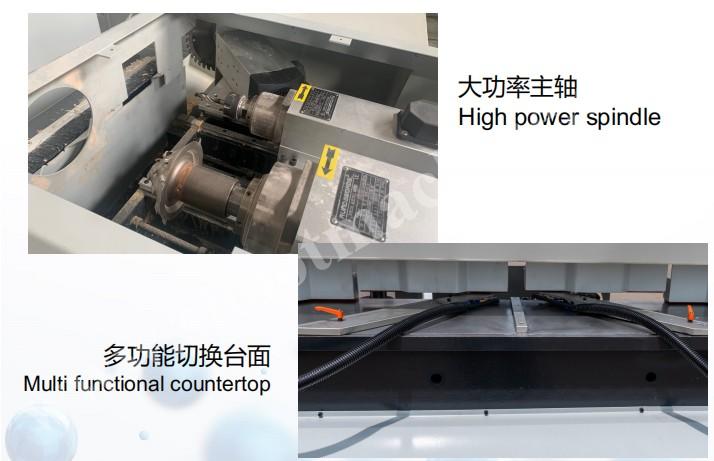

| High power spindle | Strong stability and strong cutting force |
| Composite multi station countertop | Left, middle, right, different workstations |
| Pressure control system | Easy adjustment of pressing position |
| High temperature tempered steel structure body+sheet metal | High stability of the body |
| Brand electrical components | High stability of electrical components |
| Support integration with MES and scanning processing, etc | Can use information management |
| Brand pneumatic parts | Stable and durable |
| Modular based human-computer interaction operation | Low requirements for operators |
| Automatic calculation and control system | |
| According to the material and specification data input by the user, the processing path and data of the equipment are calculated automatically, without any intervention. | |
| Continuous operating system update, so that the equipment has a higher hedge rate and cost performance. | |
| Multifunctional combination system: | |
| Multiple processing areas and continuous processing at multiple stations to
increase processing speed. |
|
| High strength integrated body, stable wear resistant, long-term use. | |
