Conveyor pad printer(SPM2-150/10)

Model:SPM2-150/10
Brand:LC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:pad printer , pad printing machine , pad press
Price: US $2985 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

LC industrial company Limited

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:12 Sep, 2023

Product Description

Two colors pad printer with Conveyer//Structure

Working table

10 stations conveyer-type working table

Shuttle stroke

125mm

Ink supply system

Open-type inkwell system

Pad dropping control

Simple-cylinder , Continue pressing

Ink drying

Heat air

 Two colors pad printer with 10-station conveyer // Usage and Characters

Guide

  • 10 station conveyer workbench, printing speed more fast;
  • Suitable for small product double pad printing;
  • Ink tray for ink store, and suitable for the traditional industry, printing ink adjust more convenient, more suitable for a striking observations;
  • Coin aluminum Structure overall manufacturing, run more smoothly, life more abiding; .
  • Automatically balanced scraping ink technology, scraping ink clean and easy to change;
  • Shuttle stroke for 125 mm, can print most products, which are widely applied in electronics, metal, plastic, gifts, furniture, household appliances, toys, jewelry, and other industrial areas;
  • Electromagnetic valve and cylinder with the German and Taiwan products

Application fields

Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.

Two colors pad printer with conveyer//Parameter

Technical parameters

SPM2-150/10

SPM2-200/10
  • Max. plate size: 100×150mm;
  • Max. worktable area: 90×130mm;
  • Max. printing Area: 90×130mm;
  • Max Products Dimension: 100×140mm;
  • Max. printing speed: 1200pcs/hr;
  • Printable color quantity:2;
  • Air consumption: 166Litre/min(6bar);
  • Station Number: 10。
  • Max. plate size: 100×200mm;
  • Max. worktable area: 90×125mm;
  • Max. printing Area: 90×170mm;
  • Max Products Dimension: 100×140mm;
  • Max. printing speed: 1200pcs/hr;
  • Printable color quantity:2;
  • Air consumption: 186Litre/min(6bar);
  • Table Station Number: 10。

Works supply

  • 110V-220VPower supply;
  • 5-7Bar Compress air;

Package list

  • Package size:1.14×0.78×1.53m;
  • Gross weight: 175kg;
  • CBM: 1.76418

H.S.Code

8443198000

Certicate

CE

Two colors pad printer with conveyer//Advantage

Function

  • Microcomputer program controlling operating technique ;
  • Streamline design ensure dexterous Appearance impressions;
  • Coin aluminum structure frame coated Gross-Green color paint;
  • 10-station conveyer  working table installed to get more fast printing speed ;
  • Independency pressure adjustment of pad press-printing and picking up ink;
  • Opened inkwell to store and coating ink , easily adjust the character of pad ink.
  • Automatism digital count function;
  • Double colors pad printing with drying through blowing hot air:
  • Ten grade printing speed setting, auto, semi-auto, testing operation mode setting;
  • Automatics balance blade to remove the ink completely.

Product Image

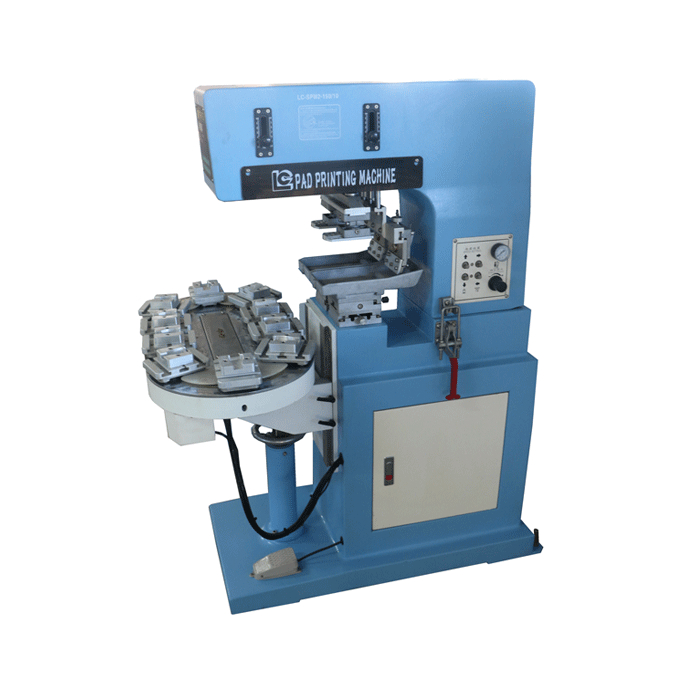

Conveyor pad printer(SPM2-150/10) 1
Img 1

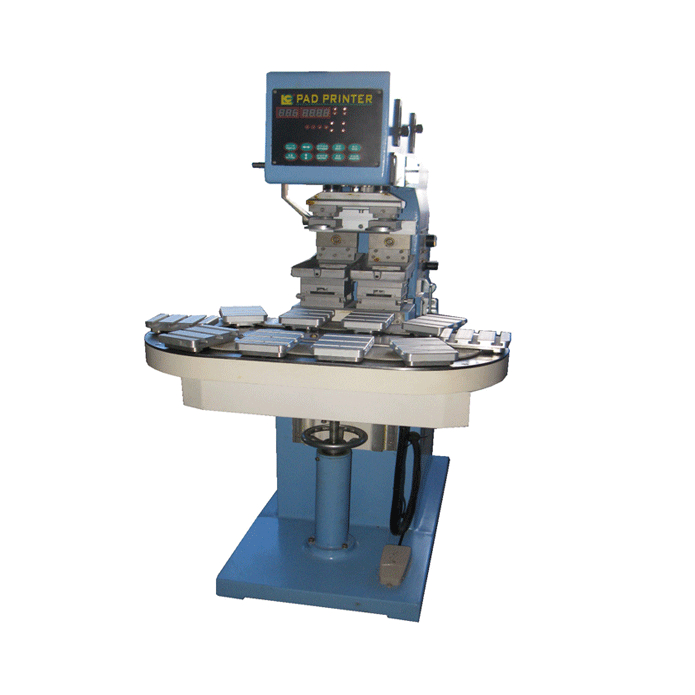

Conveyor pad printer(SPM2-150/10) 2
Img 2

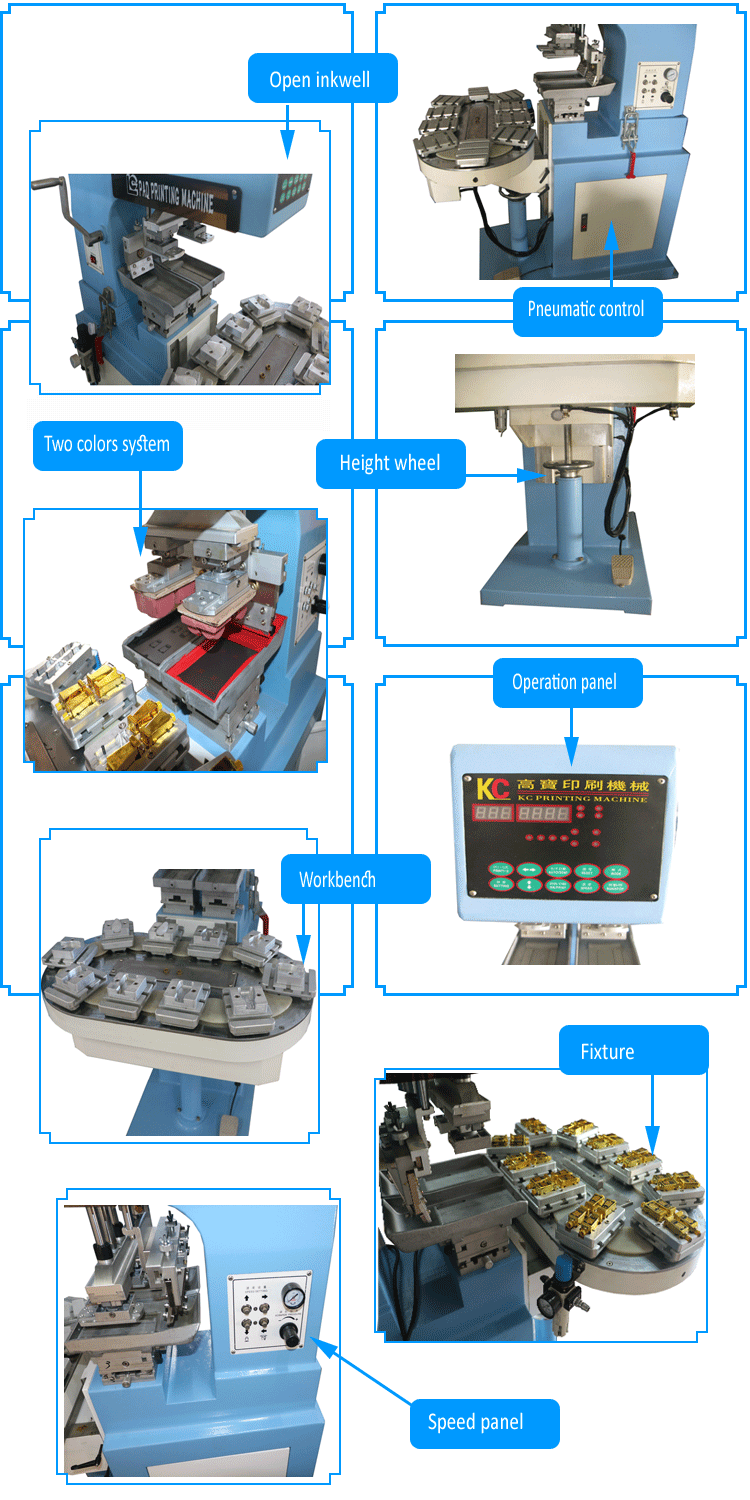

Conveyor pad printer(SPM2-150/10) 3
Img 3
Conveyor pad printer(SPM2-150/10) 4
Img 4
Conveyor pad printer(SPM2-150/10) 5
Img 5
Conveyor pad printer(SPM2-150/10) 6
Img 6
