HLR-72CUTAA(DPDT/30A/208-240VAC)Power Relay 1
  • HLR-72CUTAA(DPDT/30A/208-240VAC)Power Relay 1

HLR-72CUTAA(DPDT/30A/208-240VAC)Power Relay

Origin:Made In China
Category:Electronics & Electricity / Electronic Components / Relay & Contactor
Label:Power Relay , Relay , General Relay
Price: US $6.4 / pc
Min. Order:1000 pc
Inquire Now Add to Basket

Member Information


Hongli Electric Co.,Ltd

Biz MemberZhe Jiang - China
Live Chat:Last Online:07 Jun, 2021

Product Description

1、Applicable and Description

1. Applicable Scope

HLR-72CUTAA(DPDT/30A/208-240VAC) power relay , nominal current 30A attaches the post (T) primarily. Is suitable in the compressor, the heater control, the motor, the power source control, the duplicator, the facsimile machine, the flare control, the microwave oven, electric appliances and equipment's and so on packaging machine and food processing machinery single-phase load circuit's control. This product has the volume to be small, the weight is light, the coil power loss is low, the contact load is big, anti-impact ability, characteristics and so on redundant reliability.

 2.Type and Meaning

HL R - 7 2C U T AA
HONGLI Relay Bulk Pack Series  DPDT 208/240VAC Quick Contact Bracket mounting with.250"QC
2、 Product Explanation And Main Technical Parameter
★ Rating of insulation voltage Ui : 600V
★ Rating of contacts voltage Ue : AC 277V
★ Rating of current: Ie=16A ( AC-8b ), Ith=30A
★ Mechanical life> 1,000,000 Cycles
★ Electricity life> 100,000 Cycles
★ Coil working voltage scope: 70% ~110%Us
★ Product coil working voltage  Us=12,24,36,48,110/120,220/240VAC
3、Conforms To The Standard
  1 、 Conforms To UL508, IEC60947, GB14048 Standard。
2 、Approved By UL,ROHS and ISO9001 System Certification(SGS)。

UL Files Number:   E251539

4、Ordering Request

In order to guarantee you use need, when you order please in detail explain:

If you request as follows: Nominal current: 30A, working voltage: 240/277V, pole form: DPDT, coil control voltage: 208/240VAC, wiring way: A group 1/4 " fast attachment, load: The single-phase perception or the linear load, install the way: The foundation kneading board installment (AA),  packing: 120/each box (factory packing). Then you may the shaping be:HLR-72CUTAA
Ie Pole Rating of Coil Control Voltage Motor Power
24VAC 120VAC 208/240VAC 277VAC 240VAC

DownLoad PDF DataSheet

Product Image

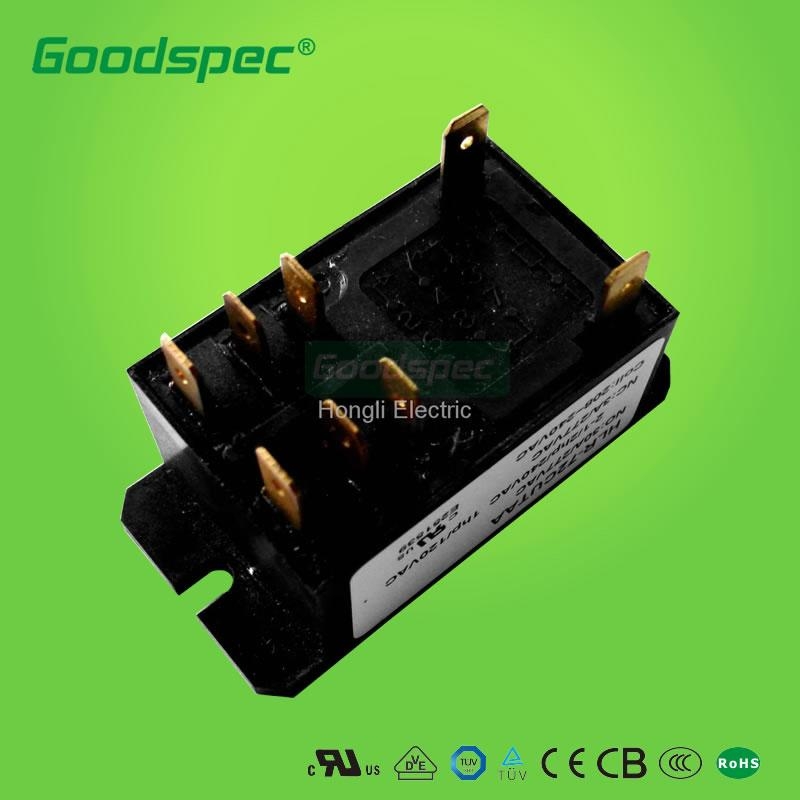

HLR-72CUTAA(DPDT/30A/208-240VAC)Power Relay 1
Img 1
