Model: | JERRY-III |
---|---|
Brand: | JERRY |
Origin: | Made In China |
Category: | Electronics & Electricity / Electronic Instrument / Electronic Measurment Apparatus |
Label: | Monitor , Patient Monitor , NIBP/SPO2 Monitor |
Price: |
-
|
Min. Order: | - |
Last Online:25 Nov, 2013 |

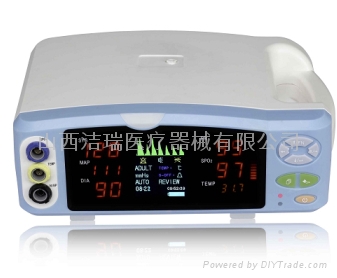

JERRY-III Portable Tabletop NIBP&SPO2 Patient Monitor
Parameters:
Four Parameters: NIBP,Pulse Rate,SPO2, (TEMP).
Waveforms:
SPO2 waveform
Features:
1. Intelligent monitoring NIBP,SPO2,PR,Pulse Strength,PLETH and TEMP;
2. Bright and clear LED and LCD display ;
3. Compact,light for handing and easy operation;
4. Audio and visual alarm when sensors off or alarm limit exceeded;
5. Storage and review of patient's NIBP data up to 900 groups and SPO2,TEMP trend data up to 3150 groups.The data is never lost even when power's off;
6. Three kinds of power supply, AC Power, Build-in rechargeable Li-ion battery and Common AA alkaline or rechargeable batteries;
7. Automatic shut down,shut down time adjustable from 2~15Min ;
8. History data uploading to a personal computer for display,observing and printing;
Applications:
This model can be applied in the hospital’s operation room, ICU, clinic section office, Out-patient department, sickroom and emergency treatment.
Standard Packing List:
NBIP/SPO2/TEMP Patient Monitor main unit 1pc
NIBP extension tube 1pc
Adult NIBP cuff 1pc
Adult SPO2 Sensor(include TEMP Probe) 1pc
AC power adaptor 1pc
Communication cable 1pc
The operator’s manual 1pc
Selectable Accessory:
Pediatric SPO2 sensor(include TEMP Probe)
Specifications:
NIBP:
Patient: Adult and Pediatric
Measurement method: Oscillometric
Range:Adult:30mmHg~255mmHg Pediatric: 30mmHg~160mmHg
Measurement unite: mmHg/kPa selectable
Measurement mode: Manual, Auto, STAT
Measurement Type: SYS, DIA, MAP
Measurement interval in AUTO mode:1,2,3,5,10,15,20,30,45,60Min
Measuring period in STAT mode: 5 Min
Resolution:1mmHg
Over-pressure protection:Adult:300mmHg Pediatric:220mmHg
SPO2:
Patient: Adult, child
Range: 0 -100%
Resolution: 1 %
Accuracy: ±2 %(90~99%), ±3 %(70~89%),unspecified (<70%)
PR:
Range:30bpm~250bpm
Resolution:1bpm
Accuracy: ±2bpm
Temperature:
Channel: 1
Input: Body surface thermal-sensitive resistor temperature sensor
Measurement Unit: °C/°F selectable
Range: 0~50℃
Resolution: 0.1℃
Accuracy: ±0.1℃
Environment:
Temperature
Operation:0°C~45°C
Transportation and storage:-20°C~60°C
Humidity
Operation: 15%~95 %( non-condensing)
Transportation and storage: 10%~95% (non-condensing)
Altitude
Operation:86kPa ~106kPa
Transportation and storage:50kPa~106kPa
Power Requirements:
AC power adaptor
Input: AC 100~240V, 50/60Hz, 0.7A
Output: DC 8.4V,1A
Internal battery
Type: 1500mAh/7.2V Li-ion rechargeable battery
Operating Time: 5 hours of stand-by time with a full battery.
Recharge time: 8 hours
Dimension: 160mm×148mm×85mm
Net Weight : 565g
