Zemic Digital Loadcell 30t Dhm9bd10-30t for Weighbridge
Product Description
| Products specification |
Features
Digital output signal(RS-485/4-Wire)
Nominal load 10t-50t
Dual-shear Beam
Easy to install |
Alloy steel
Hermetically sealed
Legal for trade verification
according to OIML R60 up to 3000d |
Specifications
Accuracy Class According
To OIML R60 |
C3 |
Capacity |
t |
10,20,25,30,40,50 |
| n max |
|
3000 |
Rated Output |
Counts |
1000000 |
| V min |
|
Emax/7500 |
Measuring Speed
Rate |
Hz |
112,56,28,14,7,3 |
| Combined Error |
%F.S |
≤±0.020 |
Excitation |
V DC |
6~15 |
| Creep Error |
%F.S/30min |
≤±0.016 |
Communication
Interface |
|
RS 485/4-wire |
Temperature Effect
On Sensitivity |
%F.S/10ºC |
≤±0.011 |
Communication
Baud Rate |
Bps |
19200 |
Temperature Effect
On Zero |
%F.S/10ºC |
≤±0.019 |
Max Communication
Distance |
m |
1200 |
Temperature,
Compensate |
ºC |
-10~+40 |
Number of Bus
Addresses |
|
Max.32 |
| Temperature,Operating |
ºC |
-10~+50 |
Protection Class |
|
IP68 |
| Safe Overload |
%F·S |
120 |
Cable length |
m |
12 |
| Ulimate Overload |
%F·S |
150 |
Type of Cable |
|
6-Wire Shield Cable
φ5.5mm |
|

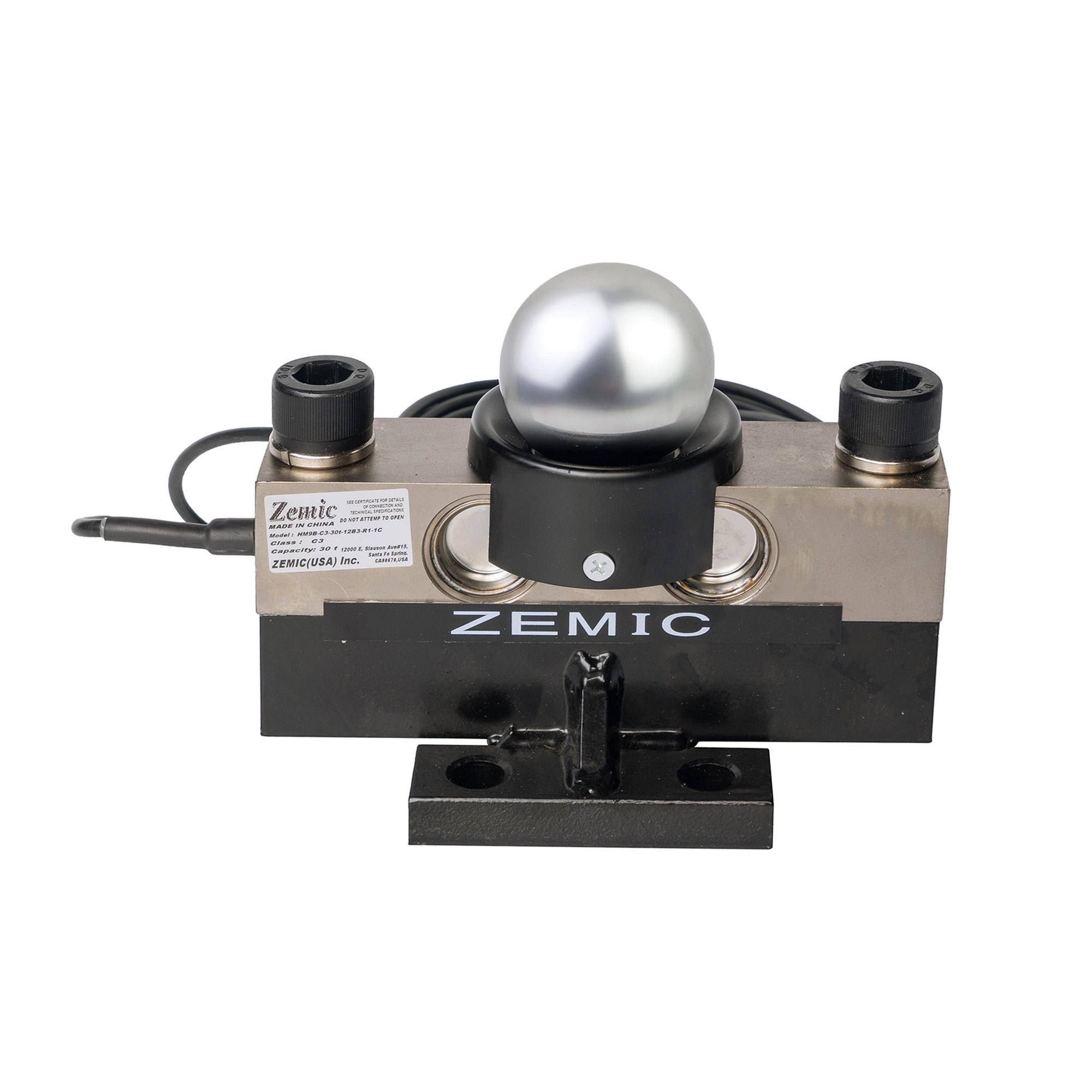

Product Image
