| Model: | C0001 |
|---|---|
| Brand: | XW |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Capacitor |

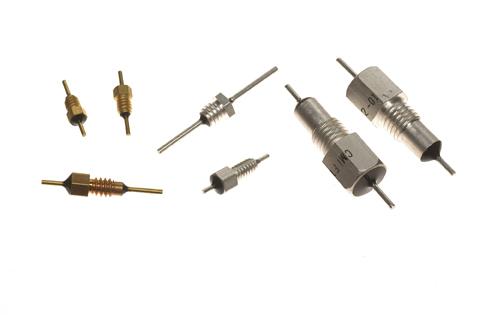

| Label: | Feed-thru EMI Filter , bolt-in EMI Filter , solder-in filter |
| Price: |
US $1
/ pc
|
| Min. Order: | 1000 pc |
| Live Chat: | Last Online:15 Oct, 2020 |
1).rated voltage:a.100vdc,200vdc,500vdc,700vdc,1000vdc,to 2000vdc
b. 250vAC,400vAC
2).capacitance:1PF to 104PF
3).capacitance tolerance:J(+-5%),K(+-10%),M(+-20%),Z(+80%,-20%),P(+100%,0)
4).insulation resistance:1000MΩ - 10000MΩ.
5).dielectric strength:1.5times (DC)
6times (AC)
Apply a AC voltages between the lead wires for 5 sec.,No failure.
6).dissipation factor:0.3%---5%
7).temperature feature: -15 C ---+40 C,
-20 C ---+50 C,
-20 C ---+80 C,
-40 C ---+85 C,
-55 C ---+125C (depend on the material)
8).rated current:0.8 7A
1.0 10A
1.2 15A
1.5 20A
Our company can produce the goods according to the clients request.
