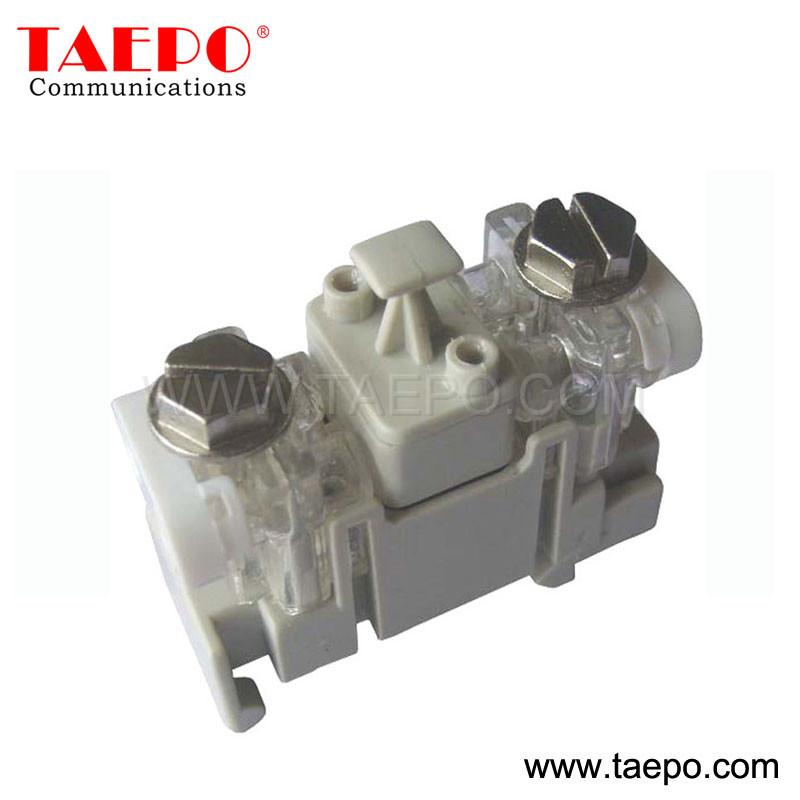

Gel filled without protection 1 pair STB VX Module
PRODUCT SERIES
TP-1301-1: 1 pair STB module without protection
TP-1301-1G: 1 pair STB module with protection against over-voltage
TP-1301-1GP: 1 pair STB module with protection against over-voltage and over-current.
DESCRIPTIONS
1 pair dropwire STB module without protection gel filled (TP-1301-1) also called VX connection module provides a connection point between an exchange-side cable pair and a distribution pair. It incorporates a 5-point plug in module to provide continuity and a range of other options.
It is especially recommended for outdoor connections where the environmental conditions are extremely aggressive.
The connection modules are designed for mounting on a standard DIN rail and can therefore be mounted in a variety of housings in whatever quantities are required. The small footprint (2 cm wide) ensures a compact product.
MAIN FEATURES
TECHNICAL PARAMETERS
|
General |
|
|
Storage Temperature: |
-40°C ~ +80°C |
|
Operating Temperature: |
-20°C~+60°C |
|
Relative Humidity: |
≤93% non-condensing |
|
|
|
|
Apperance: |
Uniform color, W/O crusting and cracks |
|
|
|
|
Materials |
|
|
Pair/drop Wire Screw: |
Zinc Alloy |
|
Drop Wire Housing Body: |
Transparent polycarbonate |
|
Body: |
Flame retardant (UL94) glass-fiber reinforced polycarbonate |
|
Insertion Contacts: |
Special brass |
|
Ground Contacts: |
Cu - Zn - Ni - Ag alloy |
|
Continuity Contacts: |
Tinned hard brass |
|
Lower Sealant: |
Polymeric resin |
|
Upper Cable Sealant: |
Silicone fluid |
|
Pair/drop Wire Bearing Cover: |
Polycarbonate |
|
Plug-in Module Body: |
Thermoplastic ABS |
|
Plug-in module Sealant: |
Silicone fluid |
|
“O”-Ring: |
EPDM |
|
Spring: |
Carbon steel |
|
Cable/drop Wire Membrane: |
Thermoplastic PVC |
|
|
|
|
Specifications |
|
|
Drop Wire Gauge range: |
0.4 to 1.2 mm |
|
Insulation Diameter: |
5 mm max. |
|
Pair Wire Gauge range: |
0.4 to 1.2 mm |
|
Insulation Diameter: |
5 mm max. |
|
|
|
|
Insulation resistance: |
> 10 12 Ω @ 500 V |
|
Contact resistance:
|
R material + R bridge contacts + R wire contacts < 10 mΩ |
|
Increase in contact resistance:
|
After climatic tests < 2.5 mΩ After 50 re-insertions < 2.5 mΩ |
|
Dielectric strength: |
> 3000 VDC for 1 minute |
ORDER DATA
|
Item No |
Descriptions |
|
TP-1301-1 |
1 pair dropwire STB module without protection, gel filled |
