1310nm/1550nm Bi-Directional Optical Module

Model:-
Brand:KOYA
Origin:Made In China
Category:Electronics & Electricity / Other Electrical & Electronic
Label: -
Price: -
Min. Order:10 pc
Inquire Now

Member Information

Detail

Product Description



Features
High-reliability
Low threshold current and operating current
Operating Wavelength 1310nm/1550nm
High responsivity InGaAs planar PIN detector
Low capacitance,low dark current
Integrated high isolate,low insert loss WDM
Apply for CDMA ,CATV
Built-in Optical Isolator

Optical and Electronic Characteristics

LD
Rated Output power 2-4mW
Rated Output Current Typ 10mA
Operating Current 30mA
Forward Current Typ 1.2mA
Central Wavelength 1310nm/1550nm
Spectral width 1-4nm
Tracking Error -1-1dB
Monitor Current 0.1-0.8mA
Monitor Dark Current <0.1uA
Relative intensity noise Typ -155dB/Hz
Isolation >30dB

PD
RF Bandpass Flatness <4dB
I M D 3 Typ -60dBc
Operating Wavelength 1100-1650nm
Bandwidth >2.5GHz
Capacitance <0.5Pf
Dark Current Tpy Typ 1nA
Responsivity >0.85A\W
Saturation Power Typ 3dBm
CSO Typ -70
CTB Typ -80
Return Optical Loss >45dB

Product Image

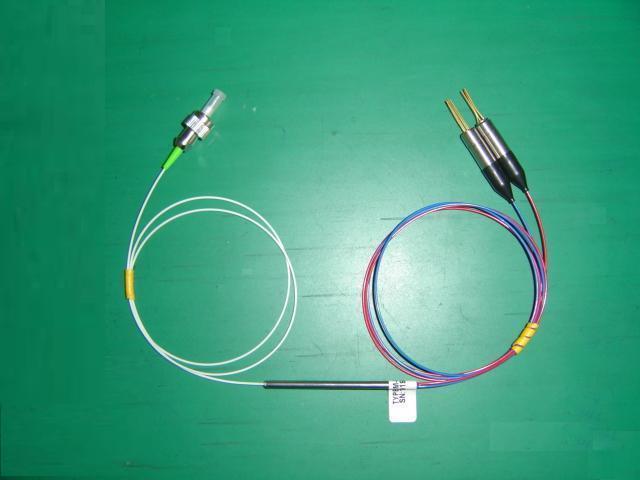

1310nm/1550nm Bi-Directional Optical Module 1
Img 1
