WF86CN Switches+Universal socket series

Model:WF-6CN2.S1C.R4S
Brand:Wonpro
Origin:Made In China
Category:Electronics & Electricity / Socket
Label:switch+receptacle , Universal outlet , universal receptacle
Price: -
Min. Order:100 pc
Inquire Now Add to Basket

Member Information

Detail

XIAMEN SHENLU WONPRO ELECTRICAL CO., LTD.

Biz MemberFu Jian - China
Live Chat:Last Online:05 Jul, 2021

Product Description


This combination series, that is to say , combination using by the switch adding receptacle Wonpro product can freely be assembled emerging the individuation requests.

The design of universal receptacle holes of the series product of receptacle is compatible to various plugs of international standards used in the United States, Asian, European and African countries. The design of universal functions makes possible various ways of assembly of receptacle according to desires. Wonpro products are easy to be assembled and replaced. With the design of a retaining slot and wire-withdraw press and accurate positioning device, the current leads are easy to be pl ed in or out according to your desire. The flexible and elastic metal pieces contact the plug closely and the closeness of contact remains even after 10 thousand plugs in and out. The additional protection shutter is a unique design in China for double guarantee, Power is not supplied unless the two protection shutter are opened simultaneously and this mechanism prevents wrong plug-in in one hole and protect children from electric shock.

The appearance of Wonpro switch is designed on the principle of golden section and initial creation. With elegant and noble appearance and cream colored and milky-white surface full of mild and soft atmosphere again solar violet radiation, Wonpro products sustain for ever their respectable natural color. The products of switch series are graceful in blade design, sufficient in contact surface, light and smooth in switch operation and free from sense of hard-going. A lamp displays at night, indicating accurately the position of light source. The sliver contact points inside the switch provide instant connection and disconnection of current and fast and powerful conductivity.

There are these WFC/CN series of products as follows:

WF-6CN2.S1C.R4S

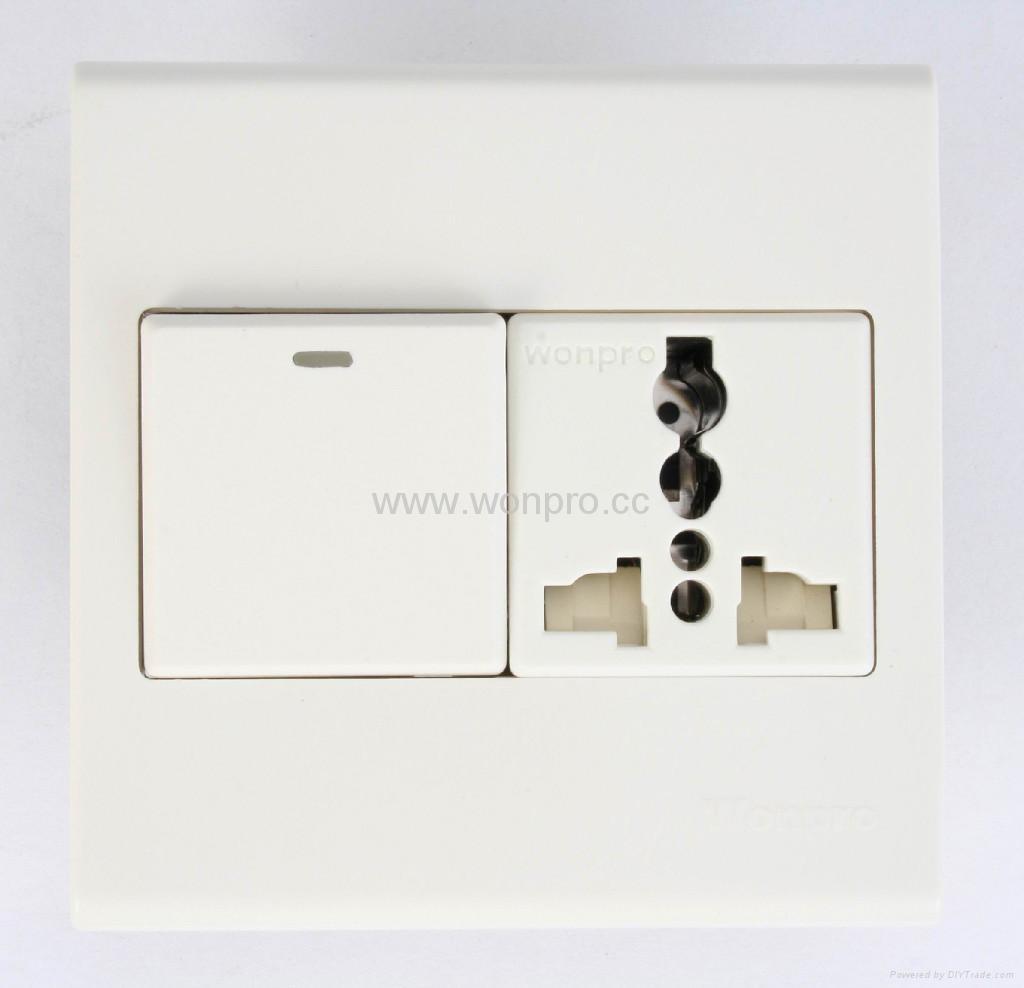

1 gang Switch set + 1 gang Universal receptacle with safety shutter
1 way 1 use
Rated: 16A 250V
Color: White
Frame Size: 86 x 86 (mm)
Fixed Hole: 60 (mm)


WF-6C2.S1C.R4
1 gang Switch set + 1 gang Universal receptacle
1 way 1 use
Rated: 16A 250V
Color: White
Frame Size: 86 x 86 (mm)
Fixed Hole: 60 (mm)


WF-6C2.CBS.R3
1 gang Noncircuit Breaker Switch set + 1 gang Universal receptacle+ L shape receptacle(two-use)
1 way 1 use
Rated: 16A 250V
Color: White
Frame Size: 86 x 786 (mm)
Fixed Hole: 60 (mm)

WF-6C2.S1C.R5B
1 gang Switch set + 1 gang USA standard 3-pole receptacle(two-used)
1 way 1 use
Rated: 16A 250V
Color: White
Frame Size: 86 x 86 (mm)
Fixed Hole: 60 (mm)

WF-6C2.S1C.R5B16
1 gang Switch set + 1 gang USA standard 3-pole receptacle+China 3-pole receptacle(two-used)
1 way 1 use
Rated: 16A 250V
Color: White
Frame Size: 86 x 86 (mm)
Fixed Hole: 60 (mm)

..........







Product Image

WF86CN Switches+Universal socket series 1
Img 1
WF86CN Switches+Universal socket series 2
Img 2
WF86CN Switches+Universal socket series 3
Img 3
WF86CN Switches+Universal socket series 4
Img 4
WF86CN Switches+Universal socket series 5
Img 5
