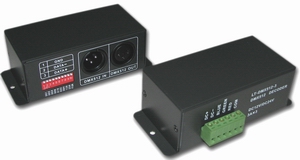

| Model: | HL-DMX603-6A |
|---|---|
| Brand: | - |
| Origin: | Made In China |
| Category: | Consumer Electronics & Lighting / Lighting / LED Lighting |
| Label: | led DMX512 , decoder , LED sign |
| Price: |
US $25
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:04 May, 2017 |
Features:
1. Conform to the international standard DMX protocol.
2. 256 grey levels, full color driving control technology.
3. Easy to set the DMX address on the LED lamps.
4. Achieve 0-100% dimming and all kind of changing effects.
5. Workable with single color/two color/RGB LED lamps.
6. 3 channels output, max.5A/6A/350mA/700mA per channel.
Technical Parameter:
| Model No.: HL-DMX603-6A(CV) | |||
| Input voltage: | DC12-24V | Connect mode: | common anode |
| Output voltage: | DC12-24V | Output Power: | 216W-432W |
| Input signal: | DMX512/1990 | Dimming range: | 0-100% |
| Output signal: | CV PWM | GW.: | 340g |
| Power supply: | CV type | Product size: | 156*67*41mm |
| Loadable current: | 6A*3CH | Package size: | 180*82*50 |
| Model No.: HL-DMX603-350(CC) | |||
| Input voltage: | DC12-48V | Connect mode: | common anode |
| Output voltage: | DC3-42V | Output Power: | 12.6W-50.4W |
| Input signal: | DMX512/1990 | Dimming range: | 0-100% |
| Output signal: | CC PWM | GW.: | 340g |
| Power supply: | CV type | Product size: | 156*67*41mm |
| Loadable current: | 350mA*3CH | Package size: | 180*82*50 |
| Model No.: HL-DMX603-700(CC) | |||
| Input voltage: | DC12-48V | Connect mode: | common anode |
| Output voltage: | DC3-42V | Output Power: | 25.2W-100.8W |
| Input signal: | DMX512/1990 | Dimming range: | 0-100% |
| Output signal: | CC PWM | GW.: | 340g |
| Power supply: | CV type | Product size: | 156*67*41mm |
| Loadable current: | 700mA*3CH | Package size: | 180*82*50 |
