Product Description

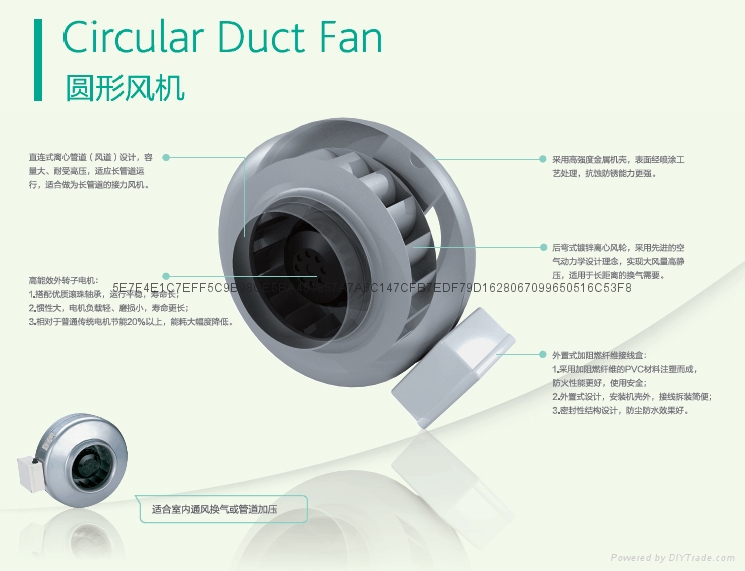

Circular duct fan is my company absorbs the domestic and foreign advanced technology design and become a new type of fan.Air inlet and outlet is designed according to the standard air duct, the diameter of the same size, both ends can be directly connected to the air duct, can greatly save pipeline design and production costs.New design of the chassis and high efficient centrifugal impeller design, as well as the high performance pipeline of exterior rotor motor fan, convenient installation.Wide applicable hotel, hotel, hall, conference room, supermarkets, railway stations, airports and other public places of air supply and exhaust air.
| Type |
Rotor diameter (mm) |
Air Volume (m^3/h) |
Rated voltage (v) |
Current (A) |
Seep(rpm) |
Noise(dB) |
Weight(kg) |
Wind pressure(pa) |
| DJT10-25B |
100 |
240 |
220 |
0.37 |
2420 |
65 |
2.78 |
327 |
| DJT12-35B |
125 |
330 |
220 |
0.42 |
2350 |
65 |
2.78 |
340 |
| DJT15-45B |
150 |
450 |
220 |
0.4 |
2380 |
65 |
3.12 |
340 |
| DJT16-45B |
160 |
550 |
220 |
0.63 |
2560 |
68 |
3.79 |
388 |
| DJT20-46B |
200 |
950 |
220 |
0.93 |
2530 |
69 |
4.31 |
536 |
| DJT25-66B |
250 |
1150 |
220 |
0.98 |
2590 |
70 |
4.62 |
595 |
| DJT31-66B |
315 |
1600 |
220 |
0.89 |
2600 |
71 |
5.38 |
498 |
