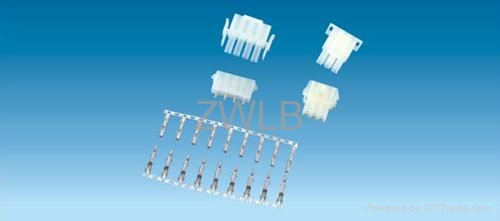

| Model: | 42021 - 42024 |
|---|---|
| Brand: | kefa |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Other Electronic Components |
| Label: | connector , bar connector , electrical component |
| Price: |
-
|
| Min. Order: | - |
| Live Chat: | Last Online:18 Oct, 2019 |
Specifications:
1) Poles: 1 - 15
2) Pitch: 6.35mm
3) Applicable wire: AWG20# - 14#
4) Applicable PC board thickness: 1.6mm
5) Temperature range: -25 ~ +105°C
6) Rated voltage: 300VAC/DC
7) Rated current: 13 - 8A
8) Connect resistance: ≤0.01Ω
9) Insulation resistance: ≥1,000mΩ
10) Voltage withstanding capability: 1,500VAC/min
11) Material:
a) Housing: nylon UL940v-2 (0)
b) Wafer: nylon UL940-2 (0)
c) Terminal: phos bronze, tin / plated
Widely used in telecommunication equipment, computers, controllers, alarm security, appliance instruments, elevators, home electric appliances, electronic ballasts and other fields
