|Origin:||Made In China|
|Category:||Electronics & Electricity / Electronic Components / Terminal|

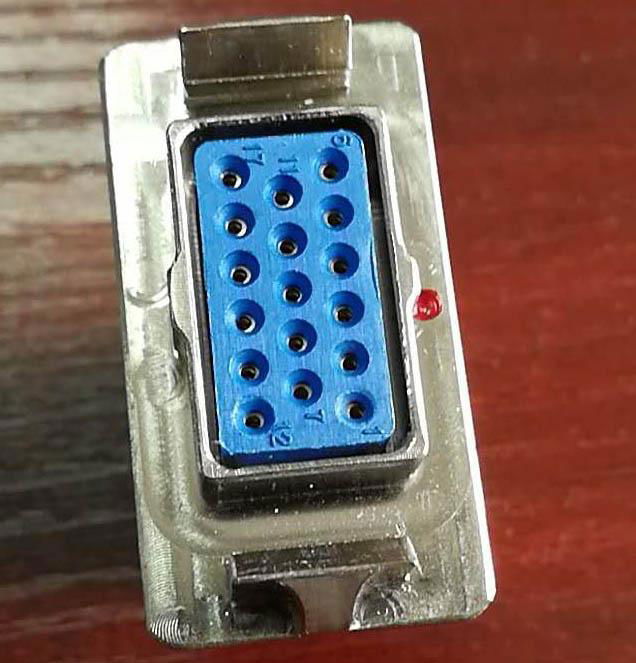

|Label:||rectangular plug , J7 series connectors , J7-17 connector|
|Min. Order:||1 pair|
This series of connectors J7 have the characteristics of double safety locking mechanisms, of novelty in structure, of diversity in sizes. They also have the little volume and high reliability. So they are suitable for the connections of the instruments and cables.J7 series are widely used in military application.
1. Service conditions
Operating Temperature range:-55- +125oC
Relative humidity: up to 90%- 95% at 40+2, -2oC
Atmospheric pressure: 101.3kPa- 1.33Pa
196m/s2 from 10- 2000Hz
2. Main feature
Current rating: (As the table)
less than 0.006 ohm in normal conditions
less than 0.010 ohm after aging test
2000 megohms in normal conditions
1000 megohms in hot conditions
20 megohms in wet conditions
Dielectric withstanding voltage:
800V in normal conditions
250V in low atmospheric pressure
Durability: 1000 cycles
3. Model ordering:
J7 W - 38 Z J II
J7:Name of rectangular series
W:Name of connector size:W-sealing receptacle,Without W:Mean normal receptacle.
38:number of contacts:9,17,25,26,38,50,62,72
Z:name of connector:T-cable plug,Z-receptacle.
J:name of contacts:J-male pins,K-female sockets.
II:Key;I,II,No marks:Normal standard key.
