Automatic Six Lines Multi-Boring Machine, BJK130A
Product Description
| Six Rows Multi-Boring Machine |
| Model |
BJK130A |
| Max drilling diameter |
35mm |
| Total umber of drilling shafts |
132 |
| Max drilling depth |
60mm |
| Minimum center distance between spindle |
32mm |
| Min.working distance of vertical head |
135mm |
| Max.working distance of vertical head |
2700mm |
| Maximum dimensions of pieces to be drilled |
2700×1200×80mm |
| Spindle speed |
2840rpm |
| Total power of motor |
1.5kw |
| Air pressure |
0.6-0.8mpa |
| Gas consumption for drilling ten panels per minut |
≈54L/min |
| Dimension |
4600×2500×1600mm |
| Weight |
2300kg |
| Height of working platform off ground |
930mm |
| Suitable voltage |
380V |

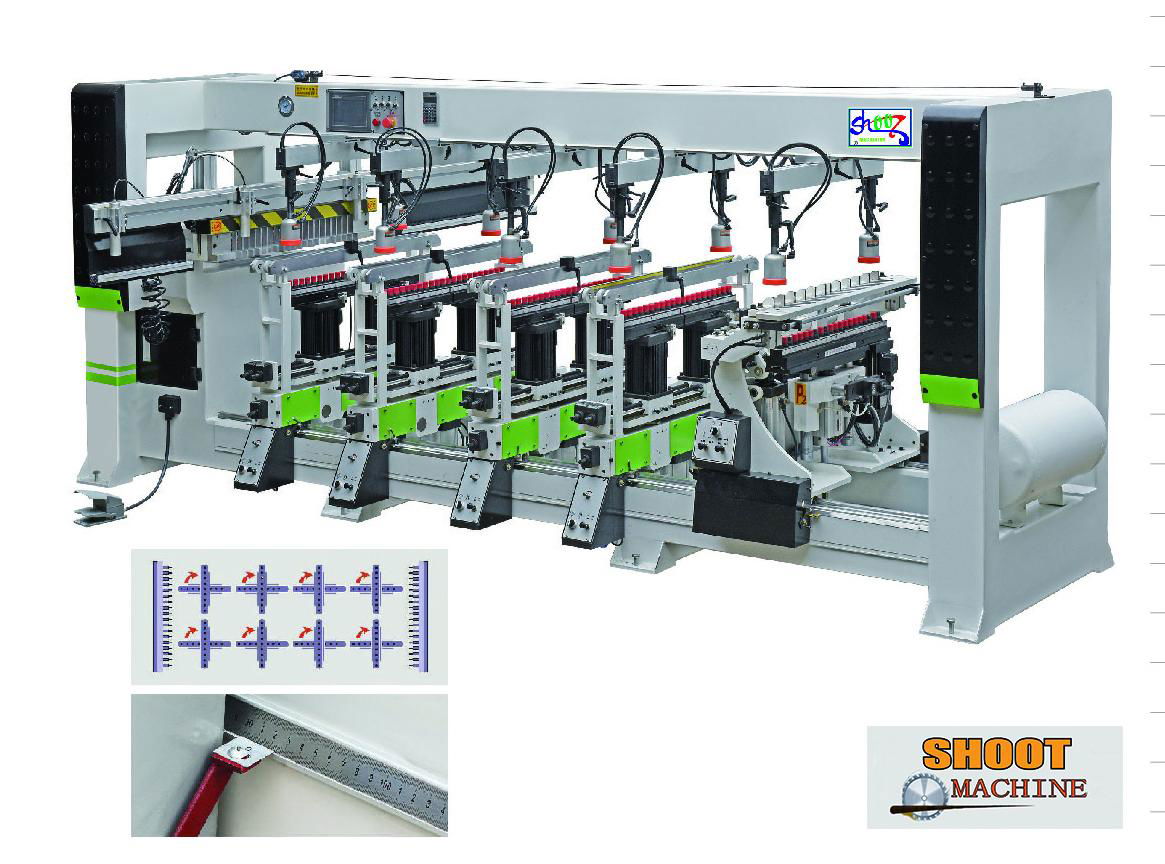

Product Image
