DPP138C/250C AL/PL Blister Packing Machine

Model:DPP138C/250C
Brand:SHPM
Origin:Made In China
Category:Industrial Supplies / Packaging Related Machine
Label:Packing Machine , Pack Machine , Bliter Machine
Price: US $10580 / set
Min. Order:1 set
Inquire Now Add to Basket

Member Information

Detail

Sunhang Pharmaceutical Machinery Co., Limited

Biz MemberShang Hai - China
Live Chat:
点击这里给我发消息Last Online:06 Sep, 2021

Product Description



Sunhang Pharmaceuitcal Machinery Co., Limited

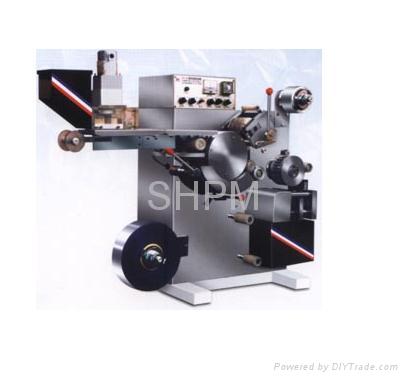

  DPP138C/250C AL/PL Blister Packing Machine



Performance and Characteristics:

Variable Frequency Speed Regulating, PC Circuit Control Panel.

Adjustable travel adopts manipulator grip equipped with inching device, which has accurate synchronization.

With cylinder heat-sealing, the upper and lower checkers ensure the effect of heat-sealing.

Mould spout location is convenient for replacing mould.

Waste Automatic Recovery Device.

DA vibrating disk feeder, which is suitable for feeding breakable pills and milk, pills with dust on surface.

Main Technical Specifications:

Punching Frequency:20-40times/min

Punching Plate: 2-3plates/time

4plates/time(DPP250C)

Adjustable Scope of Travel: 30-120mm

Packing Efficiency: 4800-7200plates/hour

           4800-9600plates/hour (DPP250C)

Max Forming Area and Depth: 140x110x18mm

                  245x112x30 mm (DPP250C)

Specifications of Packing Material:

Medical PVC: 150x0.25(0.15-0.5)mm

                   250x0.25(0.15-0.5)mm (DPP250C)

                  PTP: 150x0.02 mm

            250x0.02 mm (DPP250C)

Air-compressor: 0.15m3/ min; 0.22m3/ min (DPP250C)

Pressure: 0.5-0.7Mpa

Overall Size: 2200x750x1650mm

            2800x800x1900 mm (DPP250C)

Weight: 1500kg; 1500kg (DPP250C)


Product Image

DPP138C/250C AL/PL Blister Packing Machine 1
Img 1
DPP138C/250C AL/PL Blister Packing Machine 2
Img 2
DPP138C/250C AL/PL Blister Packing Machine 3
Img 3
DPP138C/250C AL/PL Blister Packing Machine 4
Img 4
DPP138C/250C AL/PL Blister Packing Machine 5
Img 5
