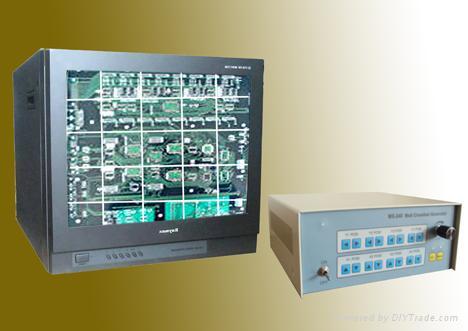

The WX240 Four Crosshair Generator designed by special VLSI and single-chip computer is a kind of crosshair generator specially used for digital localization. Its functions are following: Can demonstrate 4 horizontal lines, 4 vertical line Displaying white crosshair and black crosshair, and continuous controlling the brightness;

1、          The crosshair is movable in full screen without any drift of the display position.

2、          The adjusted and set position of crosshair is real time memorized by the memorizer, and will be automatically repositioned at the next startup.

3.matt can be adjusted linearly from black to white

4、Provide solid line / dotted lines show

Applications

Automated Component Pick & Place Precision Targeting
Cross hairs or cross lines superimposed or overlayed on video systems used for setting up automated electronic component pick and place machines allow an operator to precisely train the machine as to where components belong on a PC board.

Precision Laser Marking & Laser Welding
An adjustable video cross hair or cross line equipped video camera and monitor system can indicate where a powerful laser is going to hit before it's pulsed.

Silicon Wafer Precision Cutting and Sawing
A video picture with crosslines superimposed or overlayed can facilitate proper alignment of a silicon wafer or other material before it's cut.

Precision Highway Line Striping
Equipped with carefully mounted cameras, a video cross hair or cross line generator, and a video monitor in the cab, a highway line striping truck easily paints highway stripes precisely where they belong.

Accurate Docking of Blimps and Other Large Vessels
Some blimps and other large vessels are equipped with video cameras and a cross hair or cross line generator to help blimp or other vessel pilots accurately guide these vehicles for mooring.

. Specifications

TV standard PAL/NTSC  625/50 525/60

a. Video-input: 1Vp-p 75Ω BNC connection.

b. Video-output: 1Vp-p 75Ω BNC connection.

c. The range of the temperature and humidity:0℃ –40℃、70℅

Supply voltage:  AC 220 V(110V) ±10℅ 50—60 Hz
