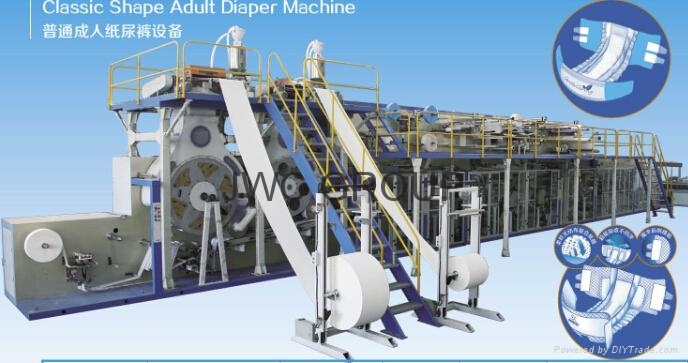

Main functions and features

◎Crusher system adopts sawmill or hammer mill with long fiber and better absorbent capacity.

◎Fluff core uses double-moulds forming or aggregate unit.

◎With warning function for SAP in lower place.

◎With standing cuffs, frontal tape, sides tape, waist band, elastic ribbon for leg mechanism.

◎Main material with constant tension control auto-unwind, web guide system. (option device)

◎Tri-folded arranging output.

◎With warning and shutting down functions by PLC control, material end detection and rejection system. (option device)

◎Driven by frequency. Machine equiped with PLC control and touchable screen.

◎Hot-melt applicator is set in front of the machine. Such bridge style makes it easy to feed the glue and control the temperature.

◎The machine equiped with protection door device.

Main technical parameters

◎Model:  LKC-Z

◎Designed speed: 160m/min

◎Practical speed:100-140pcs/min

◎Machine size:( 33.5x6x3)M(L×W×H)

◎Working size: ( 37.5x8x4)M(LxWxH)

◎Machine weight: 31T

◎Installed capacity: 170KW  (380V 50Hz) Breaker Capacity:  400A

◎Practical capacity: 120KW  (380V 50Hz)

◎Air compressor: 1.5m³/min

◎Electric wire: 3x70mm²+1x25 mm²+1x16 mm²

◎Product size:  S, M, L

◎Container: 2x40HQ
