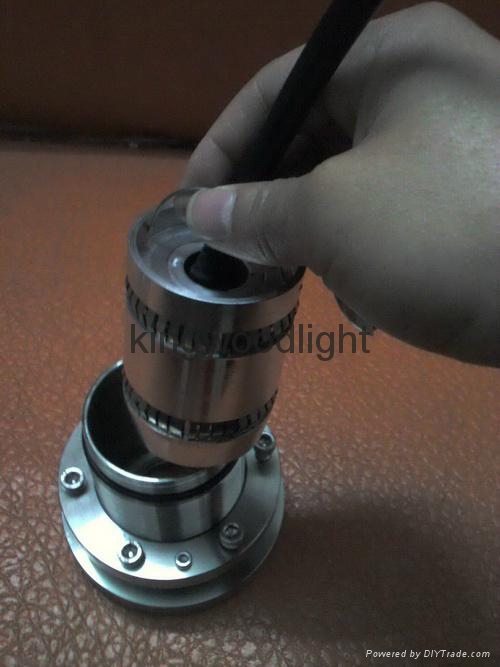

The  Underwater boat hid xenon  Light is manufactured specifically for the purpose of  illuminating the marine environment around and/or underneath a ship’s hull. Perfect for fishing, diving or just plain entertainment. Careful consideration has been made in the selection of materials and components that make up this fixture. Its streamline bezel results in near zero drag when installed in hull’s bottom. The fixture is designed to work with a 35w-55w hid xenon light.  It includes “plug & play” amp connectors (inside chamber & external) This fixture is completely serviceable from behind, making bulb changes simple and fast without the hassle of hauling the vessel.  . This light is particularly suitable for small and medium size boats and can be installed on sport fishers, centre consoles,  sportfishers,cruisers and performance boats.Light projection range up to 40 meters

1、  Net Weight :model:A 3.5KG

 2、Color:White

3、Bulb :H hid xenon bulb12V/24V 35W ，55W

4、Color Temperature4300K-10000k

5、HID Ballast :12V/24V  35W  ，55W

6、Performance :4500lm

7、Glass Lens: 15mm heat-treated tempered glass, clear
8、IP Rating : IP68
9、Cutout: 69.5mm 3-3/16"
10、Max Hull thickness:  60mm
 11、Life time: 5000 hours

 12、Lamps and lanterns main body:SS316L

 (Machined Stainless steel and lens bezel)

13、Dust and water-resistant lamp tube, High temperature silicone inner o-ring seals

 14、Shock-resistant light arc prevents breakage from excessive vibration

15、Brightness independent of voltage fluctuation and constant power output  ,High-output hid technology

16、Instant start-up and short-circuit protectio,Low profile trim bezel for optimal hydrodynamics
17、For large ships - 12/24 volt system,The most modern Xenon light technology,Low power consumption,Leakproof,Also available with weld-in adaptor,Bulbs can be changed from boat interior (boat can remain in the water)
 18、 Light projection range up to 40 meters
