Cargo 1
  • Cargo 1

Cargo

Model:DB150ZH
Brand:-
Origin:-
Category:Transportation / Vehicles / Motorcycle
Label: -
Price: -
Min. Order:-
Inquire Now Add to Basket

Member Information

Detail

Chongqing Dongben Industry Co., Ltd

Live Chat:
Last Online:08 Sep, 2020

Product Description

Dimension L x W x H 3300 1380 1400 mm
 Wheel Base 2060 mm
 Groud Clearance 160 mm
 Dry weight 396 kg
 Max. Loading Capacity  375 kg

Frame  Fr. Suspension Hydraulic pressure
 Rr. Suspension Hydraulic pressure
 Fr. Tire size 4.50-12/415
 Rr. Tire size 4.50-12/415
 Fr. Brake Drum
 Rr. Brake Drum
 Fuel tank capacity 14 L

Engine  Bore and stroke 62x 49.5
 Displacement  149.5cc
 Compression ratio 9.0:01
 Lubrication system press splash
 Cooling system Air cooled
 Cylinder  Single cylinder
 Max. output(kw/rpm) 8.2/9000
 Max. torque (kw/rpm) 9.5/7500

Drive train
 Transmission        Primary:  5 gears with reverse gear
                                Final :  Shaft
Eletrical  Ignition system CDI

Loading Capacity:54 units in 40'HQ

Remarks:  175cc, 200cc or 250cc engine are available.


Product Image

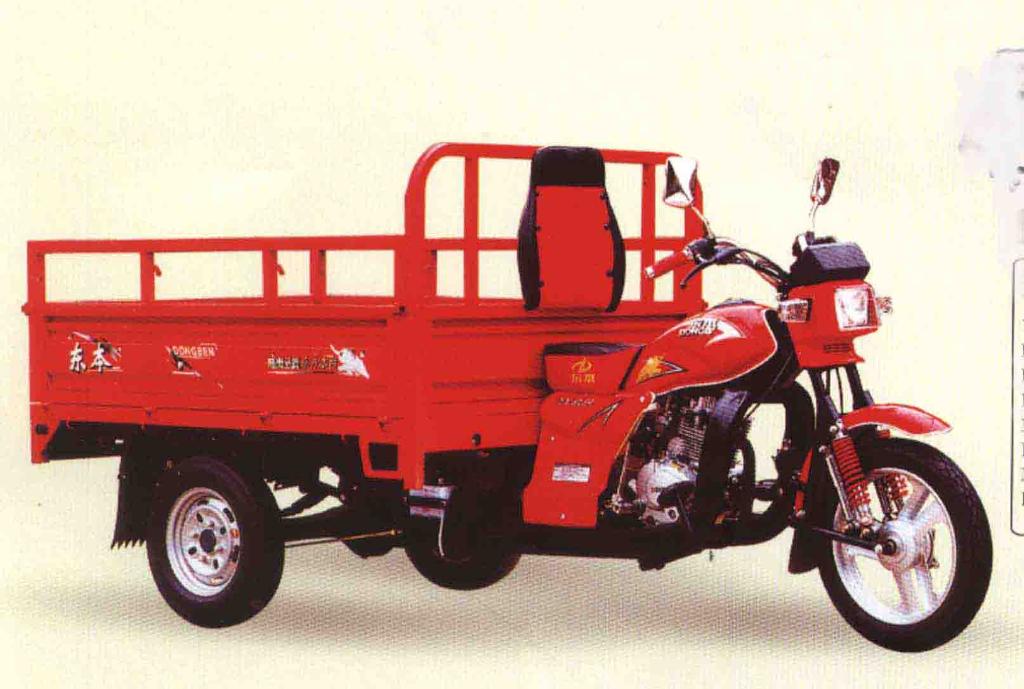

Cargo 1
Img 1
