Panasonic PLC- FP0R series (mini)

Model:	FP0R
Brand:	PANASONIC
Origin:	Made In Japan
Category:	Electronics & Electricity / Electric Control System
Label:	Panasonic PLC , FP0R , FP0
Price:	-
Min. Order:	1 pc

Inquire Now Add to Basket

Member Information

Guangzhou Easycom Automation Equipment Co.,Ltd.

Biz MemberGuang Dong - China

Live Chat:

Last Online:03 Mar, 2024

Product Description

1. Control units

Product name	Built-in memory (Program capacity)	Specifications						Part Number
Product name	Built-in memory (Program capacity)	Number of I/O points		Power supply voltage	Input	Output	Connection type	Part Number
FP0R-C10 Control Unit	EEPROM (16 k steps)	10	Input: 6 Output: 4	24 V DC	24 V DC Sink/Source (±common)	Relay: 2 A	Terminal block	AFP0RC10RS
FP0R-C10 Control Unit	EEPROM (16 k steps)	10	Input: 6 Output: 4	24 V DC	24 V DC Sink/Source (±common)	Relay: 2 A	Molex connector	AFP0RC10RM
FP0R-C10 Control Unit with RS232C port	EEPROM (16 k steps)	10	Input: 6 Output: 4	24 V DC	24 V DC Sink/Source (±common)	Relay: 2 A	Terminal block	AFP0RC10CRS
FP0R-C10 Control Unit with RS232C port	EEPROM (16 k steps)	10	Input: 6 Output: 4	24 V DC	24 V DC Sink/Source (±common)	Relay: 2 A	Molex connector	AFP0RC10CRM
FP0R-C10 Control Unit with RS485 port	EEPROM (16 k steps)	10	Input: 6 Output: 4	24 V DC	24 V DC Sink/Source (±common)	Relay: 2 A	Terminal block	AFP0RC10MRS
FP0R-C14 Control Unit	EEPROM (16 k steps)	14	Input: 8 Output: 6	24 V DC	24 V DC Sink/Source (±common)	Relay: 2 A	Terminal block	AFP0RC14RS
FP0R-C14 Control Unit	EEPROM (16 k steps)	14	Input: 8 Output: 6	24 V DC	24 V DC Sink/Source (±common)	Relay: 2 A	Molex connector	AFP0RC14RM
FP0R-C14 Control Unit with RS232C port	EEPROM (16 k steps)	14	Input: 8 Output: 6	24 V DC	24 V DC Sink/Source (±common)	Relay: 2 A	Terminal block	AFP0RC14CRS
FP0R-C14 Control Unit with RS232C port	EEPROM (16 k steps)	14	Input: 8 Output: 6	24 V DC	24 V DC Sink/Source (±common)	Relay: 2 A	Molex connector	AFP0RC14CRM
FP0R-C14 Control Unit with RS485 port	EEPROM (16 k steps)	14	Input: 8 Output: 6	24 V DC	24 V DC Sink/Source (±common)	Relay: 2 A	Terminal block	AFP0RC14MRS
FP0R-C16 Control Unit	EEPROM (16 k steps)	16	Input: 8 Output: 8	24 V DC	24 V DC Sink/Source (±common)	Transistor NPN: 0.2 A	MIL connector	AFP0RC16T
FP0R-C16 Control Unit	EEPROM (16 k steps)	16	Input: 8 Output: 8	24 V DC	24 V DC Sink/Source (±common)	Transistor PNP: 0.2 A	MIL connector	AFP0RC16P
FP0R-C16 Control Unit with RS232C port	EEPROM (16 k steps)	16	Input: 8 Output: 8	24 V DC	24 V DC Sink/Source (±common)	Transistor NPN: 0.2 A	MIL connector	AFP0RC16CT
FP0R-C16 Control Unit with RS232C port	EEPROM (16 k steps)	16	Input: 8 Output: 8	24 V DC	24 V DC Sink/Source (±common)	Transistor PNP: 0.2 A	MIL connector	AFP0RC16CP
FP0R-C16 Control Unit with RS485 port	EEPROM (16 k steps)	16	Input: 8 Output: 8	24 V DC	24 V DC Sink/Source (±common)	Transistor NPN: 0.2 A	MIL connector	AFP0RC16MT
FP0R-C16 Control Unit with RS485 port	EEPROM (16 k steps)	16	Input: 8 Output: 8	24 V DC	24 V DC Sink/Source (±common)	Transistor PNP: 0.2 A	MIL connector	AFP0RC16MP
FP0R-C32 Control Unit	EEPROM (32 k steps)	32	Input: 16 Output: 16	24 V DC	24 V DC Sink/Source (±common)	Transistor NPN: 0.2 A	MIL connector	AFP0RC32T
FP0R-C32 Control Unit	EEPROM (32 k steps)	32	Input: 16 Output: 16	24 V DC	24 V DC Sink/Source (±common)	Transistor PNP: 0.2 A	MIL connector	AFP0RC32P
FP0R-C32 Control Unit with RS232C port	EEPROM (32 k steps)	32	Input: 16 Output: 16	24 V DC	24 V DC Sink/Source (±common)	Transistor NPN: 0.2 A	MIL connector	AFP0RC32CT
FP0R-C32 Control Unit with RS232C port	EEPROM (32 k steps)	32	Input: 16 Output: 16	24 V DC	24 V DC Sink/Source (±common)	Transistor PNP: 0.2 A	MIL connector	AFP0RC32CP
FP0R-C32 Control Unit with RS485 port	EEPROM (32 k steps)	32	Input: 16 Output: 16	24 V DC	24 V DC Sink/Source (±common)	Transistor NPN: 0.2 A	MIL connector	AFP0RC32MT
FP0R-C32 Control Unit with RS485 port	EEPROM (32 k steps)	32	Input: 16 Output: 16	24 V DC	24 V DC Sink/Source (±common)	Transistor PNP: 0.2 A	MIL connector	AFP0RC32MP
FP0R-T32 Control Unit with RS232C port and Real-time clock function	EEPROM (32 k steps)	32	Input: 16 Output: 16	24 V DC	24 V DC Sink/Source (±common)	Transistor NPN: 0.2 A	MIL connector	AFP0RT32CT
	EEPROM (32 k steps)	32	Input: 16 Output: 16	24 V DC	24 V DC Sink/Source (±common)	Transistor PNP: 0.2 A	MIL connector	AFP0RT32CP
FP0R-T32 Control Unit with RS485 port and Real-time clock function	EEPROM (32 k steps)	32	Input: 16 Output: 16	24 V DC	24 V DC Sink/Source (±common)	Transistor NPN: 0.2 A	MIL connector	AFP0RT32MT
	EEPROM (32 k steps)	32	Input: 16 Output: 16	24 V DC	24 V DC Sink/Source (±common)	Transistor PNP: 0.2 A	MIL connector	AFP0RT32MP
FP0R-F32 Control Unit with RS232C port and Battery-less automatic all data backup function	EEPROM (32 k steps)	32	Input: 16 Output: 16	24 V DC	24 V DC Sink/Source (±common)	Transistor NPN: 0.2 A	MIL connector	AFP0RF32CT
	EEPROM (32 k steps)	32	Input: 16 Output: 16	24 V DC	24 V DC Sink/Source (±common)	Transistor PNP: 0.2 A	MIL connector	AFP0RF32CP
FP0R-F32 Control Unit with RS485 port and Battery-less automatic all data backup function	EEPROM (32 k steps)	32	Input: 16 Output: 16	24 V DC	24 V DC Sink/Source (±common)	Transistor NPN: 0.2 A	MIL connector	AFP0RF32MT
	EEPROM (32 k steps)	32	Input: 16 Output: 16	24 V DC	24 V DC Sink/Source (±common)	Transistor PNP: 0.2 A	MIL connector	AFP0RF32MP

Note :	A power cable (Part number: AFPG805) is supplied with the control units.

Return to top

2. Expansion units

Product name	Specications						Part number
Product name	Number of I/O points		Power supply voltage	Input	Output	Connection type	Part number
FP0R-E8 Expansion Unit	8	Input: 8	-	24 V DC Sink/Source (±common)	-	MIL connector	AFP0RE8X
	8	Input: 4 Output: 4	24 V DC	24 V DC Sink/Source (±common)	Relay: 2 A	Terminal block	AFP0RE8RS
	8	Input: 4 Output: 4	24 V DC	24 V DC Sink/Source (±common)	Relay: 2 A	Molex connector	AFP0RE8RM
	8	Output: 8	24 V DC	-	Relay: 2 A	Terminal block	AFP0RE8YRS
	8	Output: 8	-	-	Transistor NPN: 0.3 A	MIL connector	AFP0RE8YT
	8	Output: 8	-	-	Transistor PNP: 0.3 A	MIL connector	AFP0RE8YP
FP0R E16 Expansion Unit	16	Input: 16	-	24 V DC Sink/Source (±common)	-	MIL connector	AFP0RE16X
	16	Input: 8 Output: 8	24 V DC	24 V DC Sink/Source (±common)	Relay: 2 A	Terminal block	AFP0RE16RS
	16	Input: 8 Output: 8	24 V DC	24 V DC Sink/Source (±common)	Relay: 2 A	Molex connector	AFP0RE16RM
	16	Input: 8 Output: 8	-	24 V DC Sink/Source (±common)	Transistor NPN: 0.3 A	MIL connector	AFP0RE16T
	16	Input: 8 Output: 8	-	24 V DC Sink/Source (±common)	Transistor PNP: 0.3 A	MIL connector	AFP0RE16P
	16	Output: 16	-	-	Transistor NPN: 0.3 A	MIL connector	AFP0RE16YT
	16	Output: 16	-	-	Transistor PNP: 0.3 A	MIL connector	AFP0RE16YP
FP0R E32 Expansion Unit	32	Input: 16 Output: 16	-	24 V DC Sink/Source (±common)	Transistor NPN: 0.3 A	MIL connector	AFP0RE32T
FP0R E32 Expansion Unit	32	Input: 16 Output: 16	-	24 V DC Sink/Source (±common)	Transistor PNP: 0.3 A	MIL connector	AFP0RE32P

*1	The relay output type expansion units come with a power cable (part number: AFP0581). (The transistor output type expansion units need no power cable.)
*2	The terminal block type relay output units have two terminal blocks (9 pins) made by Phoenix. Use a 2.5 mm 0.10 inch wide screwdriver. Preferably use the specific terminal block screwdriver (part number: AFP0806, Phoenix type code SZS0, 4 x 2.5 mm 0.10 inch) or equivalent.
*3	The connector type relay output units have two connectors made by Nihon Molex (Molex type code 51067-0900, 9 pins). Use the specific Molex connector press-fit tool (part number: AFP0805, Nihon Molex type code 57189-5000) or equivalent.
*4	The transistor output units have a press-fit socket for wire-pressed terminal cable and contacts. Use the press-fit tool (part number: AXY52000FP) for wire-pressed terminal cable.

Return to top

3. Intelligent units

Easy backward compatibility

Use compatibility mode to retain existing ladder programming.
You can use a DIP switch to enable compatibility mode, which allows operation at 12-bit resolution (using program resources).

■PREVIOUS MODEL SUBSTITUTION TABLE

Analog type		Previous model	New model
Input		-	AFP0RAD4
Input		AFP0401	AFP0RAD8
Output	Voltage	AFP04121	AFP0RDA4
Output	Current	AFP04123	AFP0RDA4
Input / Output		AFP0480	AFP0RA21
Input / Output		-	AFP0RA42

Product name	Number of channels	Part No.
FP0R Analog input unit	Input: 4 channels	AFP0RAD4
FP0R Analog input unit	Input: 8 channels	AFP0RAD8
FP0R Analog I/O unit	Input: 2 channels / Output: 1 channel	AFP0RA21
FP0R Analog I/O unit	Input: 4 channels / Output: 2 channels	AFP0RA42
FP0R Analog output unit	Output: 4 channels	AFP0RDA4
FP0 Thermocouple Unit	K, J, T and R thermocouple, Resolution: 0.1 ℃	AFP0420
FP0 Thermocouple Unit	K, J, T and R thermocouple, Resolution: 0.1 ℃	AFP0421

Return to top

4. Link and Communication units[Units in common with FP0]

Product name	Specications	Power supply voltage	Product number	Part number
FP0 CC-Link Slave Unit	This unit is for making the FP0 function as a slave station of the CC-Link. Only one unit can be connected to the furthest right edge of the FP0 expansion bus. Note : Accuracy will change if an FP0 thermocouple unit is used at the same time. For details, please refer to the catalog or to the CC-Link Unit manual.	24 V DC	FP0-CCLS	AFP07943

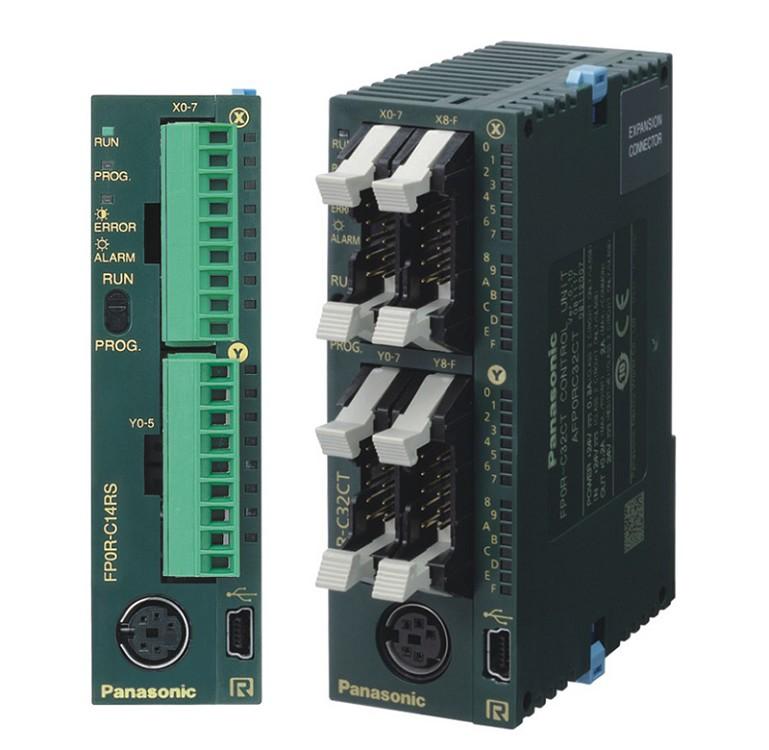

Product Image

Img 1
