3V EL winding wire EL inverter
Product Description
EL inverter
EL basic principle:
EL（electro-luminescent）is a physical phenomenon, that is electro-luminescence phenomenon .First, the voltage on two poles produces an electron field, which promotes the electron hitting the luminescence center, then, it causes the transition, change, and recombination of the electron level to luminescence. El lamp is an advanced electrical component used widely with various advantages made through the above principle.
Technical Data
Operation range: 25~180 V, optimum operating voltage: 115V
Operating frequency range: 50 ~ 5000 Hz; Optimum operating frequency : 400HZ
Consumption power: 3-5 mw/m
Resistance: ∞
Capacitance: 0.4nf/scm2
Laden Voltage: >250V
Half-life: 8000hs
Thickness of the lamp: <0.45mm (with cap layer) <0.25mm (without cap layer)
Working temperature: -35℃～+65℃
Relative humidity: 90%
Heterogeneity of brightness: <±5

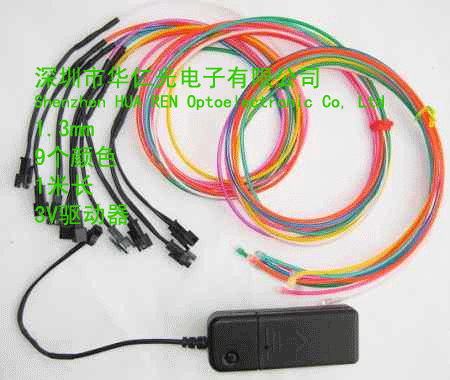

Product Image
Img 1
Img 2
