| Model: | SD1K200P |
|---|---|
| Brand: | SANDI |
| Origin: | - |
| Category: | Electronics & Electricity / Power Supply & Distribution / Switching Power Supply |
| Label: | ac to dc charger , AC to DC converter , power supply |
| Price: |
US $12000
/ pc
|
| Min. Order: | 1 pc |
| Price Terms: | EXW, FOB, CIF |
| Lead Time: | 15 days |
| Standards Certificate: | CE, ISO9001 |
| Last Online:28 Sep, 2025 |

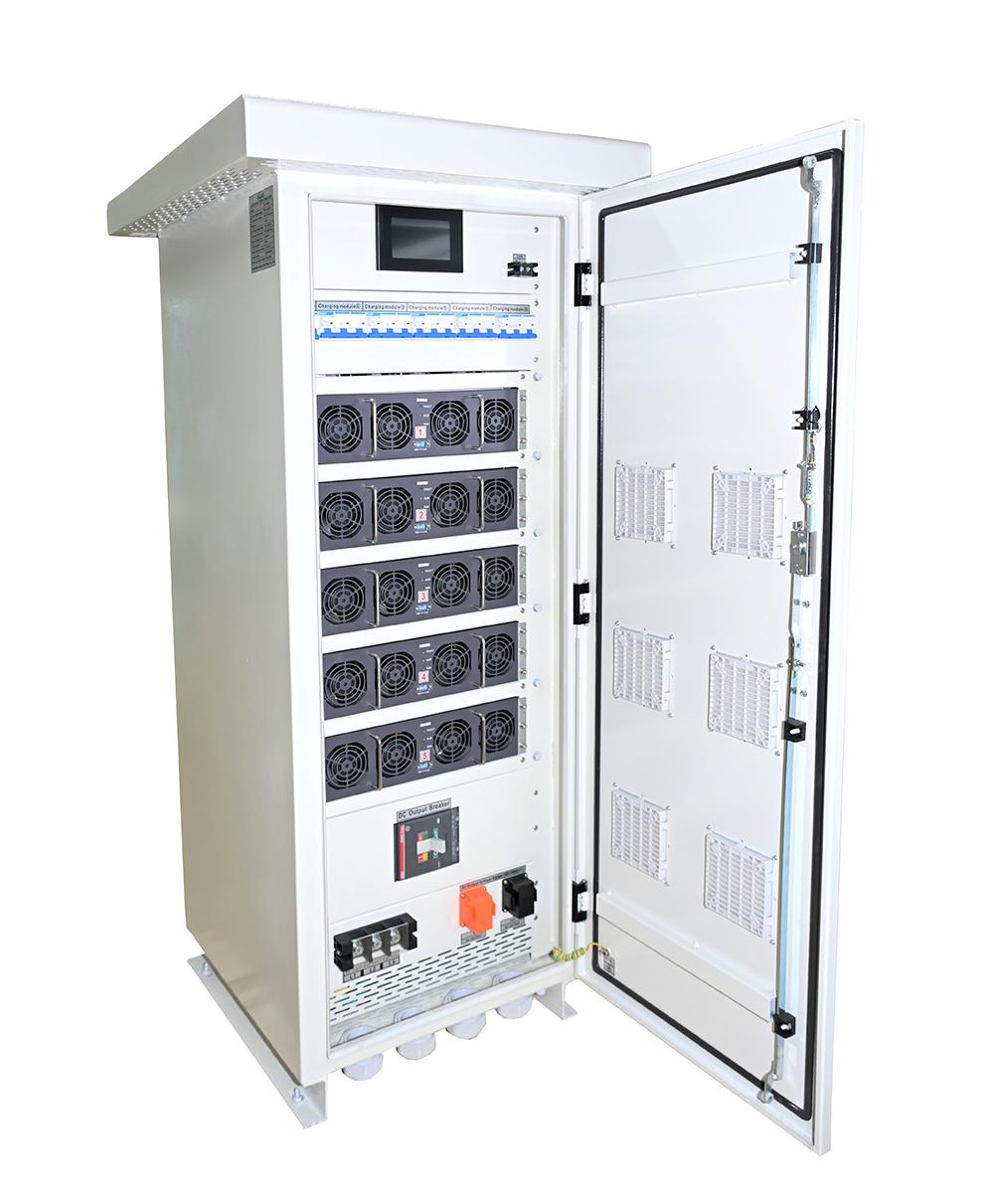

AC to DC Rectifier 100-1000VDC converter 200kW charger power supply
SD1K200P is the AC to DC rectifier charger power supply especially designed for DC power system and batteries fast DC charging stations. The power module enables a maximum DC output power of 200kW and output voltage from 150Vdc to 1000Vdc. Thecharging power supply features high efficiency (≥95%) in full load, low fan noise(<70dB), high power density and high reliability, ultra wide output voltage.
As the core component of rectifier charger power supply is key to the stability and reliability of the whole charging process. As the matter of fact, new energy energy storage tend to have an urgent demand for high-power fast charging. SANDI rectifier charger power supply is well known for high reliability, high efficiency and wide application, which perfectly satisfies the wide-voltage requirement of different battery packs, reduces the potential safety hazard as well as greatly saves the operation and maintenance cost of life cycle.
Main features:
●high frequency transformer isolation
●full hot plug design
●air duct isolation for high protection and high reliability under harsh environment
●ultra wide output range of voltage from 150V to 1000V, workable on most electric vehicles
●constant current for higher output power at low output voltage
●less than 65dB fan audio noise
●intelligent automatic discharging of residual charge
●low standby power consumption of 12W and instant output power off by EPO
ambient temperature from -40ºC to +75ºC
● input voltage from 260V to 530V, allowing normal function under most poor grid conditions
●RS485 communication, max 48 power modules in parallel
●noise setting: Quiet mode minimun 60dB, Denoise mode minimun 65dB, Power mode minimun 75dB
●alarm and protection: 1. over/under voltage leads to automatic shutdown and power module will restart after voltage resumes normal; 2. over/short circuit leads to automatic shotdown and lock, and will restart after power off; 3. over temperature leads to automatic shotdown and power module will restart after temperature resumes normal.
●Flexible application, charging voltage, charging current, charging time, timing charging can be set by LCD screen, easy to operate
SD1K200P Technical specifications
|
Category |
Name |
Parameter |
|
Environmental conditions |
Operation temperature |
-40 ~ +75°C, derating is require when the temperature is above 55°C. |
|
Storage temperature |
-40°C ~ +70°C |
|
|
Relative humidity |
≤95%RH, without condensation |
|
|
Cooling mode |
Forced fan cooling |
|
|
Altitude |
2,000 m a.s.l., derating is require when the altitude is above 2,000m a.s.l. |
|
|
Atmospheric pressure |
79 kPa ~ 106 kPa |
|
|
IP protection level |
IP54 (Indoor/Outdoor) |
|
|
AC input |
Input system |
Three phases + PE |
|
Voltage range |
260Vac ~530Vac |
|
|
Rated voltage |
380Vac |
|
|
Grid frequency |
45Hz~ 65Hz |
|
|
Rated frequency |
50Hz/60Hz |
|
|
DC output |
Voltage range |
150Vdc ~ 1000Vdc |
|
Maximum output power |
200KW |
|
|
Current range |
1~650A (adjustable) |
|
|
Rated current |
267A@748Vdc |
|
|
Steady voltage precision |
<±0.5％（150~1000V, 0～20MHz） |
|
|
Steady current precision |
≤±1% (rated range of 20% ~ 100% for output load) |
|
|
Load regulation rate |
≤±0.5% |
|
|
Grid regulation rate |
≤±0.1% (testing range is 320V~ 450V) |
|
|
Startup overshoot |
≤±3% |
|
|
Power factor and THD |
Power factor |
≥0.90 Full-load output power of @25%~50% |
|
≥0.98 Full-load output power of @50%~100% |
||
|
≥0.99 Full-load output power, input nominal voltage and frequency of @100% |
||
|
THD |
≤5% Full-load output power of @50%~100% |
|
|
Voltage ripple |
Voltage ripple crest factor |
≤1%（150~1000V, 0～20MHz） |
|
Other |
Efficiency |
≥95%, @1000V, full load, under rated three-phase input voltage conditions |
|
Instantaneous inrush current at power on |
＜102A |
|
|
Current sharing |
@10% to 100% load, the module current sharing error is within ±5% of the rated output current. |
|
|
Temperature coefficient (1/℃) |
≤±0.01％ |
|
|
Start time (select the power-on mode through the monitoring module) |
Normal power-on mode: The time delay from AC power-on to module output is ≤3s |
|
|
Output slow start: start time can be set through the monitoring module. Default output start time is 3~8s. |
||
|
Other |
Grounding resistance |
grounding resistance ≤0.1Ω, should be able to withstand current ≥80A |
|
Leakage current |
Leakage current ≤3.5mA |
|
|
Insulation resistance |
Insulation resistance between DC part, AC part and shell, and between AC part and DC part ≥10MΩ |
|
|
Mechanical parameters |
Size |
750mm (W) ×700mm (D) × 1600mm (H) |
|
Weight |
≤240kg |
