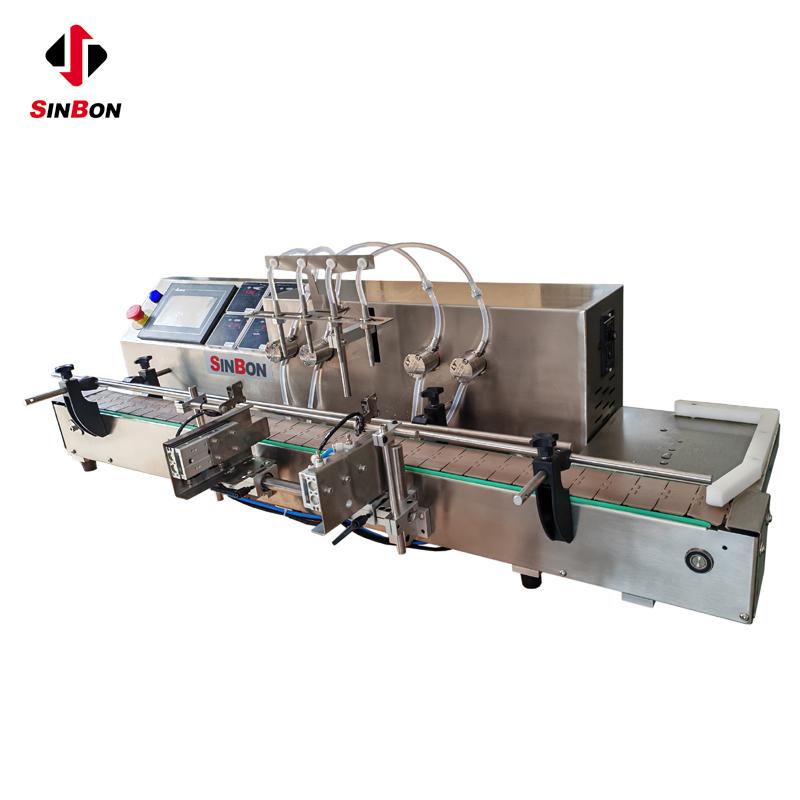

| Model: | YH100-4H |
|---|---|
| Brand: | SINBON |
| Origin: | - |
| Category: | Industrial Supplies / Packaging Related Machine |
| Label: | Filling Machine , liquid filler , auto filler |
| Price: |
¥20000
/ pc
|
| Min. Order: | 1 pc |
| Last Online:22 Jul, 2025 |
Key Features
7-inch touch screen display and PLC system control
Product parameters setting on the touch screen
60 products parameters preset, easy to recall and edit
One-button start, simple operation
With counter statistics function
Magnetic gear pump measures filling volume
Diving filling nozzle is inserted inside of bottle for filling
The left and right position and height of the nozzle are adjustable
Digital speed regulator controls the liquid flow rate
Electronic speed regulator controls the conveyor speed adjustment
With bottle collection platform for temporary bottle storage
Fully automatic quantitative filling, no bottle no filling
Front and rear bottle blocking cylinders are equipped with safety protection cover
The left and right positions of the front and rear bottle blocking cylinders are adjustable
Two one-way valves prevent liquid dripping or backflow
Compatible with multiple size of containers
The main structure based on 2mm thickness stainless steel 304
Chinese and English language operating system
Advantages
Small footprint, Lightweight and easy to move
Multi-head filling with high output and high speed
Fully automatic filling saves manpower
Miniaturized fully automatic filling system
Easy to operate without professional training
Easy to maintain and worry-free after-sales
Application
This machine is suitable for quantitative filling or filling of various easy-flowing liquids such as perfume, essential oil, edible oil, mineral water, potion, soy milk, milk, liquor, vinegar, beverages, etc.
This machine is suitable for quantitative filling of liquids in food, medicine, daily chemicals and other industries
Specification
|
Model No. |
YH100-4H (Desktop) |
|
Filling Range |
5-3000ml |
|
Filing Accuracy |
±0.5-1.0% |
|
Flow Rate |
≤ 3L/min./Pump |
|
Capacity |
100ml: 0-60BPM |
|
Pump Type |
Magnetic Gear Pump |
|
Pump Material |
Pump material is SUS304, Gears are peek |
|
Nozzle Type |
Diving Nozzle Dia. 8mm |
|
Nozzle Quantity |
4pcs |
|
Diving Depth |
≤45mm |
|
Belt Width |
80mm |
|
Conveyor Length |
1400mm |
|
Dimension |
1480(L)x450(W)x370mm(H) |
|
Air source |
0.4-0.7Mpa |
|
Power source |
AC220V; 50Hz;1Phase; 0.3kw |
|
Working Mode |
Auto/Manual |
|
Packing Size |
L1540xW690xH540mm |
|
Weight |
N.W.: 60kg G.W.: 90KG |
Special Material Application
|
Special Material |
Application |
|
Easy Flow liquid like water |
Yes |
|
Foaming Liquid |
Yes |
|
Corrosive Liquid |
Yes (Except for strong acid and strong alkali liquids) |
|
Semi-fluid |
No (choose other model) |
|
Liquid with Particles |
No (choose other model) |
Remarks: Special material maybe need change machine parts
