DC Inverter Swimming Pool Heat Pump For Domestic Use

Model:-
Brand:Canova
Origin:Made In China
Category:Industrial Supplies / Environment Protection Facilities / Energy Saving
Label:pool heat pump , domestic pool heater , DC inverter pool
Price: -
Min. Order:2 pc
Inquire Now

Member Information

Detail

Guangzhou Canova Heating & Refrigeration Equipment Co., Ltd.

Free MemberGuang Dong - China
Last Online:24 Jul, 2025

View all products. (12)

Product Description



Model  CNV-5YC CNV-7YC CNV-9YC CNV-11YC CNV-15YC CNV-18YC CNV-21YC CNV-25YC CNV-21YC CNV-25YC CNV-28YC
1. DC inverter technology.
2. Higher efficiency than normal on/off type.
3. Wide range of compressor frequency.
4. Plastic ABS cabinet with excellent weather resistance.
5. Eco friendly refrigerant: R32.
Power Supply 220-240V~/ 50Hz 380-415V/3N~/50Hz
Performance Condition: Ambient Temp.:  (DB/WB) 27°C/24.3°C; Water Inlet/Outlet Temp.: 26°C/28°C.
Heating Capacity Range (kW) 1.5~5.52 1.5~7.21 1.8~9.48 2.8~11.51 3.48~15.3 4.34~18.1 4.72~21.21 5.05~25.28 4.72~21.21 5.05~25.28 5.4~28.06
Consumed Power Range (kW) 0.09~0.82 0.09~1.09 0.11~1.44 0.17~1.74 0.22~2.35 0.27~2.81 0.29~3.26 0.31~3.89 0.29~3.26 0.31~3.89 0.33~4.32
COP Range 16.7~6.7 16.7~6.6 16.4~6.6 16.5~6.6 15.9~6.5 16.1~6.4 16.2~6.5 16.2~6.5 16.2~6.5 16.2~6.5 16.3~6.51
Boost Mode Heating Capacity (kW) 5.52 7.21 9.48 11.51 15.3 18.1 21.21 25.28 21.21 25.28 28.06
COP 6.7 6.6 6.6 6.6 6.5 6.4 6.5 6.5 6.5 6.5 6.51
Smart Mode Heating Capacity (kW) 4.5 5.8 7.8 9.1 11.55 14.01 17 20.4 17 20.4 22.61
COP 8.91 9.03 9.02 9.32 9.18 9 9.35 8.9 9.35 8.9 8.92
Silent Mode Heating Capacity (kW) 2.1 2.8 3.5 5.5 7.35 8.7 10.2 12.3 10.2 12.3 13.91
COP 14.1 14.2 14.2 13.8 13.6 13.2 13.1 13.6 13.1 13.6 13.5
Performance Condition: Ambient Temp.:  (DB/WB) 15°C/12°C; Water Inlet Temp.: 26°C.
Heating Capacity (kW) 1.11~3.91 1.3~5.42 1.51~7.89 2.2~8.21 2.96~11.14 3.44~13.35 3.51- 14.21 3.81- 17.08 3.51- 14.21 3.81- 17.08 4.04~18.49
Consumed Power (kW) 0.13~0.75 0.16~1.06 0.18~1.52 0.27~1.61 0.36~2.19 0.41~2.61 0.43~2.78 0.48~3.35 0.43~2.78 0.48~3.35 0.49~3.56
COP 8.4~5.2 8.1~5.1 8.3~5.2 8.1~5.1 8.3~5.1 8.3~5.1 8.1~5.1 8~5.1 8.1~5.1 8~5.1 8.2~5.2
Boost Mode Heating Capacity (kW) 3.91 5.42 7.89 8.21 11.14 13.35 14.21 17.08 14.21 17.08 18.49
COP 5.2 5.1 5.2 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.2
Smart Mode Heating Capacity (kW) 3.1 4.3 6.1 6.58 8.65 10.55 11.2 13.5 11.2 13.5 14.63
COP 6.21 6.23 6.22 6.19 6.2 6.16 6.2 6.21 6.2 6.21 6.18
Silent Mode Heating Capacity (kW) 2.2 2.4 2.5 4.37 5.55 6.72 7.5 8.3 7.5 8.3 9.31
COP 7.59 7.55 7.58 7.53 7.55 7.54 7.5 7.52 7.5 7.52 7.53
Performance Condition: Ambient Temp.:  (DB/WB) 35°C/-; Water Inlet/Outlet Temp.: 30°C/28°C.
Cooling Capacity (kW) 1.51~3.22 1.78~3.75 1.92~5.13 2.48~6.33 3.41~8 4.15~9.88 4.4 - 10.12 4.6 - 11.5 4.4 - 10.12 4.6 - 11.5 4.65~13.6
Consumed Power (kW) 0.19~0.67 0.22~0.78 0.24~1.06 0.31~1.3 0.43~1.65 0.53~2.03 0.57~2.08 0.59~2.38 0.57~2.08 0.59~2.38 0.59~2.8
EER 7.95~4.81 7.92~4.78 7.86~4.85 7.85~4.88 7.91~4.85 7.9~4.87 7.75~4.86 7.81~4.88 7.75~4.86 7.81~4.88 7.82~4.86
Boost Mode Heating Capacity (kW) 3.22 3.75 5.13 6.33 8 9.88 10.12 11.5 10.12 11.5 13.6
COP 4.81 4.78 4.85 4.88 4.85 4.87 4.86 4.88 4.86 4.88 4.86
Smart Mode Heating Capacity (kW) 2.3 2.92 3.5 4.89 6.45 7.77 8.9 9.8 8.9 9.8 10.55
COP 6.1 5.98 5.95 5.86 5.88 5.74 5.69 5.62 5.69 5.62 5.65
Silent Mode Heating Capacity (kW) 1.8 2.18 2.4 3.12 4.15 4.88 5.55 5.86 5.55 5.86 6.55
COP 7.28 7.31 7.28 7.16 7.15 7.12 7.11 7.12 7.11 7.12 7.15
Max. Power Input (kW) 1.31 1.61 1.75 2.3 3.2 3.9 4.1 4.5 4.1 4.5 5.4
Max. Current (A) 5.95 7.32 7.96 10.5 14.5 17.7 18.8 19.5 7.3 8.5 10.2
Advised Pool Volume (m³) 10~20 15~30 20~40 25~50 30~60 35~70 45~80 55~90 45~80 55~90 65~100
Running Ambient Temp. Range (℃) -10~43
Heating Temperature Range (℃) 15~40
Cooling Temperature Range (℃) 8~28
Refrigerant R32
Compressor Type DC Inverter Rotary
Compressor Brand GMCC/Mitsubishi/Panasonic
Throttling device Electronic expansion valve
4-Way Valve Yes
Fan Quantity 1
Heat Exchanger Titanium in PVC
Casing Material ABS Plastic+ Galvanized Sheet
Water Pipe Connection (mm) 50
Sound Pressure 1m dB (A) 30~43 32~45 33~47 33~47 34~48 34~48 35~50 35~52 35~50 35~52 36~52
Water Flow Volume (m³/h) 2.4 3.1 4.1 4.9 6.6 7.7 9.1 10.8 9.1 10.8 12
Water Pressure Drop (kpa) 15.00  17.00  18.00  15.00  18.00  23.00  32.00  35.00  32.00  35.00  38.00
Electric Shock Proof Ⅰ
Water Proof Level IPX4
Net weight(kg) 41 45 47 53 53 62 82 87 82 87 92
Unit Dimensions(L*W*H) (mm) 910×355×620 1000×400×660 1130×455×760



Features:

· Mitsubishi DC inverter compressor

· Titanium tube in PVC shell heat exchanger

· Compact structure

· Intelligent defrosting

· Stable running,economic&durable

· Easy installation&operation

· Cooling in summer&heating in winter

Model  CNV-5YC CNV-7YC CNV-9YC CNV-11YC CNV-15YC CNV-18YC CNV-21YC CNV-25YC CNV-21YC CNV-25YC CNV-28YC
1. DC inverter technology.
2. Higher efficiency than normal on/off type.
3. Wide range of compressor frequency.
4. Plastic ABS cabinet with excellent weather resistance.
5. Eco friendly refrigerant: R32.
Power Supply 220-240V~/ 50Hz 380-415V/3N~/50Hz
Performance Condition: Ambient Temp.:  (DB/WB) 27°C/24.3°C; Water Inlet/Outlet Temp.: 26°C/28°C.
Heating Capacity Range (kW) 1.5~5.52 1.5~7.21 1.8~9.48 2.8~11.51 3.48~15.3 4.34~18.1 4.72~21.21 5.05~25.28 4.72~21.21 5.05~25.28 5.4~28.06
Consumed Power Range (kW) 0.09~0.82 0.09~1.09 0.11~1.44 0.17~1.74 0.22~2.35 0.27~2.81 0.29~3.26 0.31~3.89 0.29~3.26 0.31~3.89 0.33~4.32
COP Range 16.7~6.7 16.7~6.6 16.4~6.6 16.5~6.6 15.9~6.5 16.1~6.4 16.2~6.5 16.2~6.5 16.2~6.5 16.2~6.5 16.3~6.51
Boost Mode Heating Capacity (kW) 5.52 7.21 9.48 11.51 15.3 18.1 21.21 25.28 21.21 25.28 28.06
COP 6.7 6.6 6.6 6.6 6.5 6.4 6.5 6.5 6.5 6.5 6.51
Smart Mode Heating Capacity (kW) 4.5 5.8 7.8 9.1 11.55 14.01 17 20.4 17 20.4 22.61
COP 8.91 9.03 9.02 9.32 9.18 9 9.35 8.9 9.35 8.9 8.92
Silent Mode Heating Capacity (kW) 2.1 2.8 3.5 5.5 7.35 8.7 10.2 12.3 10.2 12.3 13.91
COP

Product Image

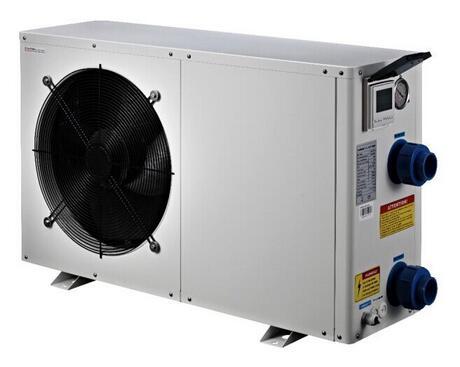

DC Inverter Swimming Pool Heat Pump For Domestic Use 1
Img 1

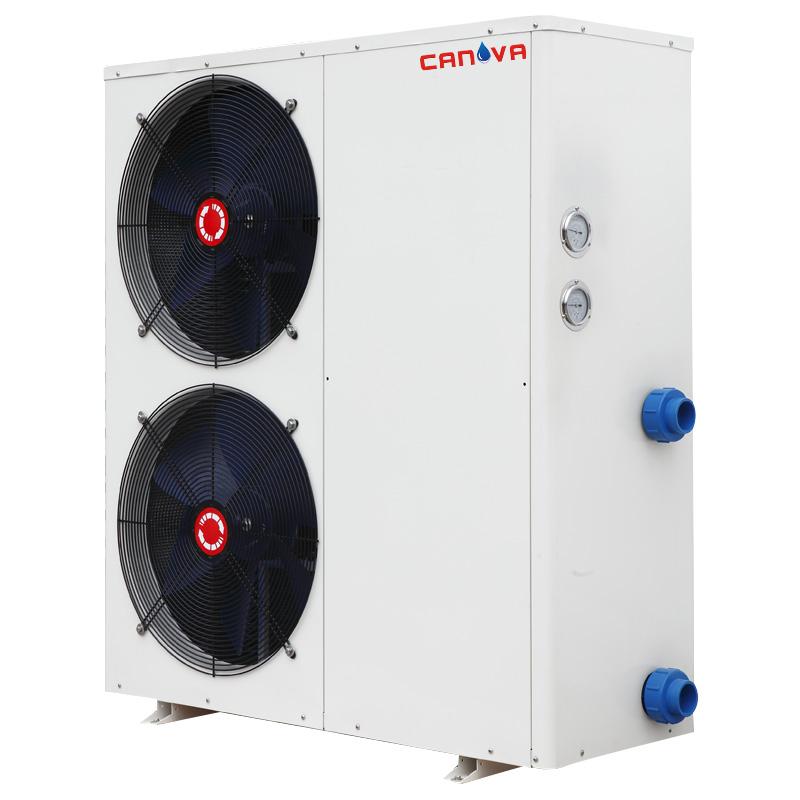

DC Inverter Swimming Pool Heat Pump For Domestic Use 2
