| Model: | BY-GPT232 |
|---|---|
| Brand: | Beyondoor |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Physical Measuring Meter |
| Label: | Pressure Transmitter , Pressure sensors |
| Price: |
-
|
| Min. Order: | - |
| Last Online:01 Jul, 2025 |
Description: BY-GPT232 series pressure transmitters have the characteristics of high quality, high stability, small size, low weight, compact structure, low cost and volume-production. The product is made of stainless steel and well-known brand sensor. The special transmitter converting circuit can adjust the zero-value and the full range expediently. It also has the intrinsically safe certificate, the explosion-proof certificate and the CE certificate.
Applications: widely used to measure pressure such as occasion of compressor, Auto, air-condition etc.
Features: Ceramic resistance sensor; Ratio voltage output,4~20mA output; Very small size; Over-voltage protected; Price sensitive industrial applications; Compressor applications

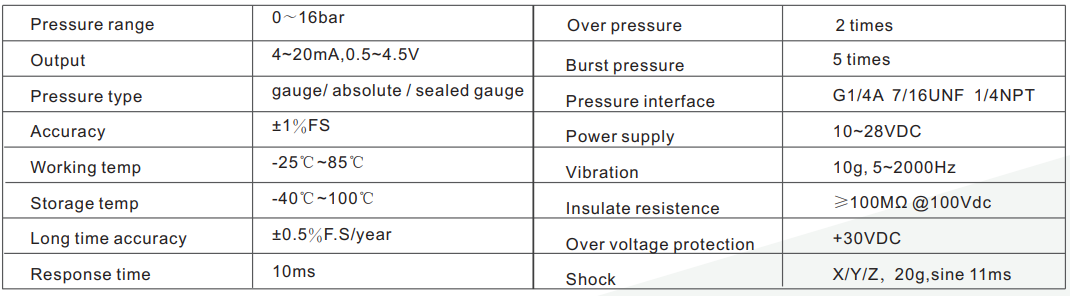

Characteristics:

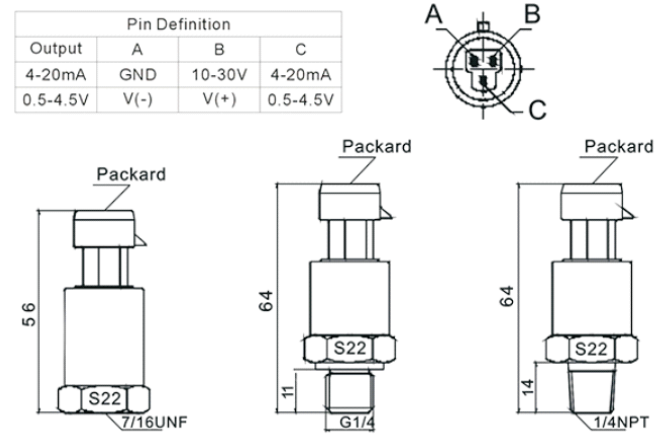

Product Drawing:

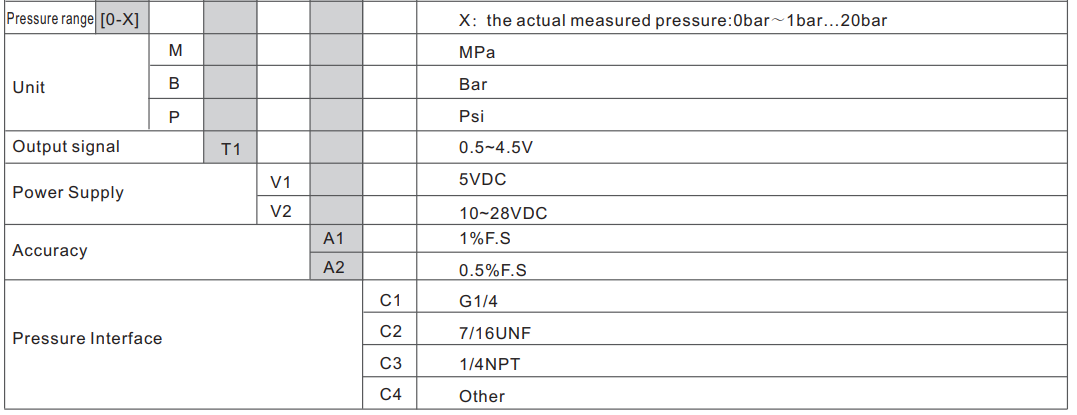

Type Select:
For example: complete P/N: BY-GPT232/0-2Bar/P/ T1/V2/A2/C1
