| Model: | LL-FLX-100W-MX |
|---|---|
| Brand: | Lowcled |
| Origin: | Made In China |
| Category: | Consumer Electronics & Lighting / Lighting / LED Lighting |
| Label: | led flood light , led stadium light , LED Sports light |
| Price: |
US $1
/ pc
|
| Min. Order: | 5 pc |
| Last Online:21 Jun, 2025 |
Features:
| Model | LL-FLX-100W-MX | LL-FLX-150W-MX | LL-FLX-200W-MX | LL-FLX-240W-MX | LL-FLX-300W-MX | LL-FLX-400W-MX | LL-FLX-500W-MX | LL-FLX-600W-MX |
| Wattage | 100W | 150W | 200W | 240W | 300W | 400W | 500W | 600W |
| Input Voltage | 100-277V/277-480V/100-347V,50 / 60 Hz | |||||||
| Luminous Flux | 14000lm-18000lm | 21000lm-27000lm | 30000lm-36000lm | 33600lm-43200lm | 42000lm-54000lm | 60000lm-72000lm | 70000lm-80000lm | 84000lm-108000lm |
| Color Temperature | 3000K/ 4000K/ 5000K/5700K/ 6500K | |||||||
| Beam Angle | Type II / III / IV / V | Type III | Type III | Type III / 15º / 30º / 45º / 60º / 90º | ||||
| CRI | Ra70 (Ra80 or Ra90 optional) | |||||||
| PF | ≥0.95 | |||||||
| Operation Temperature | -40°C to + 50°C (-40°F to 122°F) | |||||||
| Net Weigh(kg/lbs) | 2.45 /5.4 | 2.95 /6.5 | 4.5 / 9.9 | 5.0 / 11.0 | 7.3 / 16.1 | 12.5 / 27.6 | ||
| GrossWeight (kg/lbs) | 2.65 /5.8 | 3.15 /6.9 | 5.5 / 12.1 | 6.0 / 13.2 | 8.3 / 18.3 | 14.5 / 32.0 | ||
| Size Of Box(mm/in) | 345*320*70 / 13.6*12.6*2.8 | 460*440*115 / 18.1*17.3*4.5 | 525*460*95 / 20.7*18.1*3.7 | 600*510*100 / 20.7*18.1*3.7 | ||||
| QTY/CTN | 6 | 1 | 1 | 1 | ||||
| GW/CTN | 17.9 / 39.5 | 20.9 / 46.1 | 5.5 / 12.1 | 6.0 / 13.2 | 8.3 / 18.3 | 14.5 / 32.0 | ||
| Size Of CTN(mm/in) | 355*330*475 / 14.0*13.0*18.7 | 460*440*115 / 18.1*17.3*4.5 | 525*460*95 / 20.7*18.1*3.7 | 600*510*100 / 20.7*18.1*3.7 | ||||
uLight Efficiency: 140lm/W-180lm/W;
uHeavy duty die cast aluminum housing with ample heat sinking;
uHigh bright SMD 2835/3030,LM80 listed;
uOptics of Type II / III / IV / V / 15º / 30º / 45º / 60º / 90º available on request;
uDie-casting aluminum with polyester powder coat finish,Excellent thermal management design;
uEnergy savings, no UV and IR radiations, emits low heat;
uIP66/IK08/4KV rating for outdoor usage;

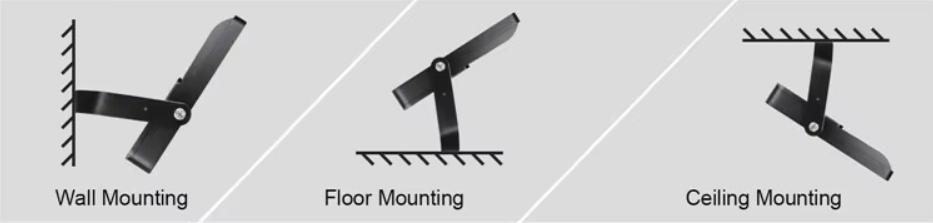

u270degree rotatable bracket;
uWith breathing valve,can clean up the moisture inside of lamp and keep balance of pressure
difference between lamp inside and outside;
u0-10Vor 1-10V dimming for low power consumption;
uETL/cETL/SAA/DLC/C-TICK/FCC/CE/RoHS approval;
uStandard cable: 0.5M,1M/1.5M/2M can be customized;
u7 years warranty.
Application:
1. Tunnel, Subway, Underground Lighting;
2. Gymnasium, Sports Stadium Lighting;
3.Building, Billboard Lighting;
4.Gas Station, Garage Lighting;
5. Park, Garden Lighting;
6. Workshop, Factory Lighting;
7.Warehouse, Storage Lighting;
8. Yard, Square Lighting;
9.Road,Highway Lighting;
10.Station,Dock Lighting etc
11. Directly replace the traditional HID light to save energy
Trade terms:
| Price Terms: | EXW Shenzhen factory |
|---|---|
| Payment Terms: | T/T or LC at sight |
| Lead Time: | 7-10days after receiving payment |
