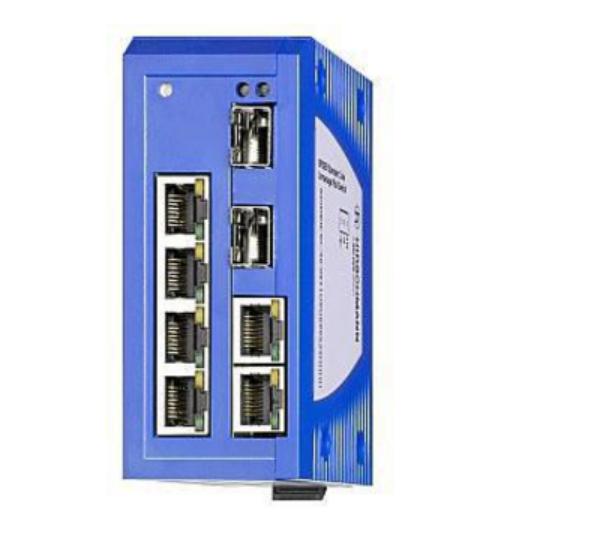

Type SSL40-6TX/2SFP (Product Code: SPIDER-SL-40-06T1O6O699SY9HHHHH) describes a unmanaged, industrial Ethernet rail switch, fanless design, store and forward switching mode, full Gigabit Ethernet part number 942132015, port type and quantity 6 x 10/100/1000BASE-T, TP cable, RJ45 socket, automatic crossover, automatic negotiation, automatic polarity, 2 x 100/1000MBit/s SFP more interface power/signal contacts, 1 x plug-in terminal block, 3-pin network scale - cable length twisted pair (TP) 0-100m single-mode fiber (SM) 9/125 µ m 0-20 km, 0-11 dB link budget (using M-SFP-LX/LC) multimode fiber (MM) 50/125 µ m 0-550m, 0-7.5 dB link budget (using M-SFP-SX/LC) multimode fiber (MM) 62.5/125 µ m 0-275m, 0-7.5 dB link budget, 850 nm (using M-SFP-SX/LC) network scale - cascading line -/star The maximum current consumption of any power supply required by the Type Tuopu is 24 V DC. The maximum energy consumption is achieved with a working voltage of 555 milliampere hours and a direct current of 12/24 volts (9.6-32 volts DC). 13.3 watts power output in BTU (IT)/h 45.4 diagnostic function diagnostic function LED (power, link status, data, data rate) environmental conditions average time between failures 1.088.487 hours (Telcordia) operating temperature 0-+50 ° C storage/transportation temperature -40-+70 ° C relative humidity (non condensing) 10-95% mechanical structure dimensions (width x height x depth) 45 x 110 x 88 millimeters (excluding terminal blocks) weight 250 grams installation DIN rail protection level IP30 plastic mechanical stability IEC 60068-2-6 vibration 3.5 millimeters, 5-8.4 hertz, 10 cycles, 1 octave band/minute 1 g, 8.4-150 hertz, 10 cycles, 1 octave IEC 60068-2-27 impact 15 g, 11 ms duration, 18 impacts EMC anti-interference EN 61000-4-2 electrostatic discharge (ESD) 4 kV contact discharge, 8 KV air discharge EN 61000-4-3 electromagnetic field 10V/m (80-3000 MHz) EN 61000-4-4 fast transient (burst) 2kV power line; 4kV data line (SL-40-08T only has 2kV data line) EN 61000-4-5 surge voltage power line: 2kV (line/ground), 1kV (line/line); 1kV data cable EN 61000-4-6 Conducted immunity 10V (150 kHz -80 MHz) EMC emission immunity EN 55022 EN 55032 A-class FCC CFR47 Part 15 FCC 47CFR Part 15, A-class approved basic standards CE, FCC, EN61131 Industrial control equipment safety cUL 61010-1/61010-2-201 Supply scope and accessories
