DKF810FK Wireless Keypad
Certification: Meet CE certification

• Supports encrypted contactless key fob
• Integrated touch sensor button
• FSK Two-way wireless communication
• AES data encryption technology
• Remote access control
• Invisible coercion password alarm
• 3-year long battery life

This product must be used with alarm panel LHD8100

Wireless Control Keyboard

The control keypad allows to use digital passwords to arm, disarm the control panel LHD8100, and activate the duress password in an emergency to issue remote alarm notifications.

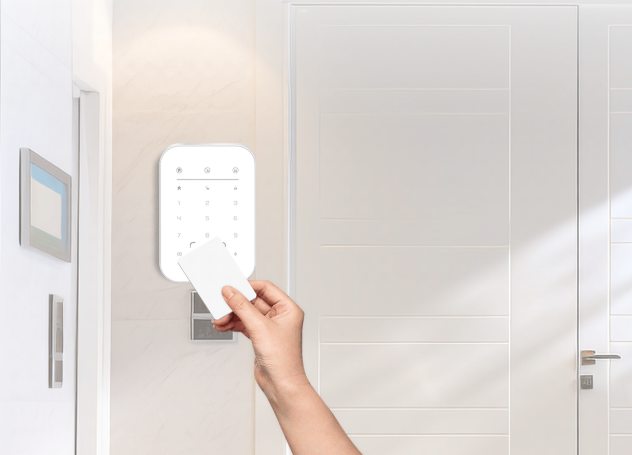

Support Encrypted Contactless Key Fob

The control keypad supports encrypted contactless key fobs, which can be swiped to enter safe mode and set up home arming, arm away, disarming, and other modes to enhance user experience.

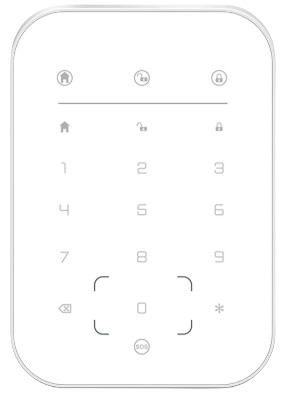

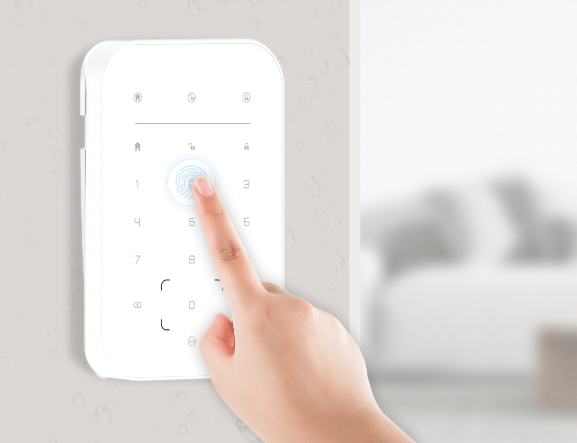

Integrated Touch Sensor Buttons

It adopts an integrated touch keypad design, which is beautiful and fashionable in appearance, has strong waterproof and anti-fouling capabilities, will not wear and tear, and has high sensitivity, high stability, and high reliability.

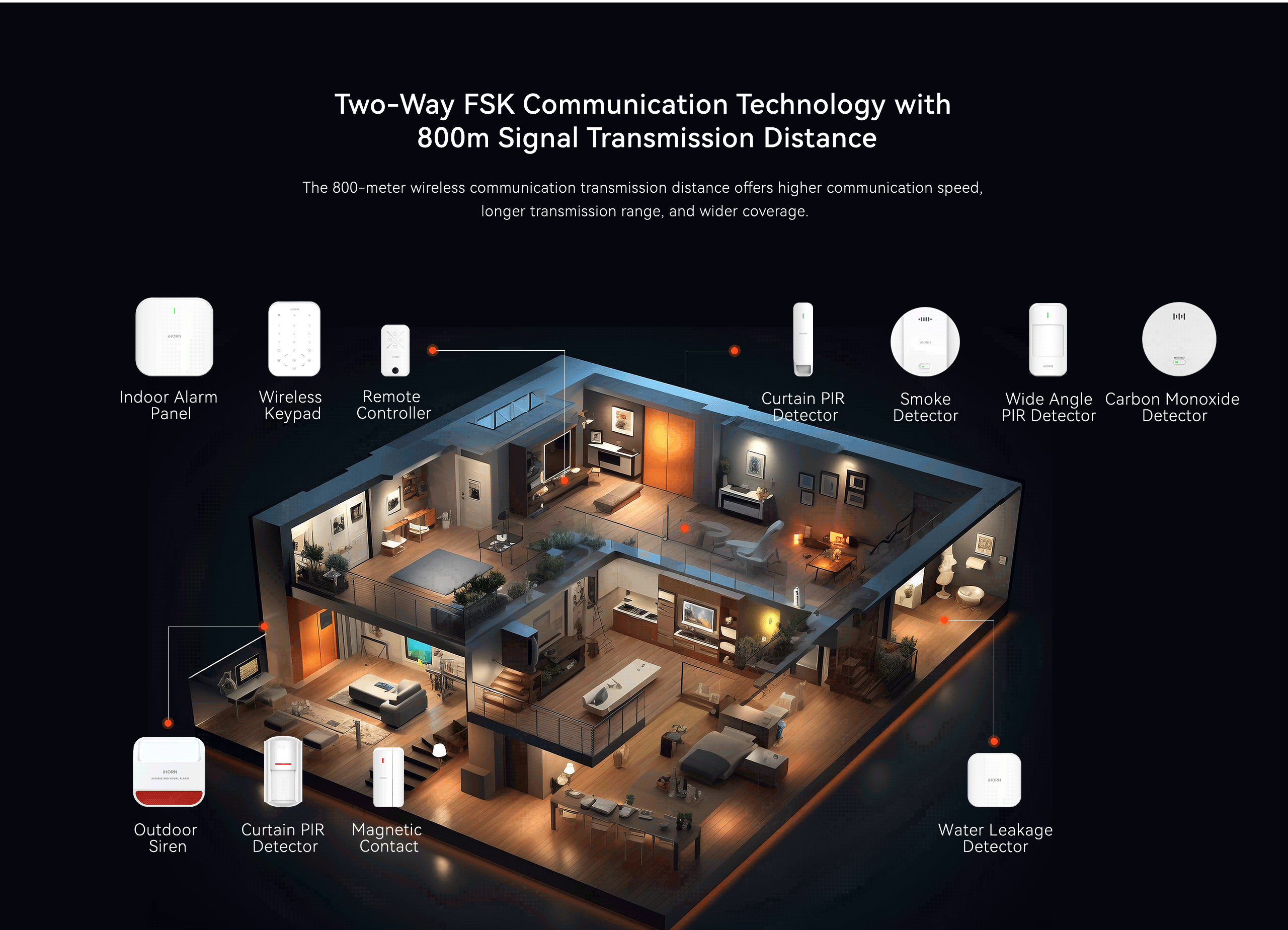

Two-Way FSK Communication Technology with 800m Signal Transmission Distance

The 800-meter wireless communication transmission distance offers higher communication speed, longer transmission range, and wider coverage.

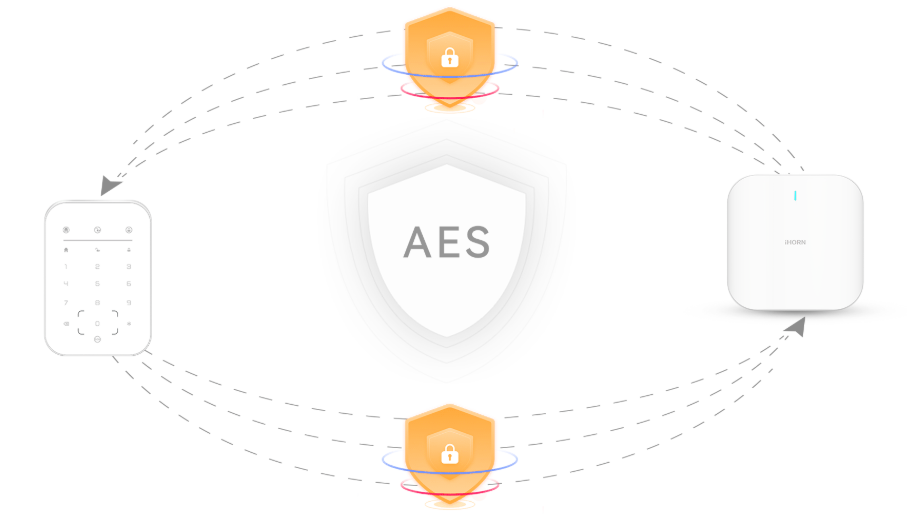

AES Data Encryption Technology

AES encrypted communication technology protects data security.

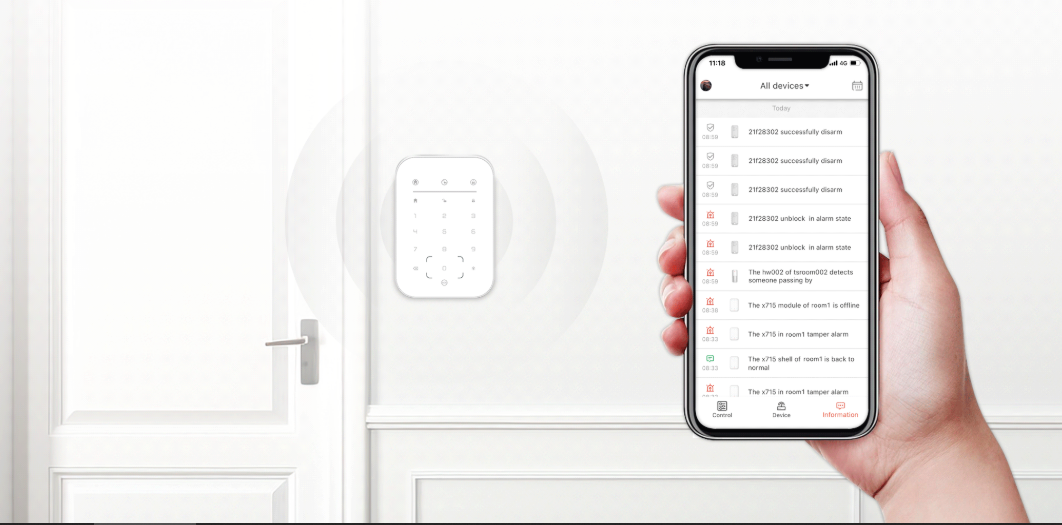

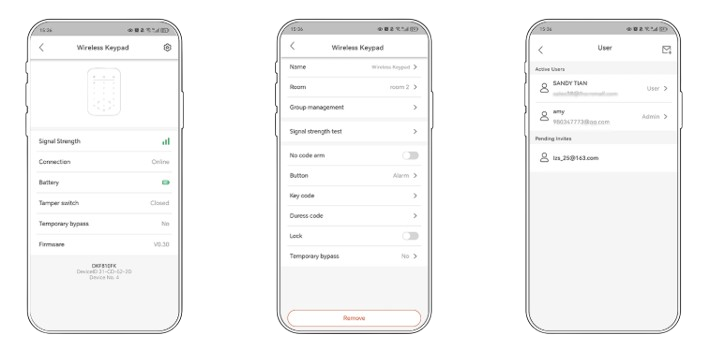

Support Remote Access Control

For users who are not registered in the system, the operation permissions are supported, such as remote creation, editing, deletion, deactivation of access codes, making identity management more personalized and refined.

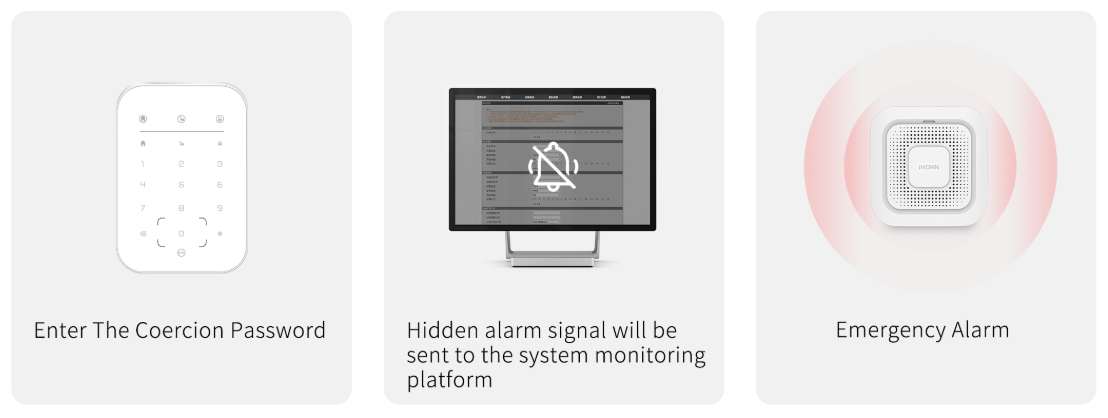

Invisible Coercion Password Warning

When the user is in danger, he can enter the coercion password. The alarm, application, and keyboard instructions will not be disclosed to the user, but the alarm signal will be immediately transmitted to the control panel, and the hidden alarm signal will be sent to the system monitoring platform at the same time to ensure personal safety at most.

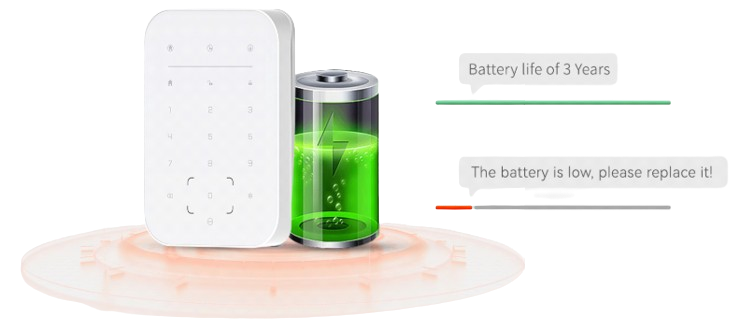

Super Long Battery life

When the keypad is used normally and the battery is not replaced, it has a long battery life of 3 years. If the battery power is low, a battery replacement alarm will be sent.

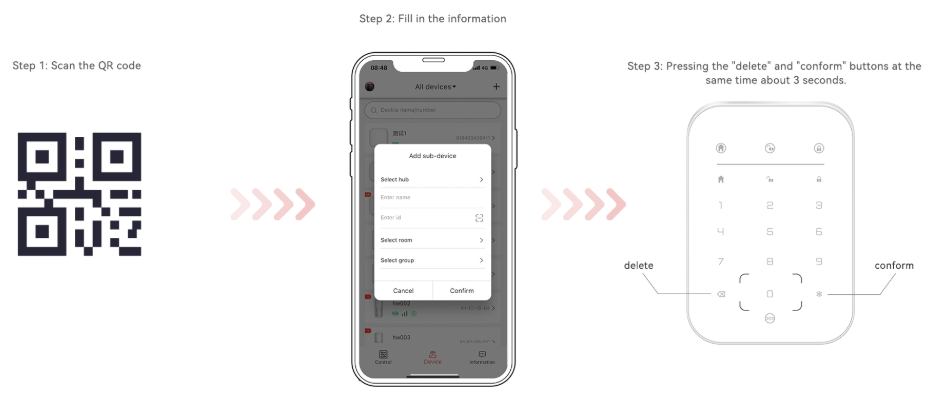

Easy to Connect

Scan the QR code on the product through the APP, fill in and confirm the information, and press the "delete" and "confirm" buttons at the same time for 3 seconds to connect to the alarm panel.

Applications

The product is suitable for installation in houses, apartments, villas, stores, restaurants, office buildings, and so on.

Power Supply: Battery: DC3V, 4xAA
Wireless Protocol: FSK with Two-Way Communication
Radio Frequency: 868MHz/433MHz
Transmission Range: Up to 800 meters outdoor
Function: Arm/ Stay Arm/ Disarm, SOS
Key Fobs: Support, 50 Fobs Maximum
Protection Against Code Guessing: Support
Duress Code: Support
Backlight Keypad: Support
Sound Indication: Support, 3 Level Adjustable
Tamper Alarm: Support
Battery Life: 3 Years (10 Times Triggered Per Day)
Installation Method: Wall-mount with 3M or Screws
Operating Temperature/Humidity: -10~55°C / ≤95%RH
Dimensions: 167×117×23mm
Compliance Standard: CE
