| Model: | M-100 |
|---|---|
| Brand: | Metals Kingdom Industry Limited |
| Origin: | Made In China |
| Category: | Industrial Supplies / Tools / Electric Power Tools |
| Label: | valve grinding , lapping machine , valve grinder |
| Price: |
US $2500
/ pc
|
| Min. Order: | 1 pc |
| Last Online:28 Apr, 2025 |

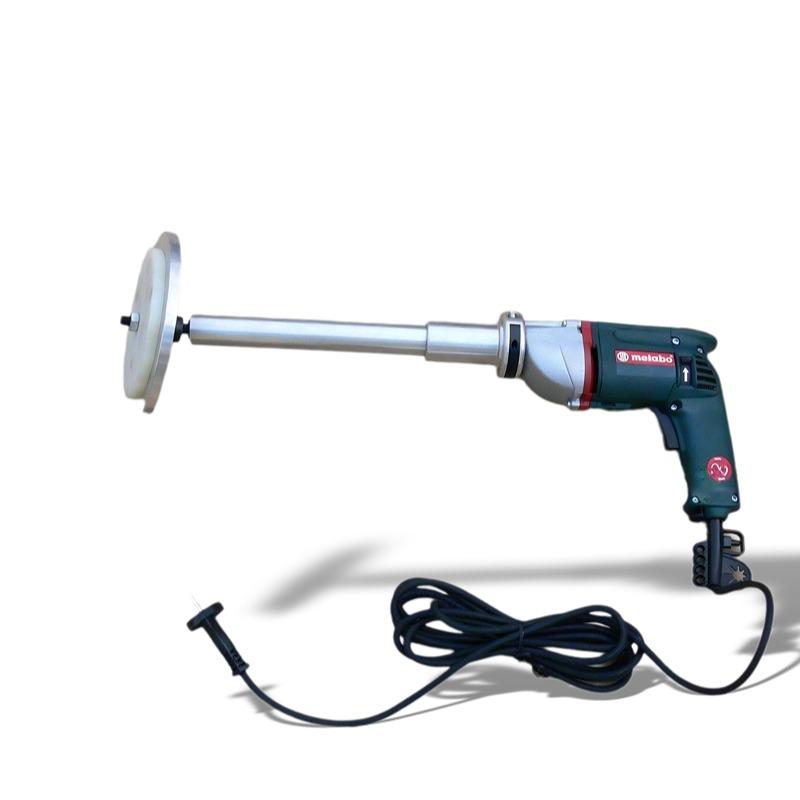

Portable Multi-function Valve Grinding Machine
●Wide application which could grinding gate valve and plane valve(valve seat and valve core)
●Adjustable Grinding disc take planetary transmission way, grinding claws keep rotation while the grinding disc turning, grinding surface as orthogonal reticular pattern, sealing surface grinding in good quality and high efficiency
2.M-100 Valve Grinder Technical Parameter
Grinding scope:
Cone valve: Φ20~65,angle 60°,75°,90°
Flat cone-valve: Φ20-165
Gate valve: Φ20-150
Motor power:750W
Rated Voltages: 220V
Allowed adjustable length: L≤250mm
Operating weight: 27kg
|
Item |
M-200 |
M-300 |
M-600 |
|
Grinding Range（mm） |
Φ80-200 |
Φ80-300 |
Φ200-600 |
|
Voltage（V） |
220 |
220 |
220 |
|
Power（W） |
1300 |
1300 |
1300 |
|
Frequency (HZ) |
50 |
50 |
50 |
|
Min distance of valve seats(mm) |
45 |
45 |
70 |
|
Max Grinding Depth（mm） |
600 |
650 |
900 |
|
Gross Weight（kg） |
70 |
75 | 80 |
