Product Information:

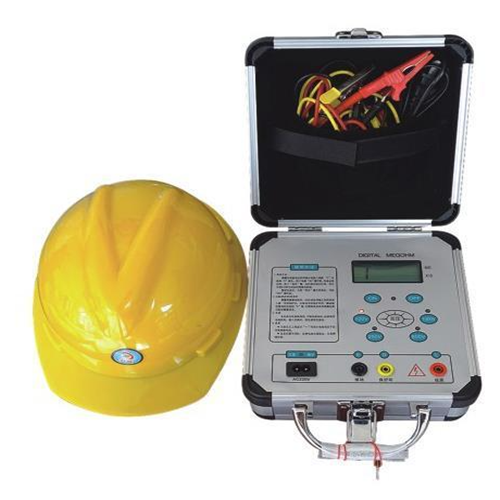

Safety hat anti-static performance tester according to the new national standard GB/T 2812-2006 "Safety hat test Method", GB/T 2811-2019 "Safety hat" development, used to test the anti-static requirements of safety hats, engineering plastics, helmets and other anti-static performance, high degree of automation, easy to operate, Widely used in safety helmet production enterprises and quality inspection units.
Main features:
1, the range can be automatically converted, simple operation panel, large screen display, easy measurement
2, wide range of test resistance, reliable test accuracy
3, integrated portable design, lighter weight, easy to carry
Main parameters:
Range: 1×10^4Ω —— 2×10^ 10ω
Indication error: ±1%
Test voltage: 100VDC, 250V, 500V, 1000V optional
Electrode length: 100mm±1mm, width: 1mm±0.1mm, the material is metal foil, the electrodes are placed parallel
Trigger: internal trigger, manual trigger, external trigger
Resistance value of conductive glue: <1kΩ
