Description

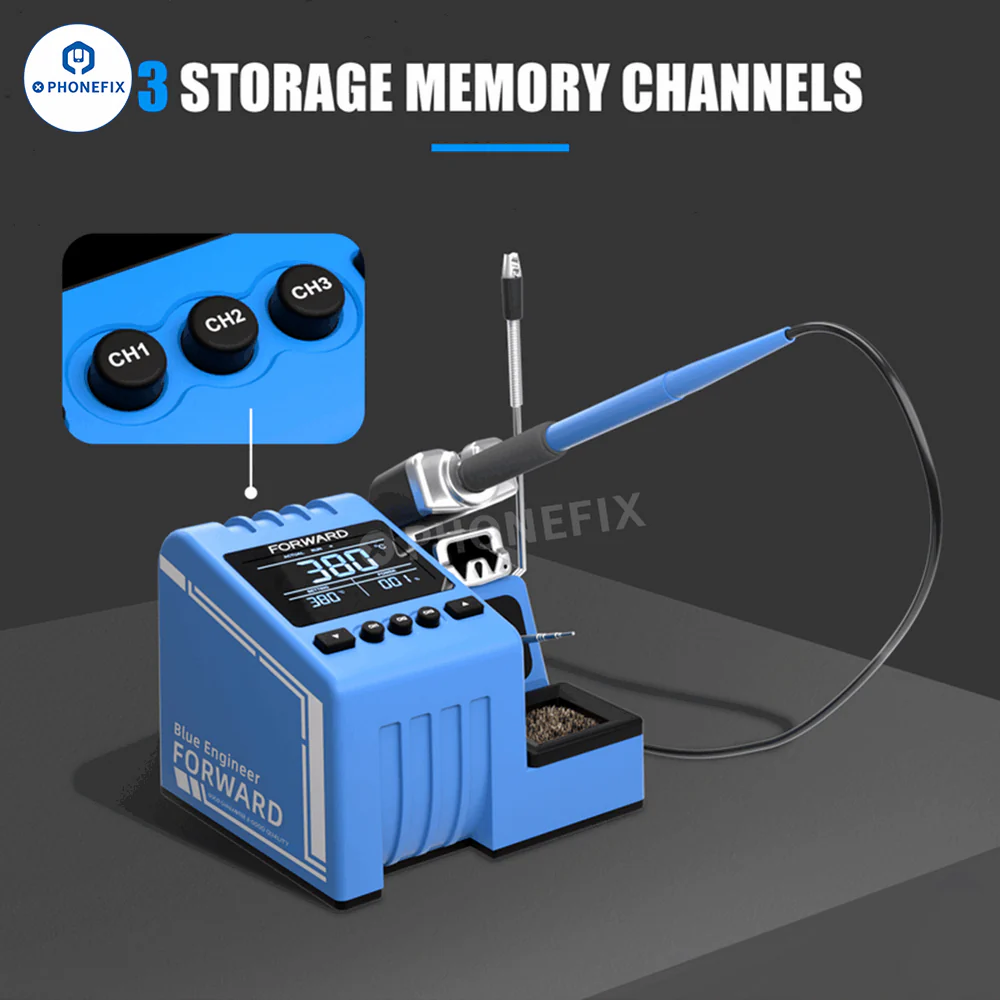

FORWARD BE01 80W Blue Engineer Soldering Station with C210 iron tips for mobile phone motherboard and electronic BGA welding repair. High-precision temperature control, equipped with toroidal transformer, fast thermal compensation 3 memory channels, built-in heat sink supports continuous operation, ensuring welding quality and stability.

Features:
1. Equipped with imported 210 heating core, with overload protection function to ensure safe use.
2. Fast thermal compensation supports continuous work to ensure welding quality and stability.
3. Equipped with toroidal transformer, low heat generation, supports continuous work, good stability and long service life.
4. Fast heat dissipation, built-in heat dissipation system. The soldering iron dissipates heat quickly, only takes 2 seconds.
5. Tempered glass screen High aluminum Scratch and high temperature resistance.
6. Durable, high temperature resistant silicone wire and tube.
7. Comfortable grip and soft touch, the body surface is made of TPU material.

Product Parameters:
Heating core model: 210
Power consumption: 80W
Output voltage: AC12~16V
Temperature control range: 200℃-450℃
Constant temperature accuracy: ±3℃
Ground resistance: <2 mΩ
Product weight: 2KG
Product size: 155x145x120MM
Packaging weight: 3.4KG
Packaging size: 250x260x190MM
